Bogner Goldfinger 45 Watt Tube Guitar Amplifier Head

People will have to take their time to dial this amp in” Reinhold Bogner replied with raised voice, “it’s not just an amp, it’s a Guitar System!”

The Goldfinger is based around the rich harmonic textures of the iconic 6V6 tube. Known for having a nice warmth and a creamy breakup at fairly low volumes, the 6V6 sings like an EL34 but has more chime for cleaner bell like tones. The Goldfinger’s power amp has the finesse of a Bull Rider that knows the art of hanging loose and tight at the same time, not an easy sonic accomplishment by any means. The 6V6 power amp, when combined with the many sonic fragrances of the fine-tuned preamp circuit, offers you have a complex harmonic universe that allows your soul to get lost in.

Reinhold’s Guitar System? The Goldfinger is a two channel vintage voiced amplifier incorporating Reinhold Bogner’s incredible tonal flexibility. Each channel, one named Alpha, the other Omega, features multiple controls and switches to highly customize your personal sound preferences.

The combination of the channels with the availability of a pre and post effects loop makes this amplifier a Guitar System which lets you route your guitar signal as needed without downloading the original audio signal.

The post effects loop is the more common found loop between pre amp and power amp. The loop can be operated in series or parallel and has a level switch to be set accordingly to the effects unit used. Parallel mode lets you mix your effects via a control to the pure dry signal. Series takes the entire dry signal and routes it through your effects unit, series can also be used as a volume boost.

The pre effects loop is incredibly unique and a first in amplifier designs. Actually, the second time, since in 1995 Reinhold designed and produced a limited 60 unit run of the hand wired Caveman amplifiers which featured a tube buffered pre effects loop. While this loop worked well and served its purpose for the 100% pure sound, you still had to plug the guitar directly into the channel inputs.

After rethinking the problem, Reinhold came up with a new pre loop design that’s featured for the first time in the Goldfinger. The problem is solved: if the pre loop is not engaged the amplifier will only see the pure guitar signal without it going through any switches or relays. This means if your guitar is plugged straight into the Goldfinger’s input and any other effect pedals, loopers, routers etc., that would normally be used between the guitar and amplifier, are connected through the Goldfinger’s loop, you still retain a 100% pure guitar tone! Please note this pre loop is a non-buffered circuit design.

Goldfinger 45 The quartet of 6V6’s delivers 45 watts of clean headroom and can be scaled down to 30, 23 or 15 watts.

Goldfinger 90 A quartet of EL34’s, combined with the custom power and output transformers, offers 90 watts of sonic gold which can be scaled down to 60, 45 or 30 watts. All other features remain the same as the Goldfinger 45.

Features:

• 2 Channel Tube Amplifier
• Choice of variable Boost or Pre FX loop
• Boost or Pre FX individually footswitchable for each channel
• Footswitch controllable Tube-buffered series or parallel Post FX-Loop
• Footswitch controllable spring reverb*
• α Ch.: Bass, Middle, Treble, Gain & Loudness controls, Pre & Post Bright switches
• Ω Ch.: Bass, Middle, Treble, Gain EQ, Gain & Loudness controls, 69/80 mode switch
• Full and Low output power switch
• Functions on footswitch: α/Ω ch. select, α boost/pre-fx, Ω boost/pre-fx, reverb, post-fx
• 1/2 Output Power Mode – 4 Stepfrom 45W to 15W (90W to 30W Goldfinger 90)

Options:

• Available as a Head or 1×12″ open back combo
• 45 watt 6V6 or 90 watt EL34 Power Amp Section
• Matching open 1×12 cabinet
• Matching open or closed 2×12 cabinet

To learn more about Bogner Amplification, Click Here

View more products from Bogner Amplification

Condition	New
Brand	Bogner

GF45 Head:

- 9" H 25.50" W 10.25" D 42 pounds

GF90 Head:

- 9.75" H 25.50" W 10.25" D 47 pounds

GF45 1x12 Combo:

- 19.50" H 25.50" W 10.75" D 66 pounds

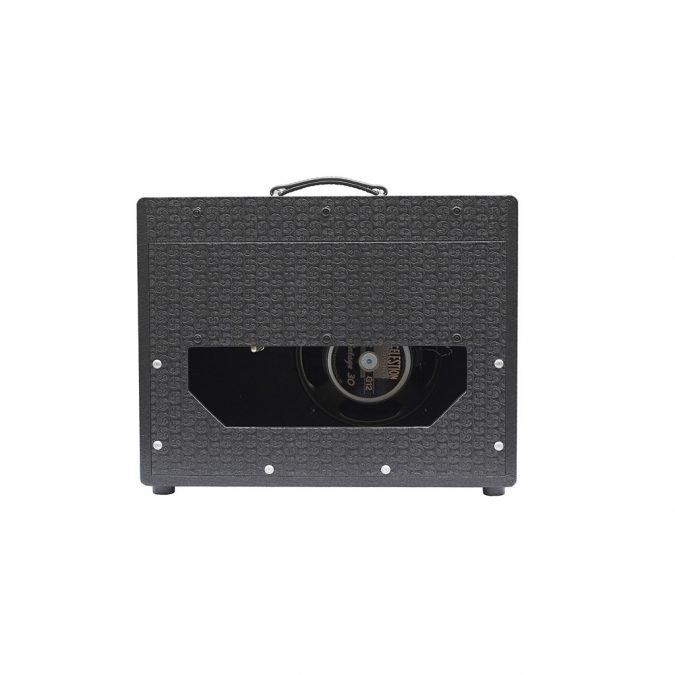

1x12 open Cabinet:

- 19.50" H 25.50" W 10.75" D 43 pounds

2x12 open Cabinet:

- 24.50" H 25.75" W 10.25" D 54 pounds

Download Manual for Bogner Goldfinger 45 Watt Tube Guitar Amplifier Head
