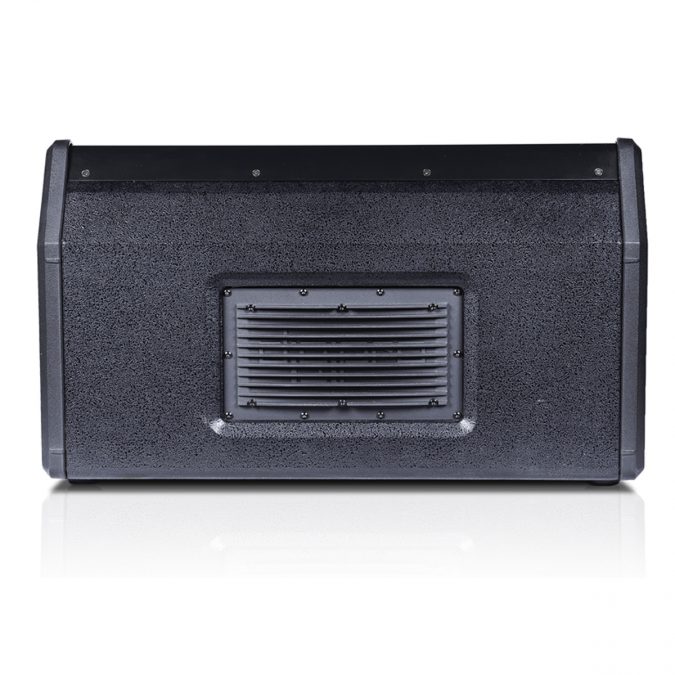

dBTechnologies LVX-XM15 Professional Stage Monitor

LVX tour series family grows bigger with dBTechnologies LVX-XM15 Professional Stage Monitor. Just like the other members of the LXV family, these active wedges respond to all those live music and touring requirements where sound reinforcement systems must be lightweight, portable, road resistant and easily adaptable to different stage necessities.

Enhanced Coaxial Horn Design

Lvx XM’s design enhance the benefits of coaxial horn wedges concept.

dBTechnologies designed a horn that not only shape high frequencies’ directivity, but also acts as a phase plug for the woofer, boosting and lighting up the vocal band, thanks also to the advanced DSP featuring FIR filters processing.

As a result, not only the horn contributes to deliver a bright audio performance with a uniform throw pattern, but also contributes to reduce the overall dimensions of the system and protect the internal components, reinforcing the cabinet structure.

8 preset equalizations for all stage requirements

LVX XM monitors feature an advanced DSP offering eight variable presets in order to easily adapt to different stage requirements and to the varying demands of vocalists, instrumentalists as well as audio playback applications.

Solid and road ready

The cabinets are constructed in sturdy plywood and comes with 2 integrated side handles allowing easy transport and stage set up operations. A pole mount cup on one side allow to put the system on a pole for vertical use (eg. as drummer monitorning or for audio playback applications) .

For more info about dBTechnologies, visit: http://www.dbtechnologies.com

View more products from dBTechnologies

• Speaker Type: 2-Way Active Coaxial Stage Monitor

Acoustical data

• Frequency Response [- 6 dB]: 58 - 17,800 Hz
• Max SPL: 128 dB
• HF: 1 " Exit 1,4" v.c.
• Directivity (HxV): 90° x 70°
• LF: 15", 2,5 v.c.

Amplifier

• Amp Technology: Digipro® G3
• Amp Class: Class D
• Power RMS: 600 W
• Peak Power: 1200 W
• Power Supply: SMPS with PSU Auto-range
• Power Connection: PowerCon In/Link
• Cooling: Convection

Processor

• Controller: DSP 56 bit
• Converter AD/DA: 24 bit/48 kHz
• System Presets: 8 presets
• Limiter: Peak, RMS, Thermal
• Processing (filters): FIR Linear Phase
• Controls: Rotary 8 positions, MIC/LINE switch

Input

• Mains Connections: PowerCON in/link
• Signal Input: 1xCombo IN (XLR/Jack)
• Signal Output: 1xXLR link OUT
• USB connector: Mini USB B-Type (service only)

Mechanics

• Housing: Plywood with black PVC Cover
• Grille: Metal, black painted
• Handles: 2, chassis integrated
• Pole Mount: D36 mm
• Width: 640 mm (25.20 in)
• Height: 460 mm (18.11 in)
• Depth: 370 mm (14.57 in)
• Weight: 22,3 kg (49.16 lbs)
