Mytek Brooklyn ADC Analog-Digital Converter
$1,995.00
NEW DUAL MONO 130dB, USB, 32bit/384kHz PCM, DSD256, MQA MASTERING ADC
Description
Mytek Brooklyn ADC Analog-Digital Converter
The Mytek Brooklyn ADC is Mytek best sounding ever new A/D converter designed specifically for most demanding mastering and recording applications where transparency of conversion and accuracy of detail are of the highest importance. Dual mono ADC chipsets with fully balanced signal path and conversion are sampling audio at 12 MHz, with a choice of high resolution audio output formats: up to 384kHz /32 bit and DSD 256.
Brooklyn ADC is the first commercially available ADC to feature built in MQA Kernel (TM) to be used for mastering to MQA streaming format. Together with the Brooklyn DAC , there is a set of mastering converters capable of capturing the finest details of music like never before with practical workflow enabling easy mastering in a variety of Hi-Res formats, including MQA. Brooklyn ADC offers a choice of input flavors: electronic line level or passive nickel transformer as well as optional high perfomance mic or phono input.
To learn more about Mytek, Click Here
Additional information
| Weight | 4 lbs |
|---|---|
| Dimensions | 8.5 × 8.5 × 1 in |
| Brand | Mytek |
| Condition | New |
| Color: | Black, Silver |
Technical Specifications
- PCM up to 384kHz,
- 32 bit, DSD256 with simultaneous formats on output, including USB.
- Inputs: Transparent line level (electronic) or passive nickel transformer with saturation control, mic or phono input (optional plug in cards). Inputs accessible from both back and front panels.
- AES, SPDIF, ADAT/Toslink (up to 192k, 24 bit),
- SDIF DSD, USB2 Class2 (All formats, up to 32 bit)
- (No drivers for Mac or Linux, bidirectional interface function with digital out on AES)
- MQA Kernel(tm): Built in (MQA compliant filters and dithering)
- Control panel w. one button HiRes recording: Mac or Win app enabling control of all settings from a computer via USB. Features one button simultanoeus maximum resolution PCM and DSD recording without a DAW and easy flash firmware upgrades.
- Clock: <1ps jitter Mytek Femtoclock (tm) generator. Wordclock I/O
- Power: Worldwide 30W power supply 100-240V 50/60 Hz. Optional 12VDC power input (2.5mm, inner +)
- Weight/Dim: 4 lbs (2kg) / WxDxH=8.5” x 8.5” x 1U
Conversion
Outputs
Related products
Featuring a primary and secondary ethernet port, RedNet PCIeR for Mac and Windows PCs.
A 1/3 rack wide 1U tall house clock generator/distributor
Includes a suite of UAD plug-ins including Antares Auto-Tune Realtime, Teletronix LA-2A and 1176 compressors, Pultec EQs.
6 Slot Base Unit, Fit any combination (up to 48 analog ins and outs) Input Connectors: AES/EBU DB25, MADI Up to 24 world-class mic preamps in a 2u chassis, Remote-controllable gain over Ethernet, Integrated control and routing with the Pyramix Mixer interface
8 Channel Mic/Line Input card, for Horus and Hapi Base Units, Remote/Local switch to Line Level on a per channel basis, Completely accessible remotely for all parameter changes, Phantom Power/Phase/Low Cut switchable per channel, Removes the need for DI boxes, Allows build-in Mic splitting variants, Better than 120 dB dynamic range

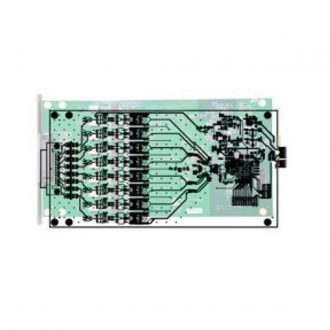

8 Channel Output Card for Horus and Hapi, Auto-mute circuitry, Digitally controlled trims, Dynamic range of 127dB (typ.), Dip switches for international operating levels
