RCF NX-L24A Active Two-Way Column Line Array

The RCF NX-L24A Active Two-Way Column Line Array is composed of 4 x 6” high power woofers and a 2.5” voice coil compression driver loaded from a waveguide on a 100° x 30° constant directivity horn. The amplifier delivers 1400 Watt and is controlled by a DSP that takes care of crossover, equalisation, phase alignment, soft limiting and speaker protections. Equalisations are available to operate with a single column or in pairs.

Features:

• 1400 Watt
• 31 dB max SPL
• 5 Hz 20 kHz frequency response
• 4 x 6″ Woofers
• 2.5″ voice coil RCF Precision C. Driver on waveguide
• 100° x 30° slightly tilted pattern control
• DSP controlled Input section with single or dual eq. preset
• Pole mountable, Stackable, Flyable
• Baltic Birch Plywood enclosure with internal structural metal bracings

• Frequency Response: 65 Hz ÷ 20000 Hz
• Max Spl @ 1m: 131 Db
• Horizontal Coverage Angle: 100°
• Vertical Coverage Angle: 30°

• Compression Driver: 1.4'', 2.5'' v.c
• Woofer: 4 x 6.0'', 1.5'' v.c

• Input Signal: Bal/Unbal
• Input Connectors: Xrl, Jack
• Output Connectors: Xlr
• Input Sensitivity: -2 Dbu/+4 Dbu

• Crossover Frequencies: 800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Volume, EQ Shape, MIc/Line

• Total Power: 1400 W Peak, 700 W Rms
• Low Frequencies: 1000 W Peak, 500 W Rms
• Cooling: Convection
• Connections: Powercon In/Out

• CE Marking: Yes

• Cabinet/Case Material: Baltic Birch Plywood
• Hardware: 4 X Mb, 4 X Quick Lock
• Handles: 2 Side

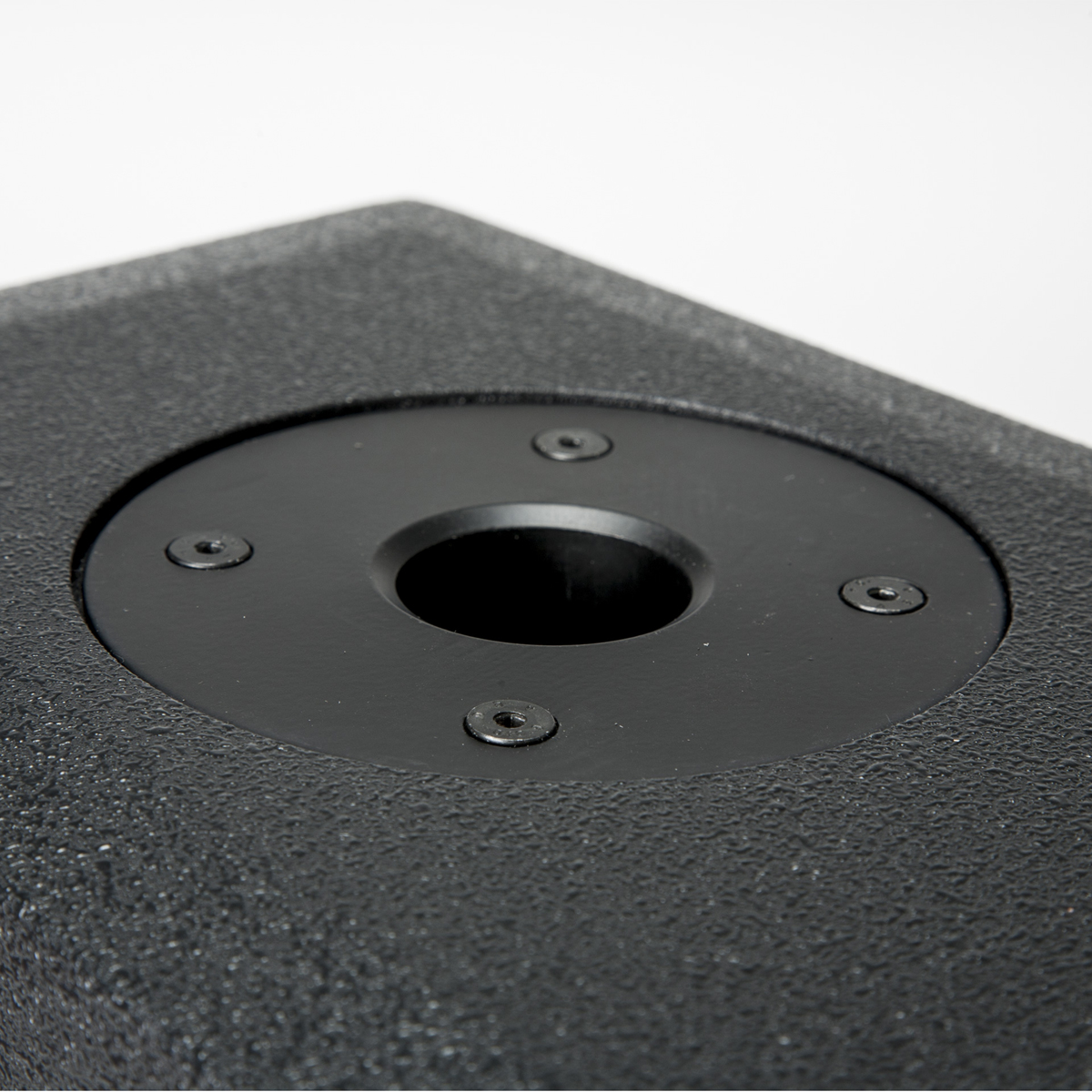

• Pole Mount/Cap: Yes
• Grille: Steel
• Color: Black

• Height: 1056 mm / 41.57 inches
• Width: 201 mm / 7.91 inches
• Depth: 274 mm / 10.79 inches
• Weight: 26.4 kg / 58.2 lbs
