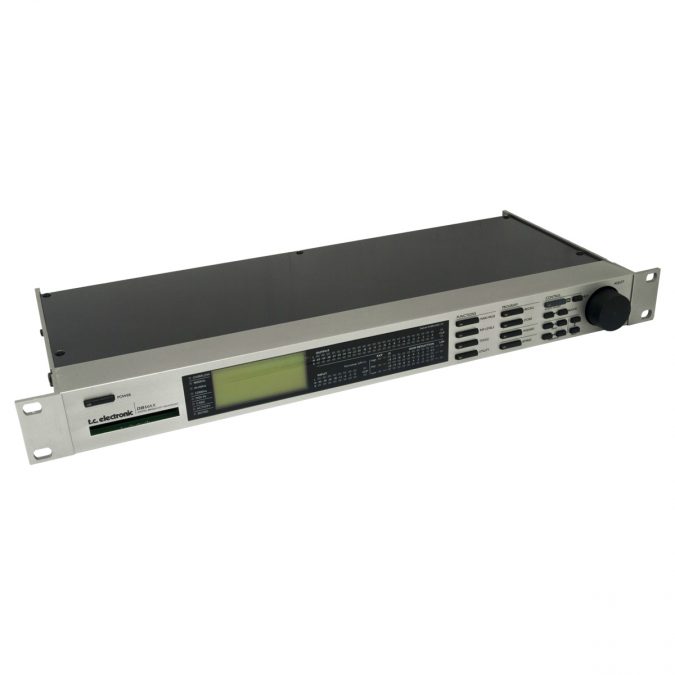

TC Electronics DBMAX Digital Bypass Broadcast Maximizer II

The TC Electronics DBMAX includes Digital Bypass Broadcast Maximizer II

To learn more about TC Electronic, Click Here

View more products from TC Electronic

Digital Inputs and Outputs

• Connectors: XLR (AES/EBU) RCA Phono (SPDIF)
• Format: AES/EBU (24 bit), SPDIF (20 bit), EIAJ CP-340, IEC 958,
• Output Dither: HPF TPDF dither 8-24 bit
• Word Clock Input: BNC, 75 Ohm, 0.6 to 10 Vpp
• Sample Rates: 32 kHz, 44.1 kHz, 48 kHz
• Processing Delay: 0.5 ms @ 48 kHz
• Frequency Response DIO: DC to 23.9 kHz ± 0.01dB @ 48kHz

Sample Rate Conversion

• Type: Asychronous
• Dynamic Range: 120 dB
• THD+N: -106 dB 44.1 to 48 kHz @ 1 kHz, -2 dBFS
• Input Rate Range: 31 kHz to 49 kHz

Analog Inputs

• Connectors: XLR balanced (pin 2 hot)
• Impedance: 20 kOhm (balanced)
• Max. Input Level: +27 dBu (balanced)
• Min Input Level (for 0dBFS): -4 dBu
• A to D Conversion: 24 bit (1 bit, 128 times oversampling)
• A to D Delay: 0.8 ms @ 48 kHz
• Dynamic Range: >103 dB (unweighted), >106 dB (A)
• THD: -95 dB (0.018%) @ 1 kHz -6 dBFS (FS@ +18 dBu)
• Frequency Response: 10 Hz to 20 kHz: +0/-0.2dB
• Crosstalk: <-80 dB, 10 Hz to 20 kHz typical -100 dB @ 1 kHz

Analog Outputs

• Connectors: XLR balanced (pin 2 hot)
• By-pass: Through relay
• Impedance: 40 Ohm (balanced)
• Max. Output Level: +26 dBu (balanced)
• Full Scale Output Range: -4 dBu to +26 dBu (balanced)
• D to A Conversion: 24 bit (1 bit, 128 times oversampling)
• D to A Delay: 0.57 ms @ 48 kHz
• Dynamic Range: >100 dB (unweighted), >104 dB (A)
• THD: -86 dB (0.005%) @ 1kHz, -6 dBFS (FS @ +18 dBu)
• Frequency Response: 10 Hz to 20 kHz: +0/-0.5 dB
• Crosstalk: <-60 dB, 10 Hz to 20 kHz typical 90 dB @ 1kHz

EMC

• Complies with: EN 55103-1, EN 55103-2 FCC part 15, Class B CISPR 22, Class B

Safety

• Certified to: IEC 65, EN 60065, UL 1419 and CSA E65

Environment

• Operation Temperature: 32° F to 122° F (0° C to 50° C)
• Storage Temperature: -22° F to 167° F (-30° C to 70° C)
• Humidity: Max. 90% non-condensing

PCMCIA Interface

• Connector: PC Card, 68 pin type 1 cards
• Standards: PCMCIA 2.0, JEIDA 4.0
• Card Format: Supports up to 2 MB SRAM

Control Interface

• RS485/RS422: 5 Pin DIN
• MIDI: In/Out/Through: 5 Pin DIN
• GPI, Pedal, Fader: 1/4 inch phone jack

General

• Finish: Anodized aluminum face and top plate Plated and painted steel chassis
• LCD: 56 x 128 dot graphic LCD-display
• Dimensions: 19" x 1.75" x 8.2" (483 x 44 x 208 mm)
• Weight: 5.2 lb. (2.35 kg)
• Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
• Power Consumption: <20 W
• Backup Battery Life: >10 years
