Aviom A320 32-Channel Personal Mixer

The Aviom A320 Personal Mixer gives performing and recording musicians simple, intuitive control over their monitor mixes. With many of the features of the award-winning A360 Personal Mixer, the Aviom A320 gives musicians the ability to get clear, musical monitor mixes every time they play. Ideal for use with in-ear monitors and headphones, the A320 gives musicians powerful control over their mix, while also preserving the simplicity required for use while performing. The Aviom A320 is compatible with all existing and legacy Aviom personal mixing systems.

Made for the musician

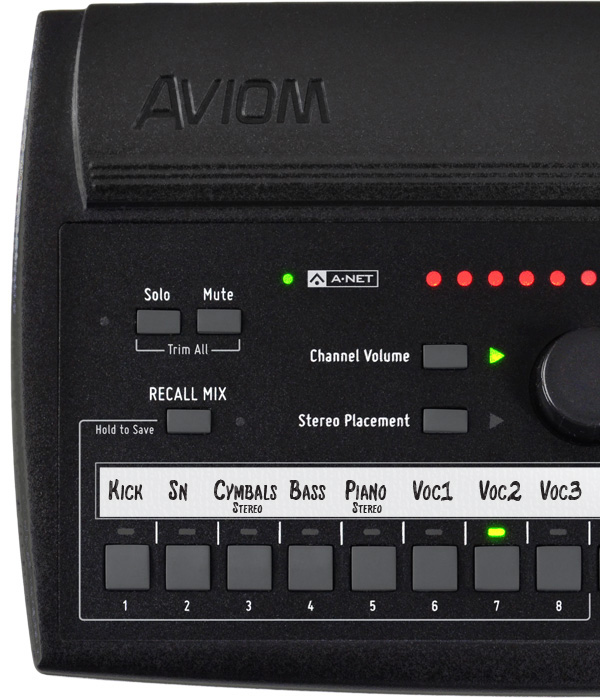

Musicians are not engineers and mixing while playing music or singing is very different than just mixing. That’s why the Aviom A320 is designed with such a clean user interface. No clutter. No menus. Just quick access to the mixing controls you need.

Simple to its core

The Aviom A320 doesn’t have a lot of bells and whistles. By design. Because when you’re focused on playing music, bells and whistles can just get in the way. That’s why the A320 gives musicians the controls that matter most for adjusting their monitor mix and keeps the rest out of the way.

Stereo clarity in every channel

Each of the 16 mix channels on the Aviom A320 can host a mono or a stereo source. That means you can preserve the fidelity of your stereo instruments and submixes from the console without giving up another mix source in your personal mixer. And that translates directly into clearer, more natural sounding monitor and cue mixes.

Easy stereo placement for outstanding clarity

Good stereo imaging in a monitor mix is essential for hearing every source clearly and distinctly, within the context of the ensemble. It’s also an important way to reduce the sense of isolation many musicians experience with in-ear monitors.

Like the A360 Personal Mixer, the Aviom A320 allows users to pan both mono and stereo sources. With stereo sources, the Stereo Placement control adjusts both the separation and the position of the source in the mix as a whole. The A320 places all that power in a single control, allowing musicians to make a clear, natural sounding monitor mix with just the simple turn of the knob.

Rich, vibrant sound quality, especially with in-ears

The A320 uses the same master tone filters as the premier A360. They’re easy to use—even if you don’t know a thing about EQ—and they’ll help your in-ear monitors sound their best, no matter what type of music you play.

Rugged and reliable

From the enduring simplicity of the mechanical design to the elegant efficiency of the embedded software, the A320 is built to work when you need it to work and to withstand the abuses of life on stage and in the studio.

Consistency night after night

The A320 includes space for eight mixes presets, so you can save your favourite mixes and get reliable results in your monitors every time you play.

How it works:

Whether you’re adding to an existing Aviom personal mixing system or building a new one, getting up and running with the Aviom A320 is a breeze. For older systems, the A320 runs in Pro16 mode, with 16 channels spread across the interface and stereo sources occupying adjacent channel buttons, like on the iconic A-16II Personal Mixer. For systems with more channels, switch the A320 into Pro16e mode to access the full power of its 32-channel mix engine which supports any combination of 16 mono or stereo sources.

In Depth:

• A320 Modes: 16-Channel or 32-Channel
• How Aviom A320 Stereo Channels Work
• How To Label Your Personal Mixer
• Expanding beyond 16 inputs – a four-part series

Features:

• 16 mono or stereo sources
• 32-channel mix engine
• Per-channel volume and Stereo Placement
• Eight customizable mix presets
• Three-band master tone controls optimized for in-ear monitors
• Per-channel solo and mute
• Compatible with existing Aviom personal mixing systems

Compatibility:

The A320 Personal Mixer is forward and backward compatible with most Aviom Pro16 and Pro16e devices*. This includes:

• AN-16/i Input Module
• AN-16/i v.2 Input Module
• AN-16/i -M Mic Input Module
• Y1 Card for Yamaha MY devices
• Console cards from Aviom’s development partners
• A-16D A-Net Distributor
• A-16D Pro A-Net Distributor
• D400 & D400-Dante A-Net Distributors
• D800 & D800-Dante A-Net Distributors

The A320 may also be used in the same system with the A360 and legacy A-16II Personal Mixers.

Note: * The A320 Personal Mixer must be connected to an A-Net Distributor to operate. It does not support an external DC power supply.

To learn more about Aviom, Click Here

View more products from Aviom

Brand	Aviom
Condition	New

• Audio Output: 1/4" TRS stereo, headphone or line level
• Stereo Mix Output, Headphone/Line:
• Tip: Audio Left;
• Ring: Audio Right;
• Sleeve: Ground
• A-Net I/O:
• 1 A-Net In, RJ45 connector;
• Supports Pro16 (16-channel) and Pro16e (32-channel)
• D/A Conversion: 44.1/48kHz, 24-bit
• Stereo Operation:
• Stereo Link, per channel pair;
• Set at the input module;
• Variable pan per mono channel or pan/spread per stereo channel pair
• Headphone Output: 275 mW per side into 50 Ohms (both sides driven)
• Output Impedance: 5 Ohms
• Freq. Response: 3Hz-22kHz +0.2dB/-3dB at 50 Ohms
• THD +N: < 0.003%
• Output Voltage for Personal Mixers:
• 24VDC, 0.5 amp
• Transmitted over the Cat-5e cable
• Signal to Noise
• (unweighted): -106dB (measured with zero data into all channels)
• Latency: 0.880 msec (measured from analog input to analog output)
• Pro16e A-Net:
• Use Cat-5e (or better) cable;
• Maximum 400 ft (122 m) between devices;
• Supports Power Over A-Net
• Cat-5 cable:
• Use shielded Cat-5e (or better) cable to stay below the CISPR 22 Class B,
• ICES-003, and FCC 47 CFR Part 15 Class B emissions limits.
• Power:
• 24 VDC, 0.5 amp;
• Power is supplied over the Cat-5 cable when connected to an Aviom
• A-Net Distributor (required)
• Dimensions: 10.26" (260.6 mm) wide x 6.14" (155.95 mm) deep x 1.91" (48.51 mm) high
• Weight: 1.3 lb. (0.59 kg)
• Options: MT-1a Mic Stand Mount

Download Data Sheet for Aviom A320 32-Channel Personal Mixer

Download User Guide for Aviom A320 32-Channel Personal Mixer
