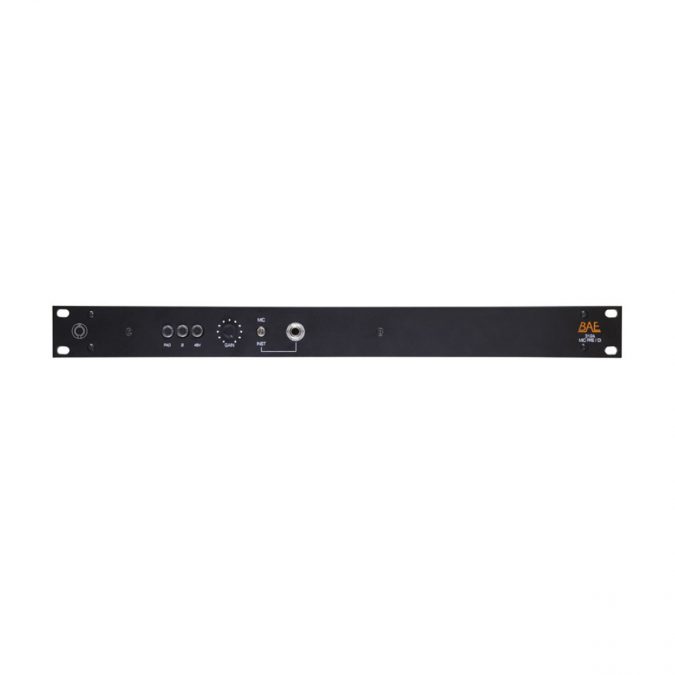

BAE 312A Single Mic Pre (Black) w/Out PSU

BAE 312A Single Mic Pre (Black)

The BAE 312A Single Mic Pre (Black) is available as a 500 series module or a single or dual channel 19″ rackmount.

Because there are no capacitors in the audio path, the 312A is super fast and punchy, allowing transients to pass easily, making them a favourite for drummers.

Made with the highest quality parts including Jensen input and output transformers and the Avedis® 1122 opamp. The 312A also includes a high impedance DI for instruments.

Features:

– Made using Avedis 1122 opamps
– Supplied with Jensen input and output transformers.
– Remote power supply with four-foot cable capable of four times the current needed by the – preamps for optimum sound quality.
– Switches have gold contacts for long life.
– XLR connectors on the back for mic input and output and phone jack in front for direct input.
– High impedance direct input for guitar and synthesizer.
– Separate front panel switches for phantom power.

To know more about BAE Audio, Click Here

View more products from BAE Audio

Weight	14 lbs
Brand	BAE
Condition	New

- Frequency Response: 5Hz to 75kHz (-3dB)
- Mic Input Impedance: ≈1400 ohms
- Line Input Impedance: 10k ohms
- DI Input Impedance: ≈250k ohms
- Output Impedance: 75 ohms
- Common Mode Rejection Ratio: 110dB min @ 60Hz
- Maximum Output Level: +27.1 dBu @ 600Ω
- Power Requirements: 115/230 VAC, 27W (Rackmount)/40mA per Rail (Module)
- Gain dB: 10 to 66 dB
- Equivalent Input Noise: -120 dBu; Unweighted 300kHz Bandwidth
- Weight (Module/Rackmount): 1 LBS / 0.45 KG (Module)/7 LBS / 3.18 KG (Single Rackmount)/ 8 LBS / 3.63 KG (Dual Rackmount)
- Dimensions in Inches (Rackmount/Module): 19W x 1.75L x 9D (Rackmount)/ 1.5W x 5.5L x 6D (Module)

Download Recall Sheet for BAE 312A Single Mic Pre (Black)
