Coil Audio CA-286s Single Channel Preamp

Coil Audio CA-286s Single Channel Preamp

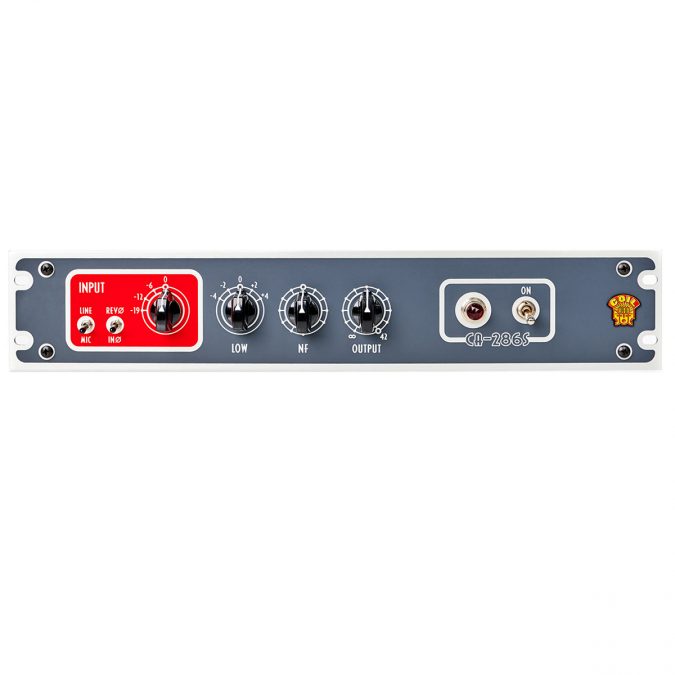

CA-286S Single Channel Mic/Line Preamp

The Coil Audio CA-286 is a standalone single channel 2U version of our larger CA-286 PS6 preamp module but with onboard power and a more streamlined control layout. It boasts the exact same European style circuit, tubes, transformers, and high-end components as its PS6 sibling but with a more elegant and user-friendly design. Simply put – The CA-286S is the easiest way to get those Hi-Fidelity EF86 tube tones into your studio.

To learn more about Coil Audio, Click Here

CA-286S Amplifier:

• 2U steel enclosure with integrated power supply
• CT-110HN Input and CT-41 Output transformers installed
• Negative feedback tone adjustment with LOW filter
• Two-stage dual EF86/6267 vacuum tube circuit
• 42db-60db of available gain
• Flexible input pad section for Mic or Line level operation
• 150 Ohm Mic input, 20k Line input, 600 Ohm output
• NOS tubes, signal caps & resistors, PEC 2W carbon pots
• Slow Ramping/Linear regulated Power Supply to prolong tube life
• Hand Built and Tested in the USA
