Earthworks TC20 20khz Omni for Loud Sources
$399.00
Small-diaphragm Omnidirectional Time Coherent Condenser Microphone with 10 Hz – 20 kHz Frequency Response
Please check with us about availability
Description
Earthworks TC20 20khz Omni for Loud Sources
Omnidirectional condenser microphone for recording & live performances
– 10Hz – 20kHz flat frequency response
– Omnidirectional polar pattern
– Handles up to 150dB SPL without distortion

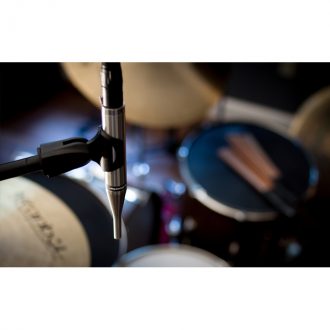

The TC20 is an omnidirectional microphone designed for recording louder sources such as drums, percussion, amplified instruments and loud sound effects.
Performance
With a whopping SPL rating of 150dB the TC20 has plenty of headroom, so there is no need to worry about distortion, even with the loudest instruments. And there is no proximity effect, so you can get the TC20 as close as you want to the sound source.
With a 10Hz – 20kHz ruler-flat frequency response, the result is a more accurate representation of the original sound. Its transient response is ultra fast, handling sharp attacks with ease, while still picking up all of the subtle nuances and softest dynamics of your playing. The TC20 is time coherent, precisely capturing high and low frequency sounds with no phase errors, which will smear transients and create other time related distortions.
Its near-perfect omnidirectional polar pattern is uniform across all specified frequencies, letting the microphone capture rich and consistent detail at any position around the capsule.
Designed for recording louder sources such as drums, percussion, amplified instruments and loud sound effects.
The TC Series (Time Coherent) is designed for recording louder sources such as drums, percussion, amplified instruments and loud sound effects. Microphones in this series allow recording of louder acoustic sources without overloading the preamplifier. Models in the TC Series are often the choice for recording drum overheads, close miked or amplified instruments and sound effects.
Benefits
– High definition audio
– Near-perfect polar response
– Uniform frequency response on or off-axis
– Ultra-fast impulse response
– Captures the full impact of an attack
– Extreme accuracy in the time domain for faithful reproduction and no smearing or distortion
– Reliable performance
By starting with an honest recording, you can make sonic coloration choices after you have had the chance to hear your instrument in its purist form. Then you can determine what, if any, adjusting your sound needs. There’s no plugin for clean sound, so start with the right tool in your arsenal that gives you the ultimate control over sculpting your sound into the recording you want.
Earthworks studio microphones do not impart any character to your recordings. Rather, they let your instrument shine with the truest and cleanest capture. With their extended frequency response, near perfect polar pattern, ultra-fast impulse response and time coherency, Earthworks studio microphones deliver life-like realism and total clarity to your recordings.
Chart
Features
– Our least expensive general-purpose omni with high frequency response to 20kHz
– Ideal for a wide variety of instruments and vocals, including acoustic guitar, string instruments and piano
– For live sound the TC20 can be used for close miking instrument amps, drums or brass
– Omnidirectional polar pattern
– Accurate and uncolored
– Effortlessly handle high sound pressure levels up to 150dB SPL while simultaneously capturing subtle details
– Fast impulse response and diaphragm settling time
– Exceptional flat frequency response and are time coherent, so they sound natural and uncolored
– Requires 48V Phantom Power
Models
TC20 20kHz omnidirectional microphone for loud sources
TC20mp 20kHz omnidirectional microphone for loud sources – matched pair
Uses
– Acoustic String Instruments
– Bass Amp
– Brass/Woodwinds
– Guitar Amp
– Piano
– Recording
Testimonial
“True to its claims, the TC20 is quite happy sitting over percussion, where it picks up a very detailed and articulate sound that feels more ‘in focus’ than what you get from most conventional mics.”
Sound on Sound
To learn more about Earthworks, Click Here
Technical Spec
- Polar Pattern: Omnidirectional
- Sensitivity: 8mV/Pa (-42dBV/Pa)
- Power Requirements: 48V Phantom, 10mA
- Max Acoustic Input: 150dB SPL
- Output: XLR (pin 2+)
- Output Impedance: 65Ω balanced (between pins 2 & 3)
- Min Output Load: 600Ω between pins 2 & 3
- Noise: 26dB SPL equivalent (A weighted)
- Dimensions L x D: 165mm x 22mm (6.5 x .860 inches)
- Weight: .35 lb. (160g)
Download User Manual for Earthworks Earthworks 20khz Omni for Loud Sources
