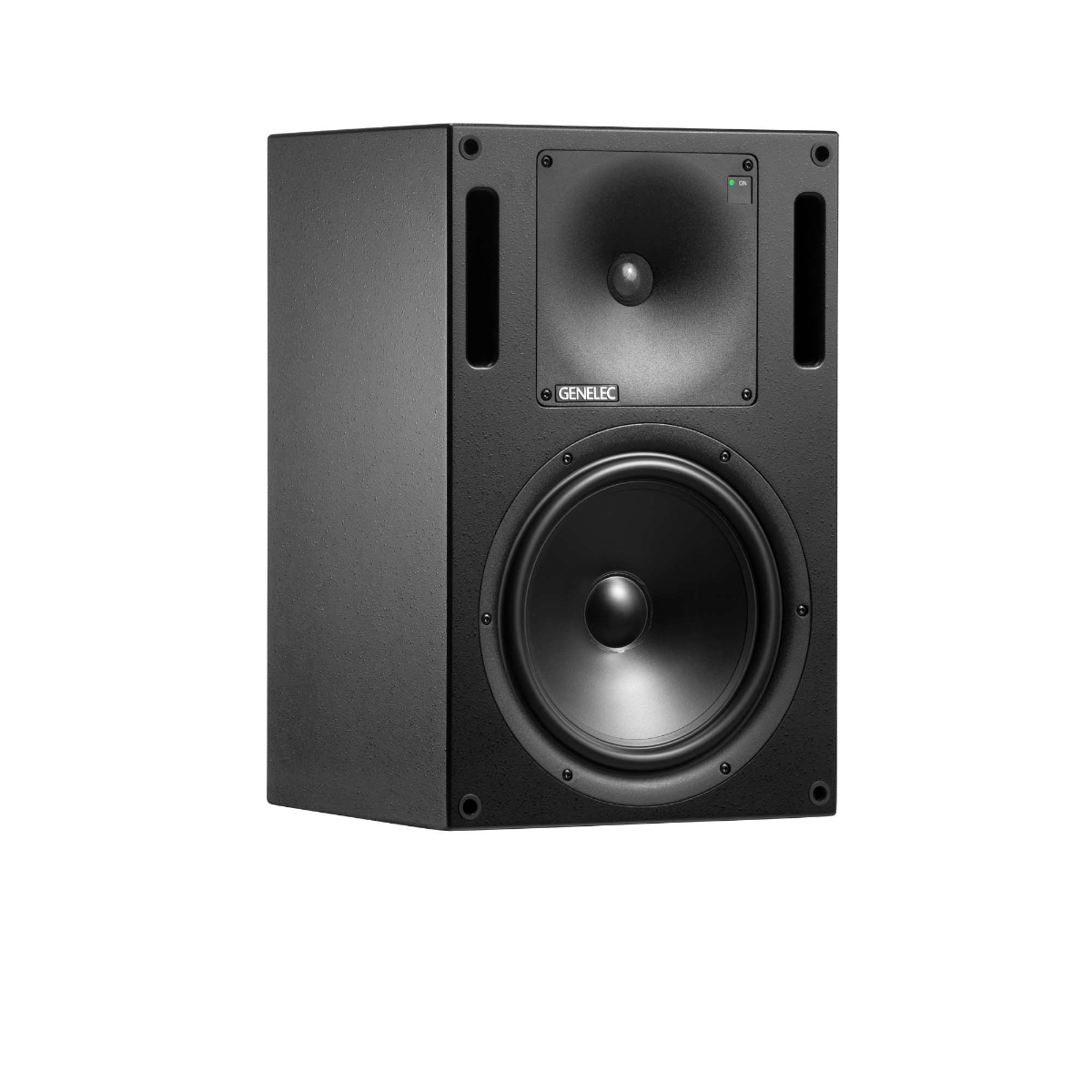

Genelec 1032C SAM 10-Inch Bi-Amped Powered Studio Monitor

Genelec 1032C SAM 10-Inch Bi-Amped Powered Studio Monitor

Styled in a producer finish by the manufacturer, the Genelec 1032C SAM Studio Monitor is designed for high-powered, near-field monitoring in pro-audio scenarios such as music studios, mobile vans, surround sound systems, multimedia installations, and TV broadcast facilities. The speaker consists of a 10″ bass woofer, a 1″ metal dome tweeter, an active crossover, and a directivity control waveguide to balance the frequency spectrum.

The monitor can accept both analog and digital AES/EBU signals from separate XLR jacks, and automatically detect what kind of audio is being fed into the monitor. To coordinate multiple 1032Cs, you can use Genelec’s GLM software to tune your monitor to your room, daisy-chain monitors, override automatic signal-source selection, and more. Routing is accomplished by means of a few Cat5 cables and a GLM adapter, which are available separately. You’ll note that RJ45 ports are provided for GLM connectivity. An XLR output jack is on hand for sending identical copies of incoming AES/EBU signals to other monitors.

The 1032C provides a 10″ bass woofer amplified by 200W of short-term power, and can play down to 40 Hz. The 1″ metal dome tweeter can play up to 23 kHz, is amplified by 150W of short-term power, and utilizes the directivity control waveguide to achieve phase and delay uniformity. Both the woofer and tweeter are magnetically shielded. The monitor provides you with multiple controls to optimize system performance for your particular listening environment. These controls are enumerated in the features section.

Key Features:

Genelec Loudspeaker Manager (GLM) Compatible

GLM, a proprietary software available free from Genelec, allows you to coordinate, equalize, and otherwise manage your 1032C to its fullest potential.

Analog or AES/EBU

The 1032C’s audio inputs are designed to integrate easily into all professional environments, supporting balanced, line-level analog and AES/EBU-format digital signal. Analog input is selected when the AES/EBU signal input is not connected. The AES/EBU format digital audio input is selected automatically when a valid digital audio signal is present. Automatic audio signal input selection can be overridden, however, when the 8341A is controlled by a GLM network, enabling flexible selection of either input. On the output side, an XLR connecter provides an unaltered copy of the incoming AES/EBU signal, enabling you to daisy chain up to four monitors.

Directivity Control Waveguide (DCW)

The 1032C has a proprietary directivity-control waveguide which shapes the emitted wavefront in a controlled manner, thus allowing you to tailor the dispersion pattern predictably. This DCW technology minimizes early reflections, providing a wide yet controlled listening area for accurate playback both on- and off-axis.

Smart Active Monitor (SAM)

SAM technology can improve the reliability and accuracy of these monitors by providing several parametric notch and shelving filters that can be tuned automatically in concert with the GLM software, compensating for colorations generated by room acoustics. This enables SAM monitors to sound neutral and achieve accurate imaging in most acoustic environments.

Controls at a Glance

Bass Roll Off Control

Bass roll off control attenuates the monitor’s output near the low cut-off frequency. Attenuation levels of -2 , -4, or -6 dB (accomplished with both switches set to ON) can be selected.

Desktop 160 Hz

The desktop low-frequency control (switch 5) attenuates the bass frequencies around 160 Hz by 4 dB. This feature is designed to compensate for the boost often occurring at this frequency range when the monitor is placed upon a meter bridge, table, or similar reflective surface.

Bass Tilt Control

These switches offer three attenuation levels for the frequency response below 800 Hz. Attenuation is usually necessary when the monitors are placed near room boundaries. The attenuation levels are -2, -4, and -6 dB (both switches ON).

Treble Tilt Control

This allows you to adjust the treble response above 5 kHz by +2, -2, or -4 dB, which can be used for correcting an excessively bright or dull sounding system, or to compensate for high frequency level loss if the monitor is placed behind a screen. The -2 dB setting is selected by turning both switches ON.

Intelligent Signal Sensing (ISS)

This switch activates or deactivates the ISS automatic power saving function. The default time for ISS activation is 60 minutes, but can be adjusted in GLM.

Digital

The Digital switch selects the digital audio channels on the AES/EBU. Turning both switches ON reproduces the sum of the A and B channels. 6 dB of attenuation is applied to avoid overloading the monitor. If the AES/EBU cable is operated in dual-wire mode, the monitor detects this automatically and the channel selection switches have no effect.

Level

The Level switches scale down the monitor output level in 10 dB steps. The effects of these switches add up and combine with the effect of the rotary level adjustment control. The combined total setting range is -42 dB.

Stored

You can select between using controls on the monitor’s back panel or the settings stored inside the GLM system calibration software. Setting the Stored switch to OFF puts the monitor in standalone mode. Setting the Stored switch to ON position selects internally stored GLM settings. Using the Stored option overrides all adjustments made with the monitor’s own controls.

To learn more about Genelec, Click Here

View more products from Genelec

Brand	Genelec
Condition	New

• Monitor Type & Configuration: Active 2-Way
• Total Power Output: 350 W
• Tweeter: 1x 1" / 25 mm Metal Dome
• Woofer: 2x 9.8" / 25 cm Cone
• Audio I/O: 1x XLR 3-Pin Balanced Input (10 Kilohms)
• Digital Audio I/O:
• 1x XLR 3-Pin AES3 Input
• 1x XLR 3-Pin AES3 Out/Thru
• Network I/O: 2x RJ45 Ethernet
• Wireless: No
• Number of Included Monitors: Single Monitor
• Enclosure: Bass-Reflex/Ported, Shielded
• Total Power Output: 350 W

Drivers:

• Tweeter: 1x 1" / 25 mm Metal Dome
• Woofer: 2x 9.8" / 25 cm Cone
• Amplifiers:
• HF: 150 W
• LF: 200 W

Performance:

• Frequency Response: 40 Hz to 20 kHz ± 2.5 dB
• Maximum Sound Pressure Level (SPL): 124 dB
• Total Harmonic Distortion (THD): 0.05%
• Maximum Input Level: +25 dBu
• Analog Input Sensitivity/Gain: +6 to -6 dBu (Continuously Variable)
• Self-Generated Noise: Less Than 5 dBA (at 3.28' / 1 m)
• Protections and Limiting: Driver Protection

Signal Processing:

• EQ:
  • 1x LF Shelf: -6 to 0 dB at 33 Hz
  • 1x HF Shelf: -6 to 0 dB at 23 kHz
• Crossover Frequency: 1.8 kHz
• App-Based Signal Processing:
• GLM Software Adjustment
• Parametric Notch Filter
• Low Shelf EQ
• High Shelf EQ
• Maximum Sampling Rate: 192 kHz / 24-Bit

Connectivity:

• Audio I/O: 1x XLR 3-Pin Balanced Input (10 Kilohms)
• Digital Audio I/O:
  • 1x XLR 3-Pin AES3 Input
  • 1x XLR 3-Pin AES3 Out/Thru
• Network I/O: 2x RJ45 Ethernet
• USB: No
• Wireless: No

Power:

• AC Input Power: 100 to 240 VAC, 50/60 Hz
• Power Consumption:
  • 1 W (Standby)
  • 11 W (Idle)
  • 200 W (Maximum)

Physical:

• Monitor Orientation: Vertical
• Dimensions (W x H x D): 12.6 x 19.5 x 11.4" / 320 x 495 x 290 mm
• Weight: 37.5 lb / 17.0 kg
