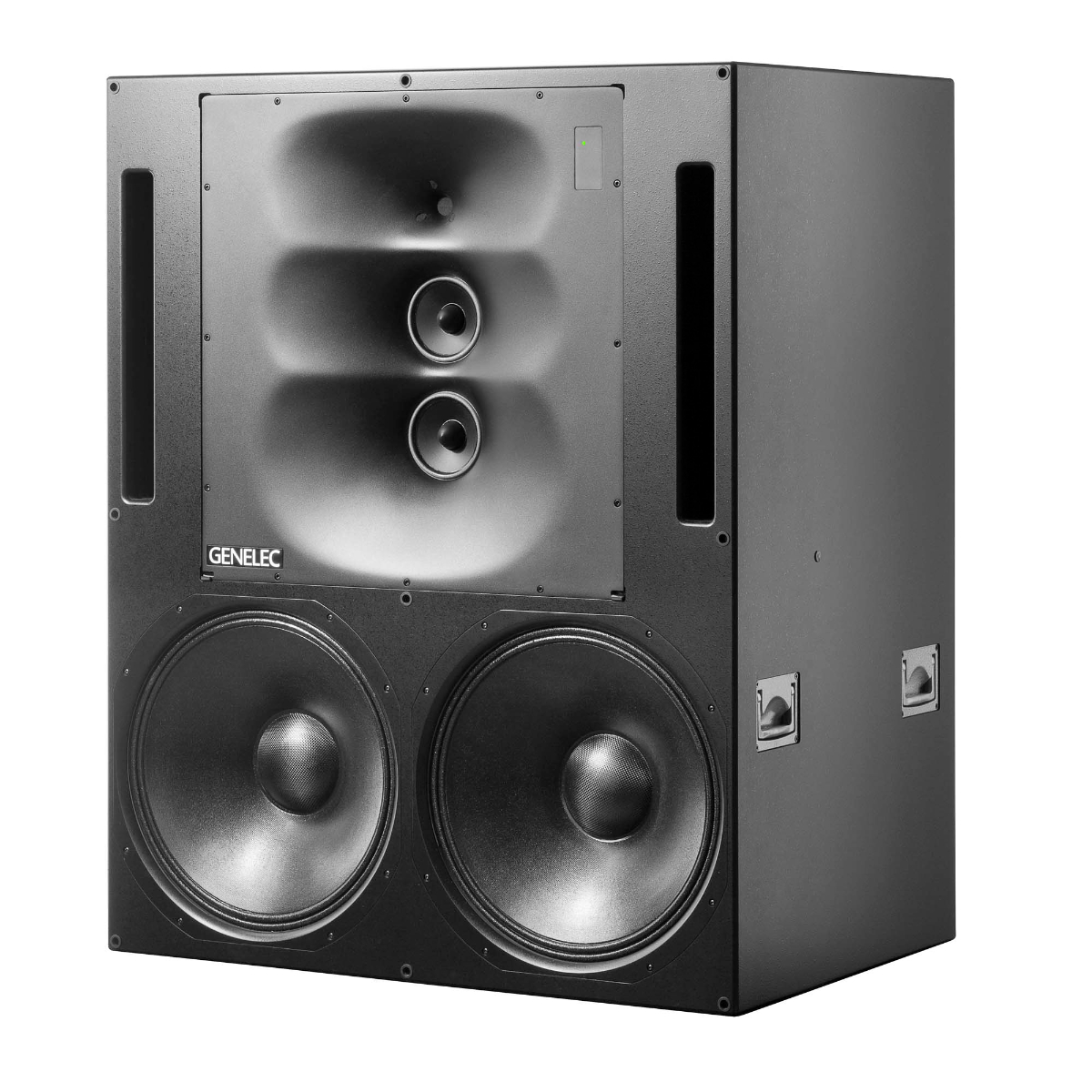

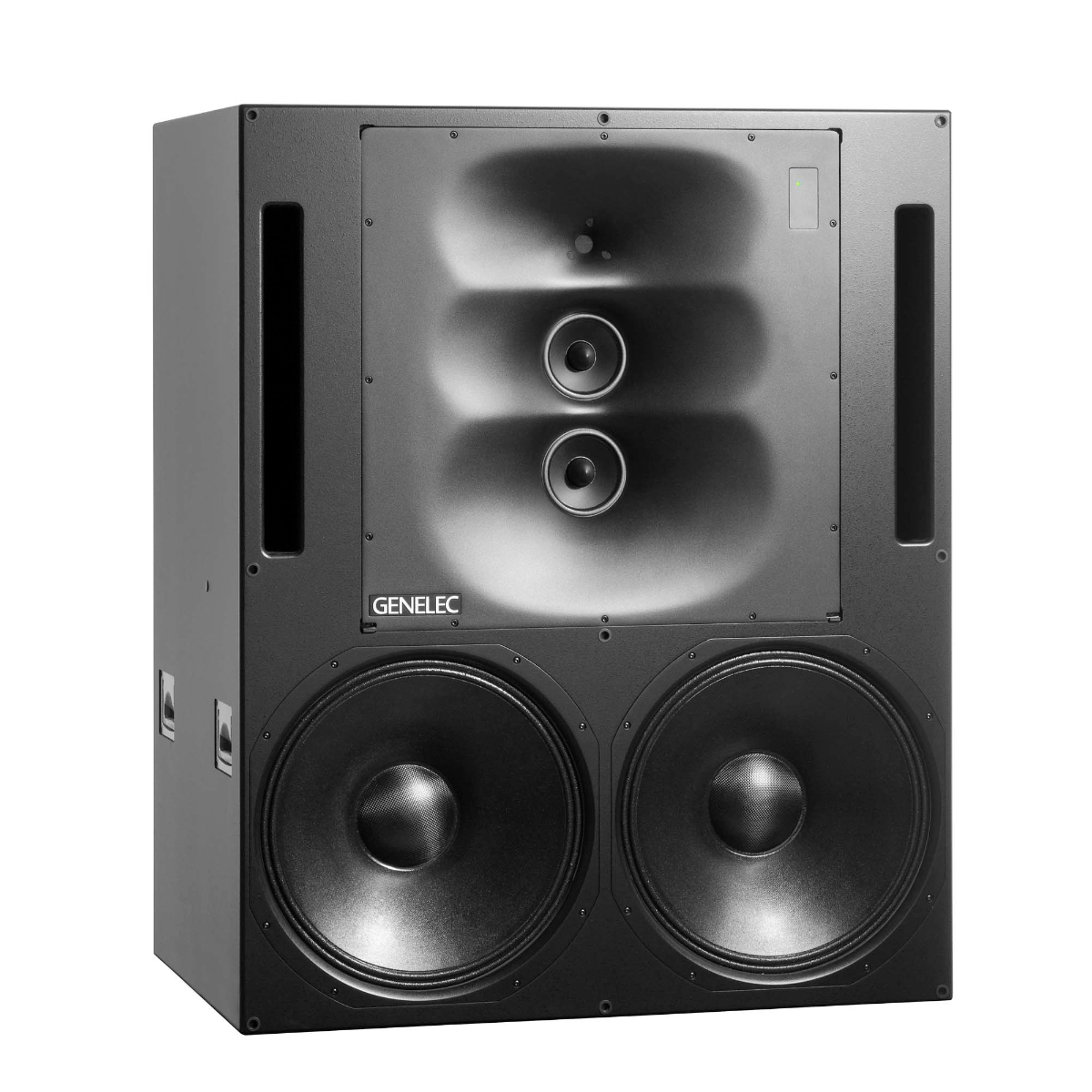

Genelec 1236A SAM Powered Studio Monitor
Call for Price
The flagship of our range. The intelligence of the 1236A is seamlessly integrated into the finest example of acoustic engineering yet produced in more than 40 years of Genelec history.
Description
Genelec 1236A SAM Powered Studio Monitor
The flagship of our range. The intelligence of the 1236A is seamlessly integrated into the finest example of acoustic engineering yet produced in more than 40 years of Genelec history.
Power and Finesse
This is where power and finesse combine to create a truly extraordinary main monitor. Producing peak SPLs of over 130 dB, the 1236A’s staggering muscle is backed up with exquisitely precise imaging and a wide, neutral sweet spot that is the natural choice for satisfying multiple listeners in larger control rooms. All the vibe and energy you want, with detail to match.
Ultimate Control
The 1236A offers new levels of control through its tight integration with our GLM calibration software. GLM analyses your room’s characteristics and intelligently tailors the monitors’ frequency response, level, distance delay and more to provide a truly optimised listening experience – and mixes that translate perfectly to other rooms and systems.
To learn more about Genelec, Click Here
View more products from genelec
Additional information
| Brand | Genelec |
|---|---|
| Condition | New |
Technical Specifications:
- Frequency Response: 21 Hz - 20 kHz (± 2 dB)
- Low cutoff -6dB: 17.5 Hz
- High cutoff -6dB: 26 kHz
SPL:
- Peak SPL: ≥136 dB
- Short term max SPL: ≥130 dB
- Long term max SPL: ≥125 dB
Self-generated noise:
- Self-generated noise: ≤5 dB SPL
Weight:
- Weight: 182 kg (401.2 lb)
Dimensions:
- Height: 1180 mm (46 1/2 in)
- Width: 960 mm (37 3/4 in)
- Depth: 650 mm (25 5/8 in)
Enclosure:
- Enclosure material: MDF
- Enclosure type: Reflex port
Drivers:
- Bass:
- Driver type: Cone
- Count: 2
- Diameter: 458 mm (18 in)
- Midrange:
- Driver type: Cone
- Count: 2
- Diameter: 125 mm (4 7/8 in)
- 50...100 Hz ≤1 %
- 100 Hz...3 kHz ≤0.5 %
- > 3 kHz ≤3 %
Harmonic distortion:
Amplifier Section:
- 1236A bass amplifier:
- 2 x 1000 W Class D
- Height: 132 mm (5 1/4 in)
- Width: 483 mm (19 in)
- Depth: 286 mm (11 1/4 in)
- Weight: 11.2 kg (24.7 lb)
- 1236A midrange amplifier:
- 2 x 400 W Class D
- Height: 132 mm (5 1/4 in)
- Width: 483 mm (19 in)
- Depth: 286 mm (11 1/4 in)
- Weight: 11.2 kg (24.7 lb)
- 1236A treble amplifier:
- 250 W Class D
- Height: 132 mm (5 1/4 in)
- Width: 483 mm (19 in)
- Depth: 286 mm (11 1/4 in)
- Weight: 11.2 kg (24.7 lb)
Mains voltage:
- 100-120VAC / 220-230VAC 50/60Hz
Power consumption:
- ISS Active: ≤6 W
- Idle: ≤40 W
- Full output: 2400 W
