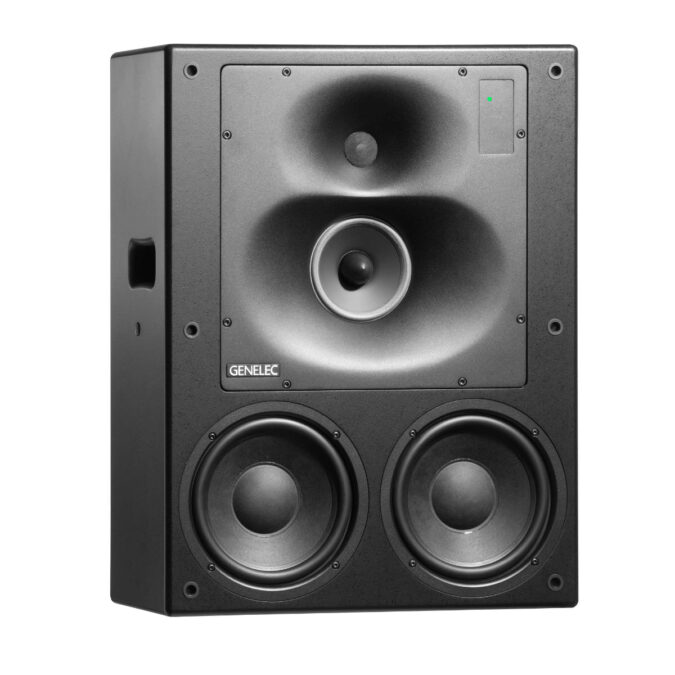

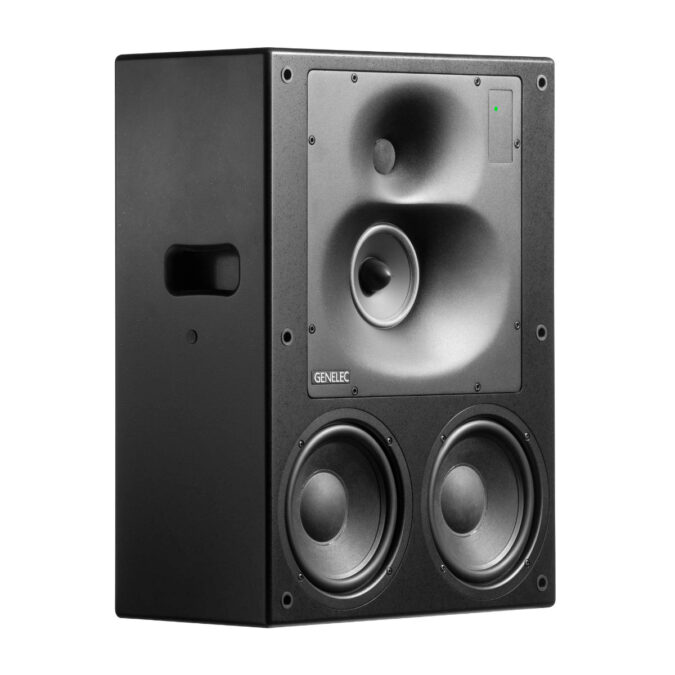

Genelec 1238DFM Studio Monitor
$6,850.00
The super-compact dimensions of the 1238DF allow it to partner with an accompanying subwoofer to deliver main monitor performance in rooms where space is at a real premium.
Please check with us about availability
Description
Genelec 1238DFM Studio Monitor
The super-compact dimensions of the 1238DF allow it to partner with an accompanying subwoofer to deliver main monitor performance in rooms where space is at a real premium.
Neutral and Uncoloured
Ideal for music recording, post-production, broadcast and mastering, the 1238DF is the perfect blend of adaptable amplification, contemporary technology and classic design. With its controlled directivity, it offers all the neutrality and uncoloured performance of a large format Genelec monitor – but with a remote rack-mounting RAM-L amplification module that enables its amazingly modest and slimline cabinet size.
Configure, Calibrate and Control
The 1238DF is designed to partner with a complementary Genelec smart subwoofer, and integrates closely with our GLM software via which the whole system can be configured and calibrated for your listening environment, compensating for detrimental room influences to create a truly optimised monitoring solution. From simple stereo to complex immersive formats, the 1238DF and GLM combine seamlessly to help you produce mixes with exceptional translation to other rooms and systems.
To learn more about Genelec, Click Here
Additional information
| Brand | Genelec |
|---|---|
| Condition | New |
Technical Specifications:
Dimensions
- Height: 610 mm (24 in)
- Width: 470 mm (18 1/2 in)
- Depth: 235 mm (9 1/4 in)
- Weight: 36 kg (79.4 lb)
Drivers
- Bass:
- Driver type: Cone
- Count: 2
- Diameter: 210 mm (8 1/4 in)
- Midrange:
- Driver type: Cone
- Diameter: 125 mm (4 7/8 in)
- Treble:
- Driver type: Metal dome
- Diameter: 25 mm (1 in)
Amplifiers
- 1238DF Bass Amplifier specs:
- 500 W Class D
- 3U rack mounted amplifier (RAM-L).
- Height: 132 mm (5 1/4 in)
- Width: 483 mm (19 in)
- Depth: 240 mm (9 1/2 in)
- Weight: 6 kg (13.2 lb)
- 1238DF Midrange Amplifier specs:
- 250 W Class D
- 3U rack mounted amplifier (RAM-L).
- 1238DF Treble Amplifier specs:
- 200 W Class AB
Mains Voltage
- 100-240 VAC 50/60Hz
Power Consumption
- ISS Active: ≤0.5 W
- Idle: ≤25 W
- Full Output: 750 W
Connectors
- Input: Analog signal input connector XLR female, balanced 10 kOhm.
- Input: Digital signal input connector XLR female 110 Ohm.
- Output: Digital signal output / Thru connector XLR male 110 Ohm.
- 2 x Control: Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
Crossover
- Bass/Mid: 420 Hz
- Mid/Treble: 3000 Hz
