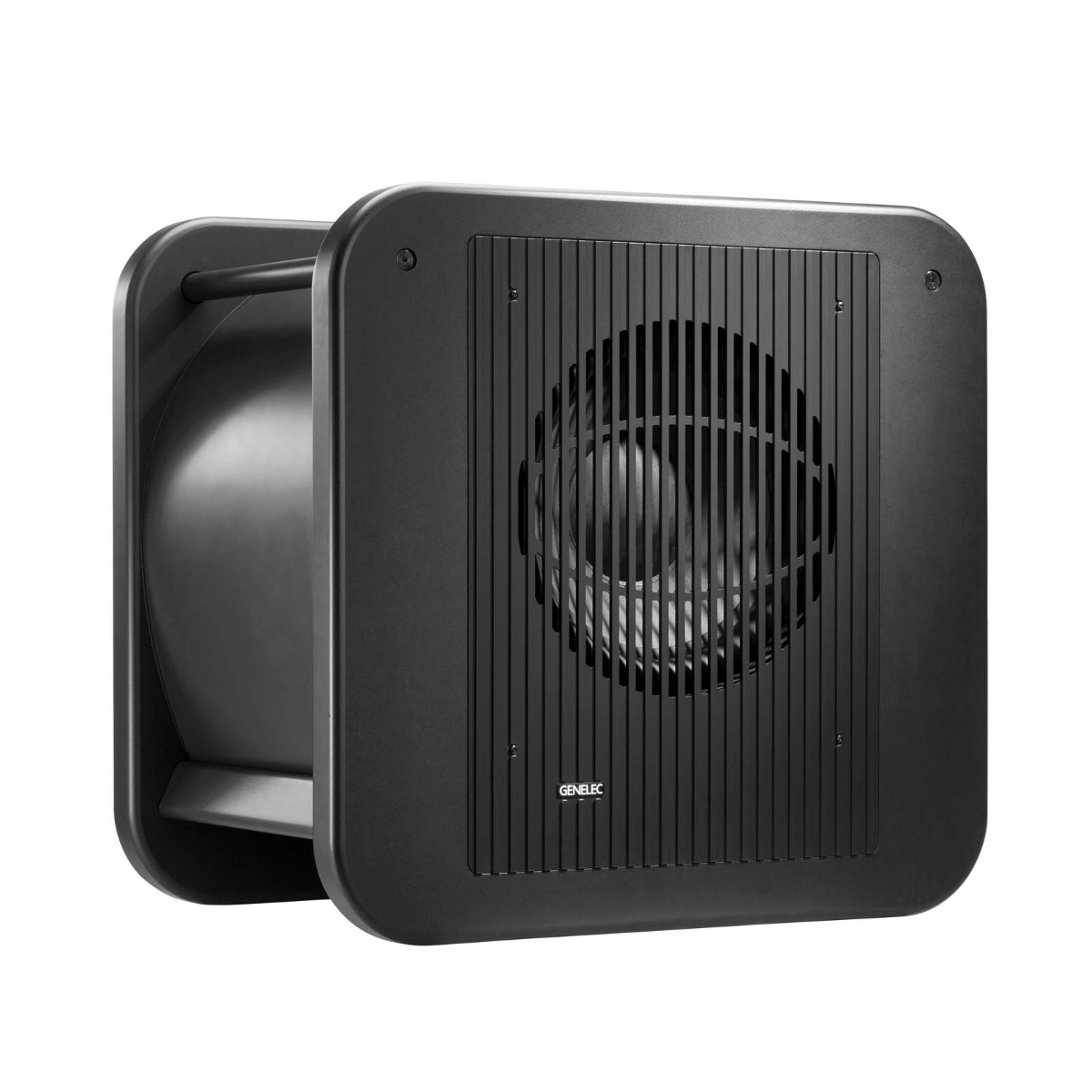

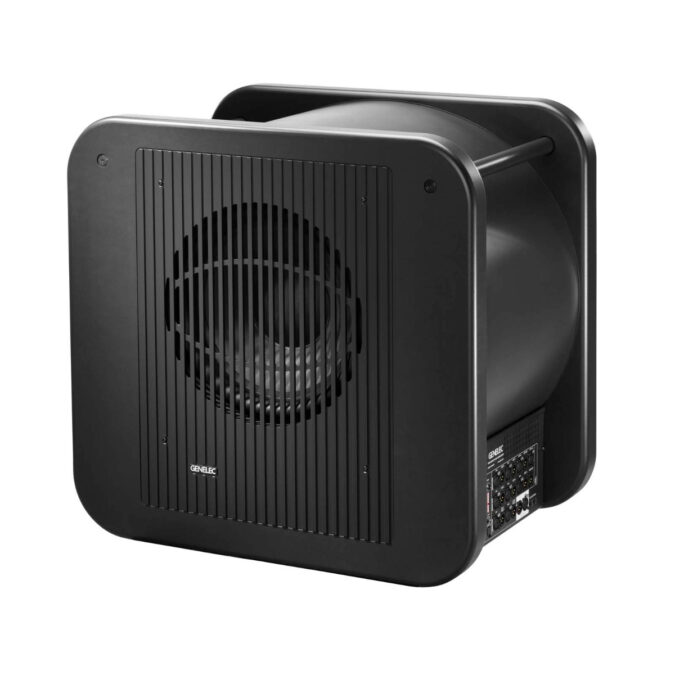

Genelec 7380A 15″ Powered Subwoofer for Studio Bass Monitoring

Genelec 7380A 15″ Powered Subwoofer for Studio Bass Monitoring

Delivering a level of performance often associated with much larger enclosures, the flagship Genelec 7380A SAM (Smart Active Monitoring) Subwoofer is a 15″, 800W active subwoofer, well suited for discerning professionals in music, post, film, and broadcast. The 7380A combines the Laminar Spiral Enclosure (LSE) technology with AutoCal and GLM control network technologies. Genelec’s AutoCal allows the unit to automatically align multiple subwoofers for level, timing, crossover phase, and equalization of room response anomalies. Providing extended low-frequency performance, accurate tonal characteristics, and high dynamic capabilities, the 7380A supports a distributed bass management architecture.

This subwoofer offers 7.1 channel analog XLR inputs and outputs together with stereo AES/EBU XLR inputs and outputs without the need for additional external AD converters. The 800W Class-D amplifier unit is integrated into the enclosure and contains DSP crossover filters, driver overload and protection circuitry. The Genelec 7380A is the low-frequency monitoring tool for music studios, mobile vans, digital workstations, radio and TV broadcasting, providing remarkable sound clarity, definition, and neutrality.

• Smart Active Monitor (SAM) systems
• Laminar Spiral Enclosure (LSE) technology
• Bass Management system
• Intelligent Signal Sensing (ISS) technology
• Optimized amplifiers
• Active crossovers
• Protection circuitry

Key Features:

• 15″ Woofer
• Smart Active Monitor System
• Laminar Spiral Enclosure Technology
• Bass Management System
• Intelligent Signal Sensing Technology
• Optimized Amplifiers
• Active Crossovers & Protection Circuitry
• Frequency Response: 16 to 120 Hz
• Class-D Amplifier: 800W
• Includes Network Cable and Power Cord

To learn more about Genelec, Click Here

View more products from Genelec

• Monitor Type & Configuration: Active Subwoofer
• Total Power Output: 800 W
• Subwoofer Drivers: 1x 15" / 38.1 cm Cone
• Frequency Range: 16 Hz to 120 Hz (-6 dB)
• Audio I/O:
• 9x XLR 3-Pin Balanced Input
• 9x XLR 3-Pin Balanced Output
• Digital Audio I/O:
• 1x XLR 3-Pin AES3 Input
• 1x XLR 3-Pin AES3 Out/Thru
• Network I/O: 2x RJ45 Ethernet
• Wireless: No
• Number of Included Monitors: Single Monitor
• Enclosure: Bass-Reflex/Ported, Shielded
• Total Power Output: 800 W

Drivers:

• Subwoofer Drivers: 1x 15" / 38.1 cm Cone

Performance:

• Frequency Range: 16 Hz to 120 Hz (-6 dB)
• Maximum Sound Pressure Level (SPL): 123 dB
• Total Harmonic Distortion (THD): 0.01%
• Maximum Input Level: +24 dBu
• Analog Input Sensitivity/Gain: +48 dBu to -6 dBu (Continuously Variable)
• Self-Generated Noise: Less Than 5 dBA (at 3.28' / 1 m)

Signal Processing:

• EQ:
• 1x LF Shelf: -12 to 0 dB at 20 Hz (4 dB Increments)
• Filters:
• Low-Pass at 85 Hz
• High-Pass at 85 Hz
• Phase Adjustment: 4-Position Switch
• Maximum Sampling Rate: 192 kHz / 24-Bit

Connectivity:

• Audio I/O:
• 9x XLR 3-Pin Balanced Input
• 9x XLR 3-Pin Balanced Output
• Digital Audio I/O:
• 1x XLR 3-Pin AES3 Input
• 1x XLR 3-Pin AES3 Out/Thru
• Network I/O: 2x RJ45 Ethernet
• USB: No
• Wireless: No

Power:

• AC Input Power: 100 to 240 VAC, 50/60 Hz
• Power Consumption:
• 2 W (Standby)
• 40 W (Idle)
• 600 W (Maximum)

Physical:

• Monitor Orientation: Vertical
• Dimensions (W x H x D): 28.3 x 27 x 19.4" / 718 x 685 x 492 mm
• Weight: 152.1 lb / 69.0 kg
