Genelec 8030C 50W 5″ Woofer 2-Way Powered Studio Monitor

Genelec 8030C 50W 5″ Woofer 2-Way Powered Studio Monitor

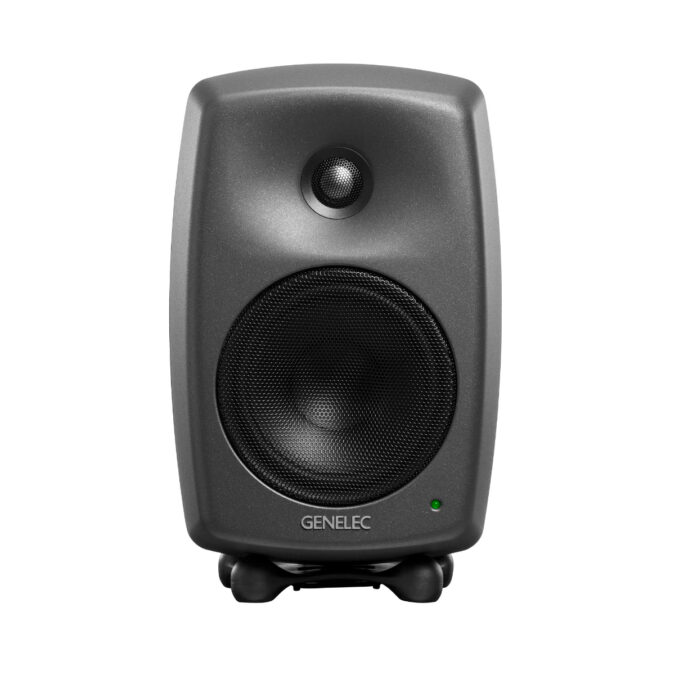

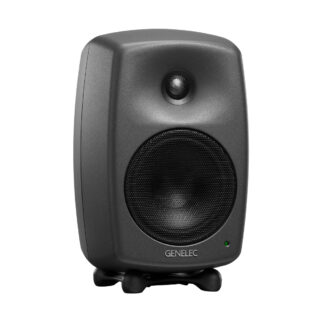

Styled in a dark gray, classic Producer finish, Genelec 8030C is a single 2-way active studio monitor designed to provide accurate mix referencing for audio engineers, musicians, and producers in project studios, small control rooms, or mobile setups. It features 100W of Class-D amplification driving a 5 1/8″ woofer and 3/4″ metal-dome tweeter, producing a frequency response of 47 Hz to 25 kHz.

A proprietary waveguide enhances imaging while the bass reflex port extends the low-frequency response. The aluminum enclosure is shaped to minimize diffraction. It supports a balanced input via an XLR 3-pin connector. Room compensation options include high- and low-frequency adjustments. There is a selectable power-saving mode that enables automatic power up/down via a signal-sensing circuit.

The 8030C offers multiple mounting options including threaded holes for compatibility with mic stands, OmniMount brackets.

The 8030 C comes with an Iso-Pod isolation stand.

• 5 1/8″ woofer and 3/4″ metal-dome tweeter
• 100W Class-D amplification
• 47 Hz to 25 kHz frequency response (-6 dB), 54 Hz to 20 kHz frequency response (± 2 dB)
• Proprietary waveguide utilizes DCW (Directivity Control Waveguide) technology for improved imaging and a wider listening area
• Bass reflex port provides extended low-frequency response
• Room compensation controls include high- and low-frequency adjustments
• Low-diffraction aluminum enclosure utilizes MDE (Minimum Diffraction Enclosure) technology
• Balanced XLR 3-pin input and input level control
• ISS (Intelligent Signal Sensing) automatic power-saving mode
• Multiple mounting options: Iso-Pod and threaded holes that are compatible with mic stands and OmniMount brackets
• Includes Iso-Pod isolation stand for vibration decoupling

Key Features:

• 5″ Woofer, 3/4″ Metal-Dome Tweeter
• 100W Class-D Amplification
• Proprietary Waveguide
• Bass Reflex Port
• Treble and Bass Controls
• Low-Diffraction Aluminum Enclosure
• Balanced XLR Input
• Automatic Power-Saving Mode
• Multiple Mounting Options
• Includes Isolation Stand

To learn more about Genelec, Click Here

View more products from Genelec

• Monitor Type & Configuration: Active 2-Way
• Total Power Output: 100 W
• Tweeter: 1x 0.75" / 19 mm Metal Dome
• Woofer: 1x 5.13" / 13.03 cm Cone
• Frequency Range: 47 Hz to 25 kHz (-6 dB)
• Audio I/O: 1x XLR 3-Pin Balanced Input (10 Kilohms)
• Number of Included Monitors: Single Monitor
• Enclosure: Bass-Reflex/Ported, Shielded

Drivers:

• Tweeter: 1x 0.75" / 19 mm Metal Dome
• Woofer: 1x 5.13" / 13.03 cm Cone
• Amplifis:
• HF: 1 x 50 W Class-D
• LF: 1 x 50 W Class-D

Performance:

• Frequency Range: 47 Hz to 25 kHz (-6 dB)
• Frequency Response: 54 Hz to 20 kHz ± 2 dB
• Maximum Sound Pressure Level (SPL): 110 dB
• Total Harmonic Distortion (THD): ≤0.05%
• Analog Input Sensitivity/Gain: -6 dBu (Continuously Variable)
• Self-Generated Noise: Less Than 5 dBA (at 3.28' / 1 m)

Signal Processing:

• EQ:
  • 1x LF Tilt: -6 to 0 dB at 100 Hz (2 dB Increments)
  • 1x LF Shelf: -4 to 0 dB at 55 Hz
  • 1x HF Tilt: -4 to +2 dB at 15 kHz
• Crossover Frequency: 3 kHz

Connectivity:

• Audio I/O: 1x XLR 3-Pin Balanced Input (10 Kilohms)
• Network I/O: No
• USB: No
• Wireless: No

Power:

• AC Input Power: 100 to 240 VAC, 50/60 Hz
• Power Consumption:
  • 0.5 W (Standby)
  • 3 W (Idle)
  • 60 W (Maximum)

Physical:

• Enclosure Material: Aluminum
• Dimensions: 7.4 x 11.8 x 7" / 18.8 x 30 x 17.8 cm (W x H x D)
• Weight: 11.0 lb / 5.0 kg
