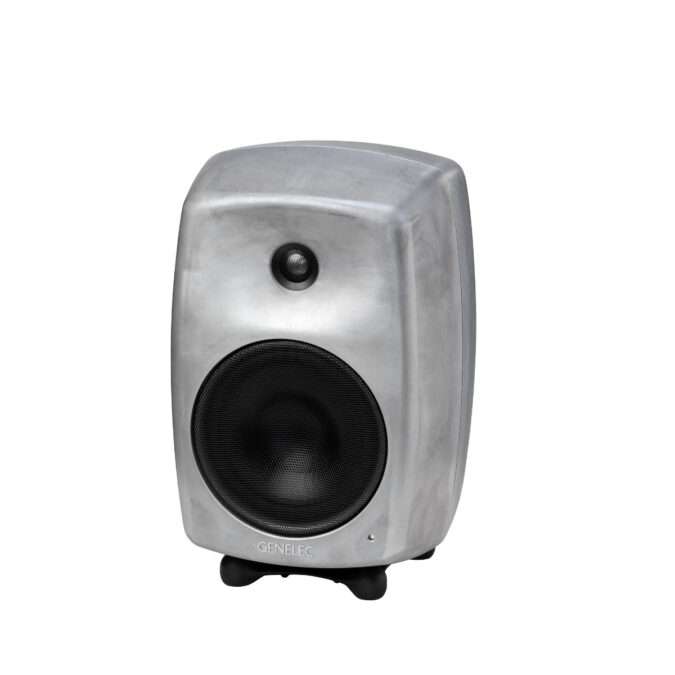

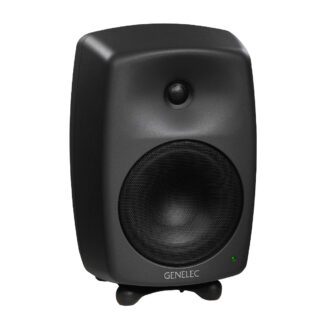

Genelec 8040B 90W 6.5″ Powered Bi-Amplified Studio Monitor

Genelec 8040B 90W 6.5″ Powered Bi-Amplified Studio Monitor

Power and precision

The choice of recording professionals around the world, the 8040B’s impeccable performance extends to an SPL of 105 dB and goes all the way down to 41 Hz. This is a nearfield monitor that can deliver truth and energy in equal measure.

Power and precision

The 8040B’s recycled aluminum cabinet design combines transparent, uncolored audio quality with unique aesthetic beauty. You’ll work with speed and precision, producing mixes that translate seamlessly. And when you’re done, our Intelligent Signal Detection (ISS) circuitry will automatically switch the 8040B into an eco-friendly, power-saving standby mode.

To learn more about Genelec, Click Here

View more products from genelec

• Monitor Type & Configuration: Active 2-Way
• Total Power Output: 180 W
• Tweeter: 1x 0.75" / 19 mm Metal Dome
• Woofer: 1x 6.5" / 16.5 cm Cone
• Frequency Range: 45 Hz to 21 kHz (-3 dB)
• Audio I/O: 1x XLR 3-Pin Balanced Input (10 Kilohms)
• Number of Included Monitors: Single Monitor
• Enclosure: Bass-Reflex/Ported, Shielded
• Total Power Output: 180 W

Drivers:

• Tweeter: 1x 0.75" / 19 mm Metal Dome
• Woofer: 1x 6.5" / 16.5 cm Cone
• Amplifiers:
• HF: 1 x 90 W
• LF: 1 x 90 W

Performance:

• Frequency Range: 45 Hz to 21 kHz (-3 dB)
• Frequency Response: 48 Hz to 20 kHz ± 2 dB
• Maximum Sound Pressure Level (SPL): 115 dB
• Signal-to-Noise Ratio: 100 dB
• Total Harmonic Distortion (THD): 0.05%
• Analog Input Sensitivity/Gain: +6 to -6 dBu (Continuously Variable)
• Self-Generated Noise: Less Than 10 dBA (at 3.28' / 1 m)

Signal Processing:

• EQ:
• 1x HF Tilt: -4 to +2 dB at 15 kHz
• 1x LF Tilt: -6 to 0 dB at 100 Hz (2 dB Increments)
• 1x LF Shelf: -6 to 0 dB at 45 Hz (2 dB Increments)
• Crossover Frequency: 3 kHz

Connectivity:

• Audio I/O: 1x XLR 3-Pin Balanced Input (10 Kilohms)
• Network I/O: No
• USB: No
• Wireless: No

Power:

• AC Input Power: 100 to 230 VAC, 50/60 Hz
• Power Consumption:
• 0.5 W (Standby)
• 10 W (Idle)
• 110 W (Maximum)
• Enclosure Material: Aluminum
• Dimensions (W x H x D): 9.3 x 14.4 x 8.8" / 237 x 365 x 223 mm
• Weight: 20.7 lb / 9.4 kg
