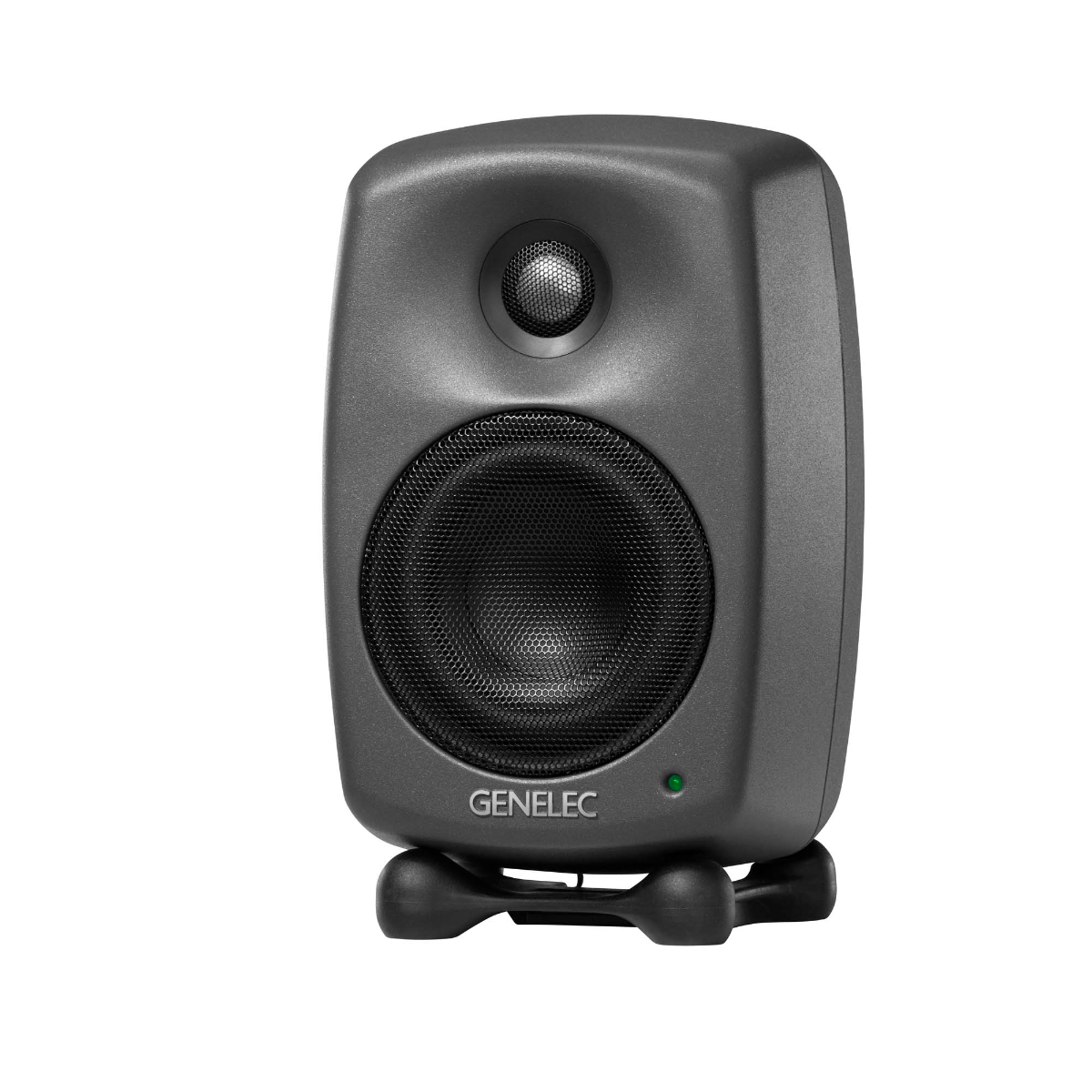

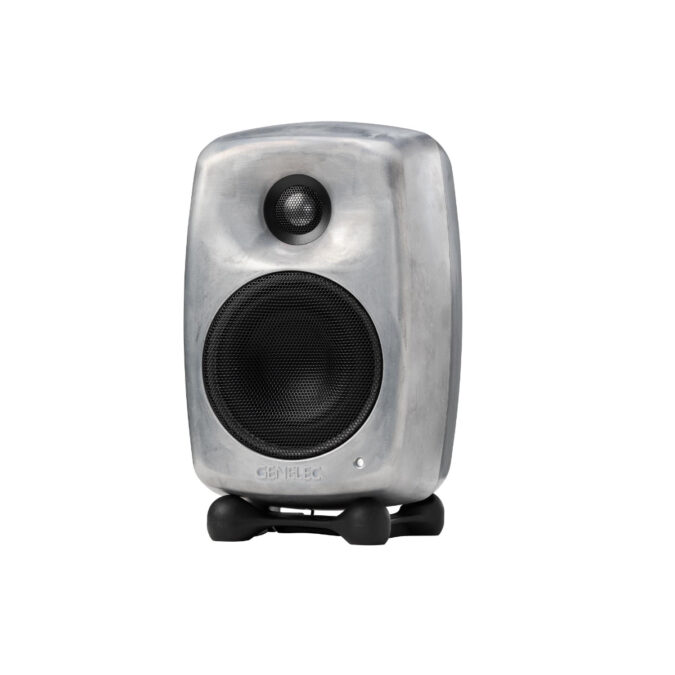

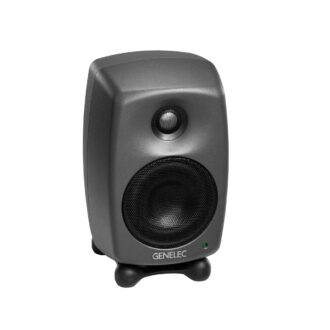

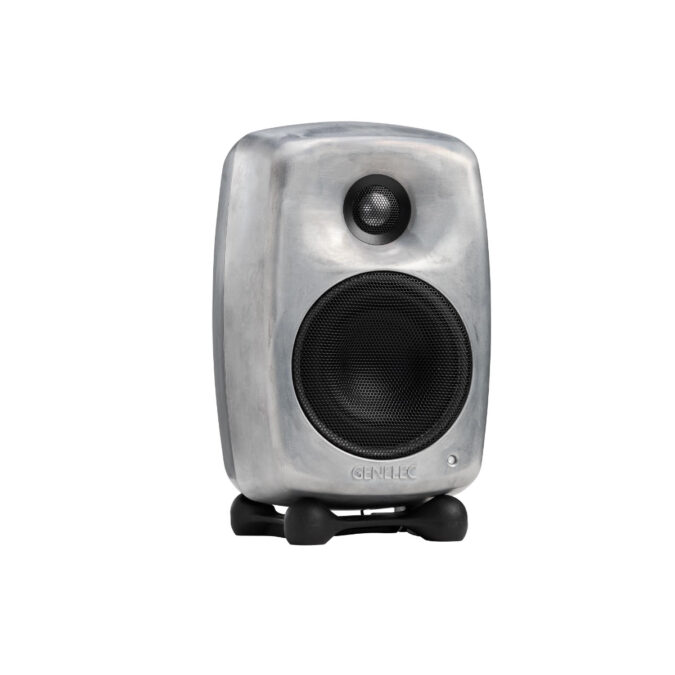

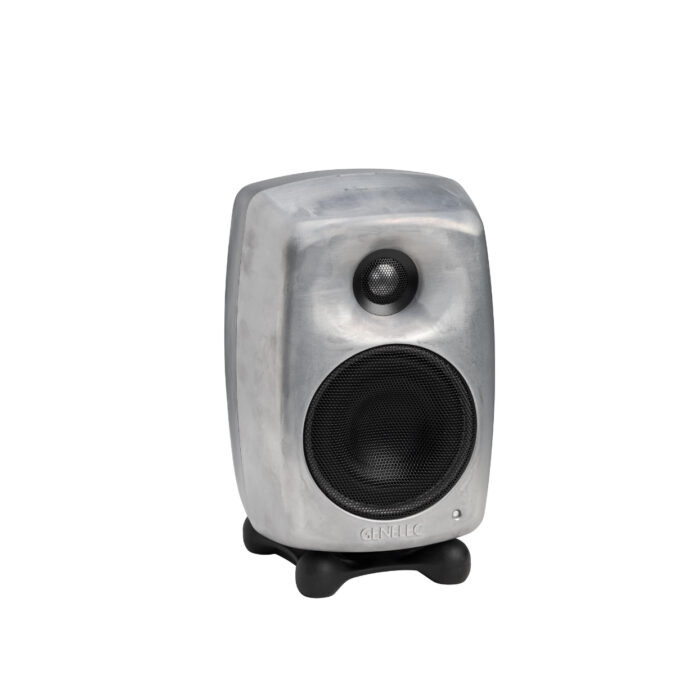

Genelec 8320A 4″ Powered Bi-Amplified Studio Monitor

Genelec 8320A 4″ Powered Bi-Amplified Studio Monitor

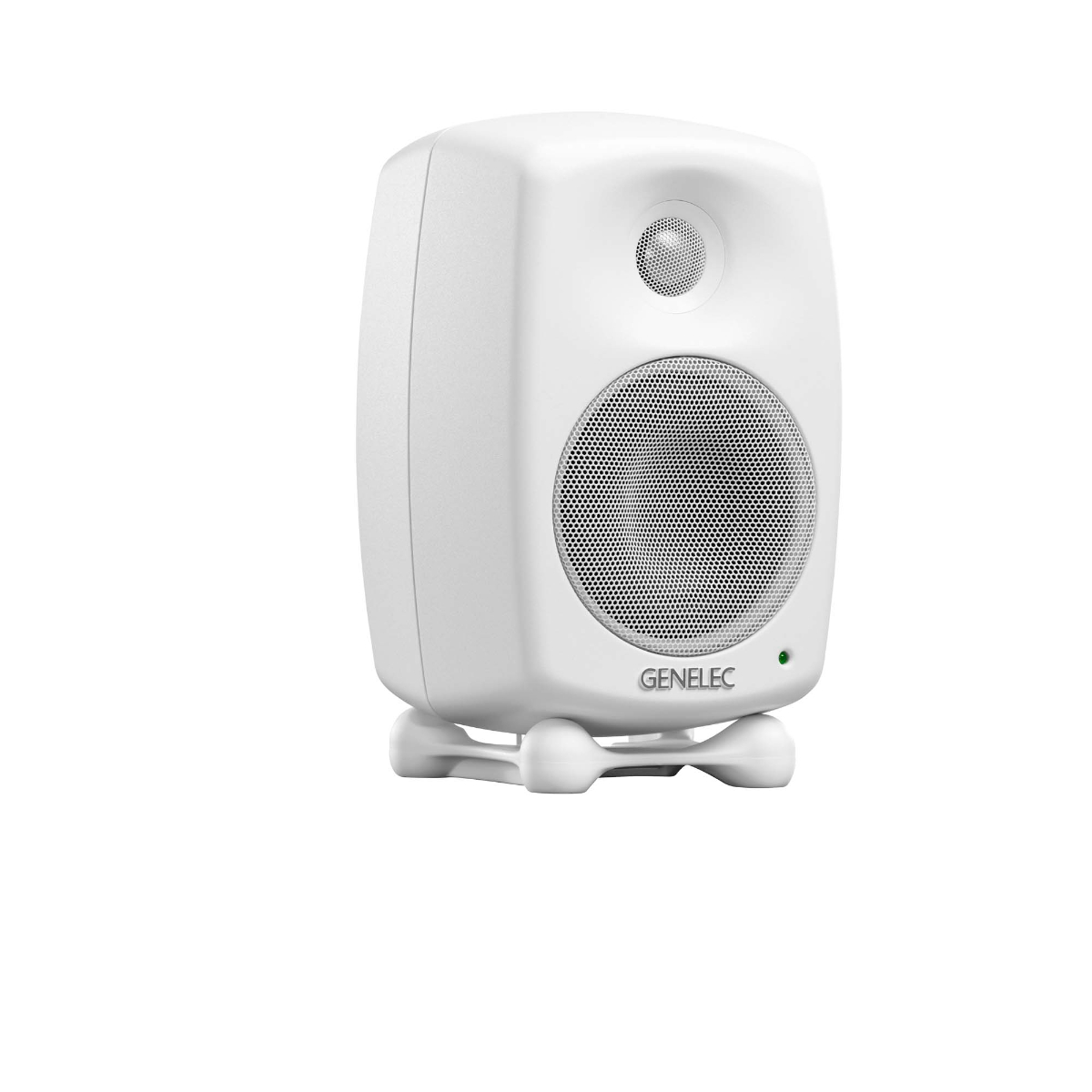

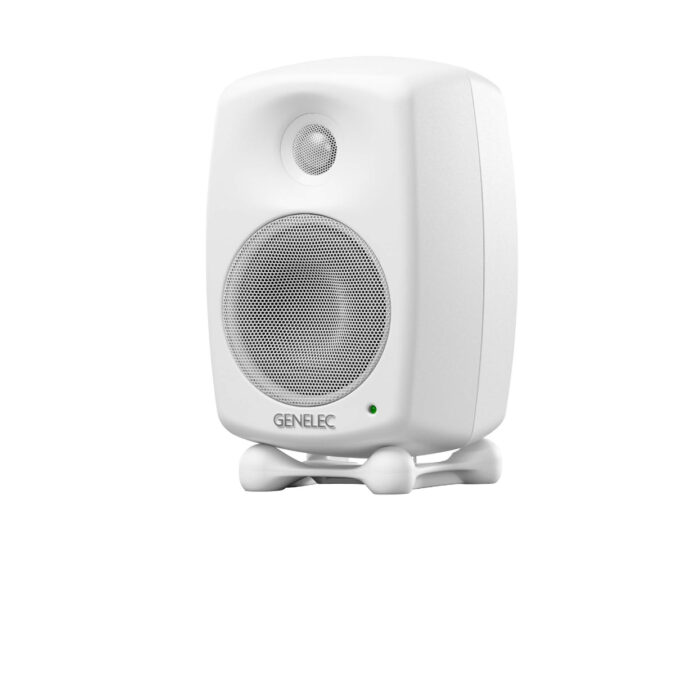

Styled in a white finish, Genelec 8320A is a single SAM-Series, 2-way active studio monitor designed to provide accurate mix referencing with software control capabilities for audio engineers, musicians, and producers in project studios, small control rooms, edit suites, or mobile setups. It features 100W of Class-D amplification driving a 4” woofer and 3/4” tweeter, producing a frequency response of 55 Hz to 23 kHz.

A proprietary waveguide enhances imaging, while the bass reflex port extends the low-frequency response. The die-cast aluminum enclosure is shaped to minimize diffraction and reflections. An XLR 3-pin jack delivers connectivity for a balanced analog source. Built-in signal overload protection enhances dependability and protects the speaker. Detailed frequency adjustments and automatic calibration can be performed via GLM (Genelec Loudspeaker Manager) software and the GLM User Kit (available separately). A selectable power-saving mode enables automatic power up/down via a signal-sensing circuit.

The 8320A offers multiple mounting options including an Iso-Pod isolation stand and threaded holes that are compatible with mic stands and various wall/ceiling brackets.

• 4″ woofer and 3/4″ tweeter
• 50W LF amp and 50W HF amp
• 55 Hz to 23 kHz frequency response (-6 dB), 66 Hz to 20 kHz frequency response (±1.5 dB)
• Proprietary waveguide utilizes DCW (Directivity Control Waveguide) technology for improved imaging and a wider listening area
• Bass reflex port provides extended low-frequency response
• Supports automatic calibration via software control
• Low-diffraction aluminum enclosure utilizes MDE (Minimum Diffraction Enclosure) technology
• Balanced analog input via XLR 3-pin connector
• ISS (Intelligent Signal Sensing) automatic power-saving mode
• Multiple mounting options: Iso-Pod and threaded holes that are compatible with mic stands and various wall/ceiling brackets
• Includes Iso-Pod isolation stand for vibration decoupling

Key Features:

• 4″ Woofer, 3/4″ Metal-Dome Tweeter
• 100W Class-D Amplification
• Proprietary Waveguide, Bass Reflex Port
• Supports Software Control & Calibration
• Low-Diffraction Aluminum Enclosure
• Balanced Analog XLR Input
• Signal Overload Protection
• Selectable Automatic Power-Saving Mode
• Multiple Mounting Options
• Includes Isolation Stand

To learn more about Genelec, Click Here

View more products from Genelec

• Monitor Type & Configuration: Active 2-Way
• Total Power Output: 100 W
• Tweeter: 1x 0.75" / 19 mm Metal Dome
• Woofer: 1x 4" / 10.5 cm Cone
• Frequency Range: 55 Hz to 23 kHz (-6 dB)
• Audio I/O: 1x XLR 3-Pin Balanced Input (10 Kilohms)
• Network I/O: 2x RJ45 Ethernet
• Number of Included Monitors: Single Monitor
• Enclosure: Bass-Reflex/Ported, Shielded
• Total Power Output: 100 W

Drivers:

• Tweeter: 1x 0.75" / 19 mm Metal Dome
• Woofer: 1x 4" / 10.5 cm Cone
• Amplifiers:
• HF: 1 x 50 W Class-D
• LF: 1 x 50 W Class-D

Performance:

• Frequency Range: 55 Hz to 23 kHz (-6 dB)
• Frequency Response: 66 Hz to 20 kHz ±1.5 dB
• Maximum Sound Pressure Level (SPL): 107 dB
• Total Harmonic Distortion (THD): 0.05%
• Maximum Input Level: +24 dBu
• Analog Input Sensitivity/Gain: -6 dBu (Continuously Variable)
• Self-Generated Noise: Less Than 5 dBA (at 3.28' / 1 m)

Signal Processing:

• Crossover Frequency: 2.9 kHz

Connectivity:

• Audio I/O: 1x XLR 3-Pin Balanced Input (10 Kilohms)
• Network I/O: 2x RJ45 Ethernet
• USB: No
• Wireless: No

Power:

• AC Input Power: 100 to 240 VAC, 50/60 Hz
• Power Consumption:
• 0.5 W (Standby)
• 3 W (Idle)
• 50 W (Maximum)
• Enclosure Material: Aluminum
• Dimensions (W x H x D): 5.9 x 9.5 x 5.6" / 151 x 242 x 142 mm
• Weight: 7.0 lb / 3.2 kg
