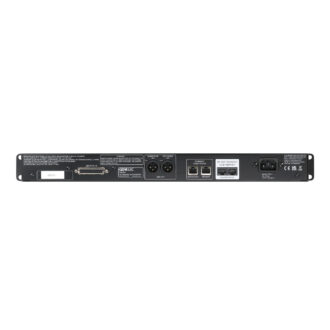

Genelec 9401A Audio-over-IP Networking System Management Device

Genelec 9401A Audio-over-IP Networking System Management Device

The Genelec 9401A System Management Device for Audio-over-IP Networking works by converting AoIP streams (ST2110, AES67, and Ravenna) into AES/EBU outputs, providing 16 channels of digital audio over the unit’s DB-25 connector.

The 9401A features a dedicated subwoofer AES output and a flexible auxiliary stereo AES output. The converter is fully compatible with Genelec’s UNIO Platform, which supports bridging in-room and personal headphone monitoring with maximal accuracy. It also offers full support for room adaption from the company’s powerful Genelec Loudspeaker Manager (GLM) software.

Genelec SAM Monitoring System

• The 9401A enables the smooth integration of Smart Active Monitors and Subwoofers (SAM) into SAM system layouts, from stereo to immersive.
• Multiple SAM Subwoofers can be connected to extend low frequency output for LFE or flexible Bass Management.

Immersive Formats

• A single 9401A supports all popular immersive formats, such as 9.1.6.
• Using several 9401A units allows the channel count to be extended further, supporting even larger configurations, such as 22.2.

Key Features:

• Multichannel AoIP Converter
• 16 Channels Digital Audio
• Sources: ST2110, AES67, and Ravenna
• Outputs: AES/EBU over DB25
• Dedicated Subwoofer Output (AES)
• Auxiliary Stereo Monitoring Output (AES)
• Supports All Popular Immersive Formats
• Fully Compatible with UNIO Platform
• Supports SAM Monitoring systems
• Supports GLM Software

To learn more about Genelec, Click Here

View more products from Genelec

General::

• Compatibility: Genelec Smart Active Monitors and Subwoofers
• Sampling Rate:
• 44.1 to 192 kHz
• Output Sampling Rate Follows Input Sampling Rate
• Bit Depth: 16-, 24-, or 32-Bit Resolution

Inputs / Outputs:

• Audio I/O: 1x DB-25 AES3 Output (AES59-2012 Pinout)

Power:

• Power Source: AC Input
• AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• Power Consumption:
• 12 W (Maximum)
• 2 W (Standby)

Physical:

• Mounting: 1x Rackmount
• Color: Black
• Cable Length: Not Specified by Manufacturer
• Dimensions: Not Specified by Manufacturer
• Weight: Not Specified by Manufacturer
