H2 Audio 5011 Helios 500 Series Equalizer (Used)

H2 Audio 5011 Helios 500 Series Equalizer (Used)

We have 2 modules available used.  Priced per module

Formed in 1969 by Dick Sweetenham Helios produced the first console for Olympic Studios in London.  Helios consoles famously produced some of the greatest rock ‘n’ roll records coming out of Londons British Invasion at that time. The Rolling Stones, Led Zeppelin, Black Sabbath, The Beatles, Jimi Hendrix, The Who, David Bowie, Elton John, ELO, Iggy Pop, Dire Straits, Supertramp, Motörhead.  Approximately 50 consoles were built in a 10 year span.  H2 Audio has respectfully recreated the very desirable early “Olympic Helios” style circuit  and fashioned the 2128 preamp and 5011 EQ into the 500 series form factor.  The pair of modules will get you into the neighborhood of the iconic vintage sound of the early 0011 channel strip from the early consoles.  Developed out of passion by Al Sutton who has a high standard as a producer/engineer as well as audio designer.  Sonic Circus gives H2 audio our vote of approval for keeping these timeless designs alive.

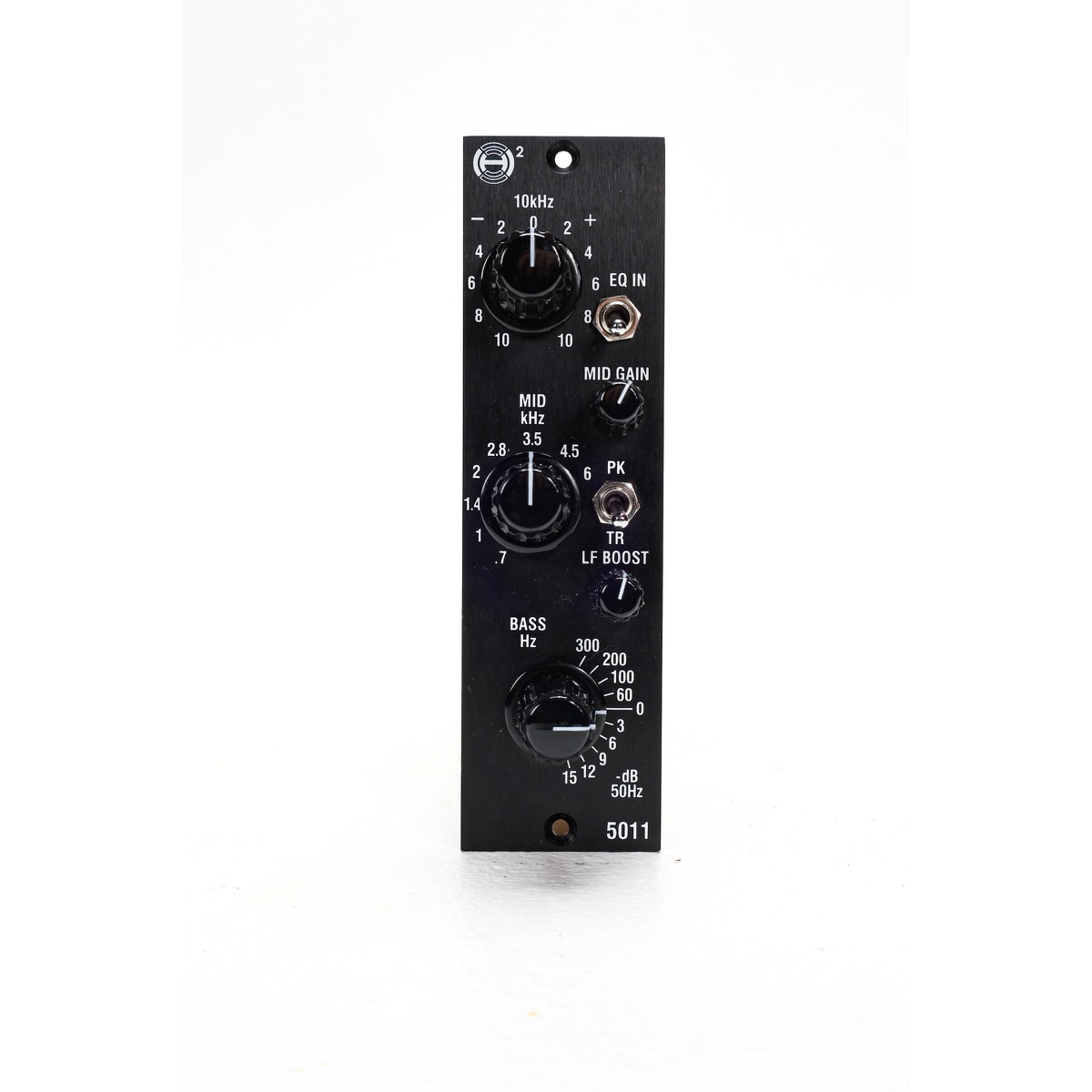

3-band EQ with a  boost/cut low band and a high frequency shelf fixed at 10kHz. The mid band offers boost or cut with selectable frequencies ranging from 0.7 to 6kHz. Boost/Cut is selected via a three-way toggle switch while the amount is controlled via the Mid Gain control.

Input Impedance: 15kΩ, electronically balanced
Maximum Input Level: 24dBu/27dBu (bypassed, engaged)
HF Band: 10kHz +/- 10dB Boost/Cut
Mid-band Frequencies: 0.7, 1.0, 1.4, 2.0, 2.8, 3.5, 4.5, 6kHz
Mid-band Boost: 16dB
Mid-band Cut: -17.5dB
LF Boost Frequencies: 60, 100, 200, 300Hz @15dB
LF Cut: 3, 6, 9, 12, 15dB @50Hz
