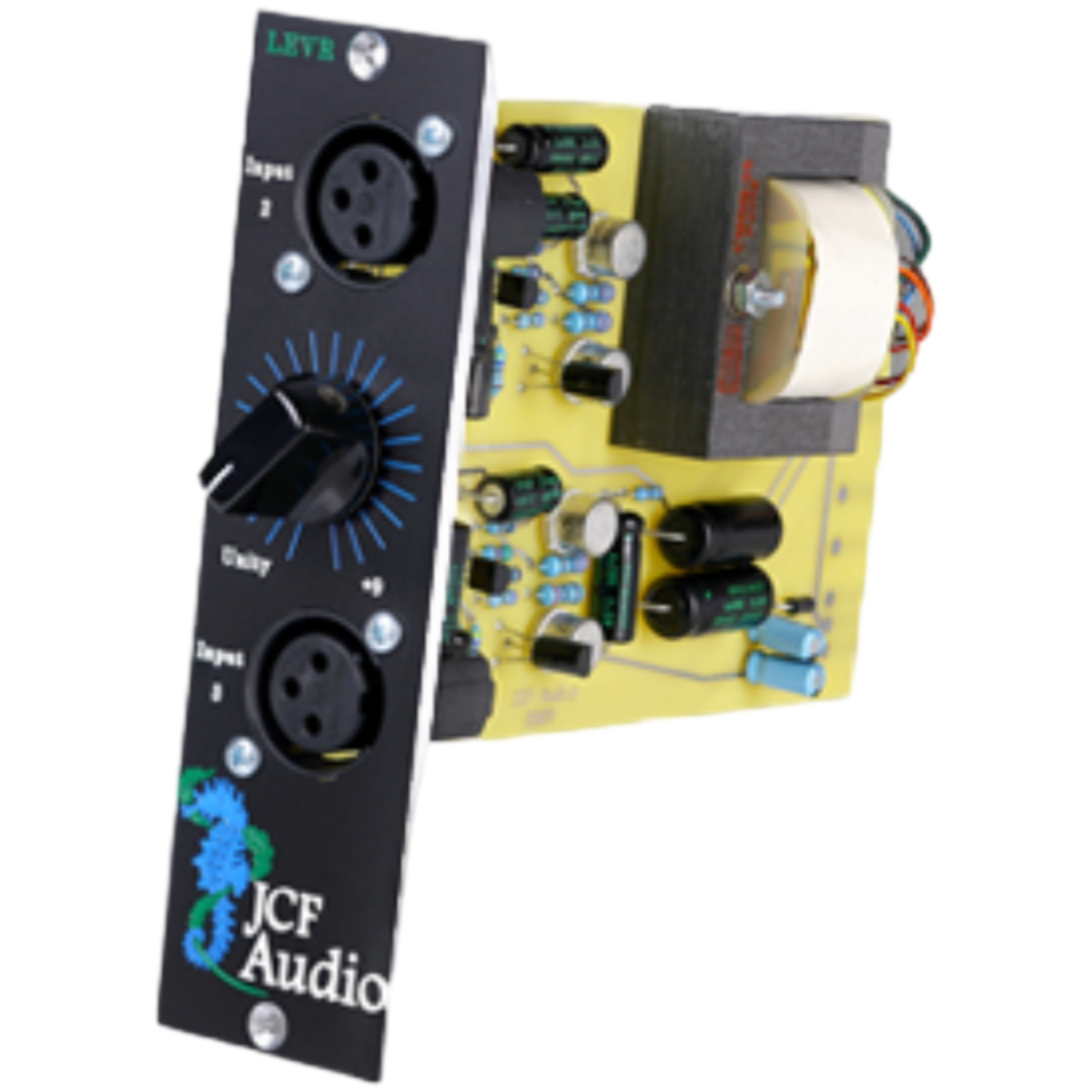

JCF Audio The LEVR Active Summing Module

JCF Audio The LEVR Active Summing Module

“Give me a LEVR strong enough and I’ll move the world.” is the saying. Well, close enough.

The JCF Audio – LEVR is an active summing module for the popular 500 Series format and by drawing from the discrete playbook it expands greatly on the language audio summing.

The LEVR offers an affordable, active, non-exclusive alternative to passive summing users which other solutions do not.

Due to it’s elegant design and low parts count, the LEVR will bring unparalleled musicality and resolution to your bus.

Features:

– Time-proven amplifier blocks
– Common 500 Series Modular Form Factor
– High quality capacitors used throughout
– ~9dB Front Panel Gain Adjust
– Low Power Consumption
– Opt. floating output with Cinemag CMOQ-2S
– Drive and punch of push-pull circuitry with the stability of single element inputs.
– Does not preclude use of passive-to-pre setups
– Two courtesy parallel front panel inputs

Condition	New
Brand	JCF Audio

Input Impedance:0 Ohms Balanced

Output Impedance:
- 200 Ohms Balanced
- (<50 Ohms with transformer option)

Frequency Response: -3dB @ 670kHz and ~ 3Hz

Minimum Recommended Load: 600 Ohms or greater

Maximum Output Level: +28dBu

Distortion: <.01% @ +4dBu, 0.025% @ +28dBu

Noise: -79dBu (BW lim 80kHz)

Gain: Variable from 0dB to ~+9dB

Power Supply And Connector:
- +/- 16v +/-20ma
- 500 Series compatible
- 15 pin .156" edge type
