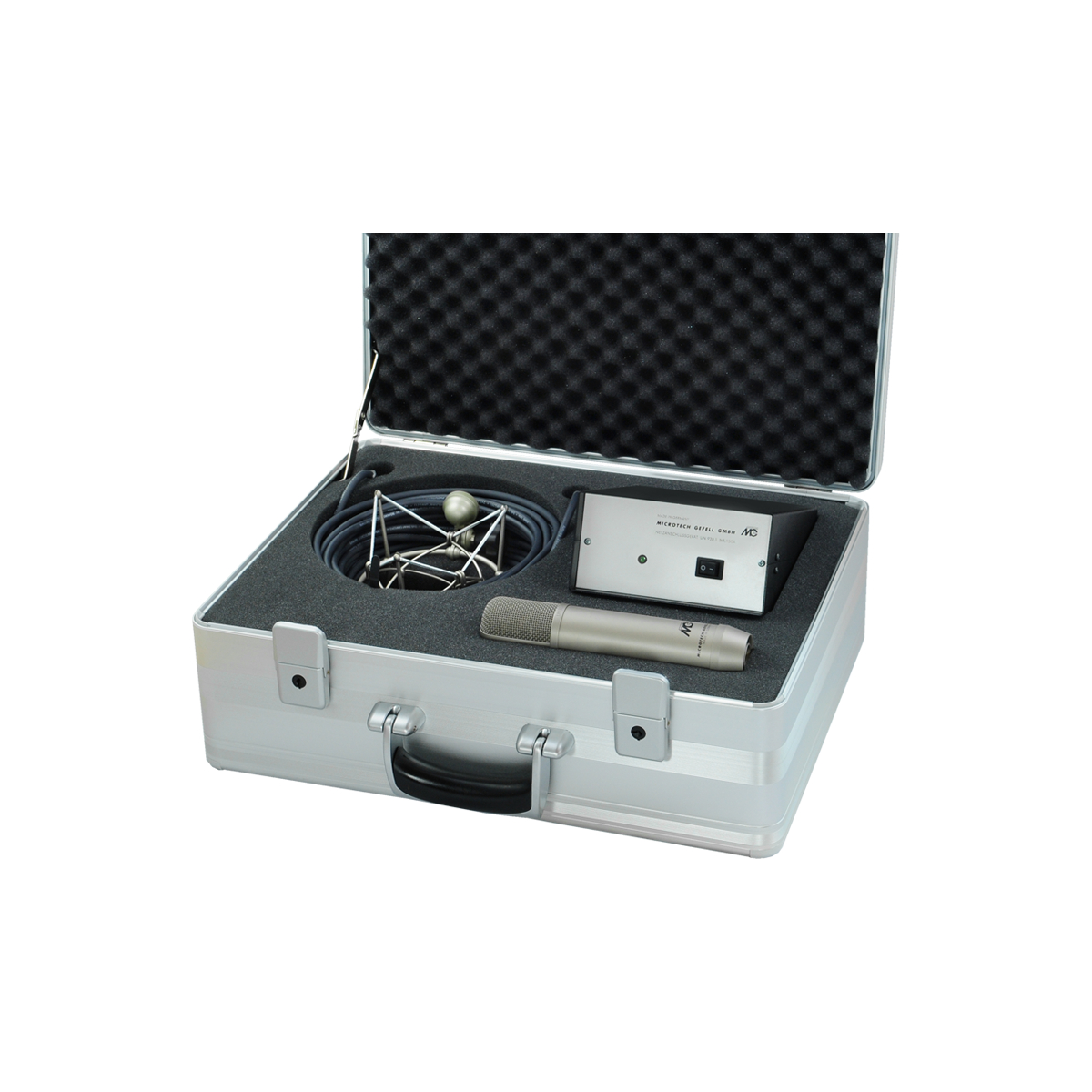

Studio Microphone M 92.1 S

The M 92.1 S studio microphone features our legendary original M7 capsule with PVC diaphragms which is renowned for its sound quality. This pressure gradient transducer uses two large diameter gold-plated plastic diaphragms. The M 92.1 S has a remarkable signal-to-noise ratio and high sensitivity. It has the typical fullbodied sound of tube microphones that are preferred by vocalists and soloists.

The vacuum tube preamplifier is a well-established design equipped with a pentode working as high triode selected for its sonic characteristics.

Features:

• Condenser microphone
• Cardioid
• Large diaphragm capsule
• PVC diaphragm
• Tube pre-amplifier
• With power supply

To learn more about Microtech Gefell, Click Here
View more products from Microtech Gefell

• Polar pattern - cardioid
• Acoustic operating principle - pressure gradient transducer
• Frequency range - 20 Hz to 20.000 Hz
• Sensitivity at 1 kHz - 19 mV/ Pa
• Output impedance - 200 Ohm
• SPL for THD 0,5 % - 118 dB
• Dynamic range - 103 dB
• DC power supply - 120 V-
• Anode current - 1 mA-
• Heater voltage - 5,8 mV-
• Heater current - 200 mA-
• Tube (low-noise) - EF 86
• Output connector - 7-pin, Tuchel C 70/A
• Weight - 430 g
• Length - 197 mm
• Diameter - 42 mm

• Noise level
• CCIR 468-4 - 25 dB
• DIN EN 60268-4 - 15 dB-A

• Signal-to-noise ratio
• CCIR weighted - 69 dB
• A-weighted - 79 dB
