Merging Technologies Anubis Audio Interface

Merging+Anubis

Flexibility, Power and Quality at your Fingertips Whatever your Challenge.

Merging’s 30 years of developments are all concentrated into the Anubis. This compact AD/DA is unique in its configurability to perform your mission without changing the hardware. Included is our new 32bit dual PreAmp topology, incredible headphone amps, D/A converters derived from our years of audiophile experience, all combined with a powerful low-latency mixing engine evolved from our 25 years of DAW design. Uniquely Modular by Software, Anubis is truly ONE OF A KIND.

Home Studio

Anubis can be used standalone or simultaneously with a DAW for front-end signal processing combined with the Music Mission DSP engine for ultra-low latency monitoring and/or tracking.

Big mixer with astonishing performance with all the sends, cues, snapshots and effects you need for single home recording or for multiple performers recording sessions. Connect your MIDI keyboard, record your instruments, balance your low latency mix, make your performers cues, use your favorite effects chains and route them in the Anubis Mixer.

No color and fully transparent PreAmps with astonishing A/D performance and a dynamic range of 139dB with gain scale from 0 to 78dB (boost). Our pristine D/A technology ensures that you hear what your recording, mixes and masterings deserves.

Rehearsal Space

Fully standalone operations without the need of network, tablet all can be operated from the Anubis Touchscreen high resolution display. We now say “Mix in the Box from the Box” wherever you are.

With its multiple CUES support you’ll be able to; prepare, mix, control those CUES, monitor them, talk to your performers and put them at ease so that you get the best performance out of your artists by using the Built-in EQ, Dynamics and Reverb.

Control all your mix and monitors locally from the Anubis TFT or by using one of our remote-control solutions. Adding more I/O has never been so simple, if you need to record more I/O simply add an AES67 interface and Anubis is in full control.

Live Stage

Connect multiple Anubis or AES67 compatible devices over your network and perform concerts or live recording.

Reliable and robust with easy AolP integration and with fully standalone operations support (no PC, no Mac, no tablet needed. Send your stage inputs to the FOH over IP or be a one man show and do it all yourself with footswitch control to recall your snapshots.

Every Anubis includes High Quality EQ’s, a full Dynamics with Limiting, compression, gate and expander and a built-in Reverb. More than that, those effects can be applied on the channel, in parallel or on your Outputs buses.

Mix & Master

Astonishing quality with support of high sampling rate such as 192 kHz (Anubis Pro edition) and up to 352.8kHz, DXD and DSD (Anubis Premium edition).

Multiple snapshots to recall any of your session’s configuration.

Immersive audio formats can be monitored and controlled with easy addition of RAVENNA or AES67 1/0.

Small desktop footprint with multi-touch display or with tablet or web browser remote control.

Flexible talkback and GPO options to manage all aspects of your session.

On-Air, Data Center, Post

AolP standards support makes it the perfect choice for Broadcast Studios, OB Vans or Editing Rooms. The Anubis’ compactness and robustness makes it the ideal choice for Location Recording and Live Events monitoring. Cost-effective and efficient interface for large scale AolP network installations when combined with the MAD Infrastructure pack for full ST2022-7, Virtual Machine and NMOS support.

Large count of supported surround formats for Film and TV Post Studios with bass management support and built-in crossover. Complete Sources and Monitors controls along with a Stream Listener feature for On Air
Monitoring.

Models – Hardware Flavors

MERGING+ANUBIS – Discover the Anubis hardware with the introductionary video.

Anubis has two variants: MERGING+ANUBIS and MERGING+ANUBIS SPS. SPS offers an additional network connection for either redundancy or to eliminate an external switch, while Anubis offers an EtherCon connector for extra connectivity reliability. Your choice of model depends on your usage profile. As with other Merging products, both versions are offered in Pro or Premium. If 192kHz is the limit for you, go for Pro. If you are into true Hi-Res Audio and work in DXD/384kHz or in DSD, you will need Premium.

Whichever flavor you choose, you get the same beautiful unibody case crafted from a single piece of aluminium with the same multi-touch display with all the same control possibilities. ONE OF A KIND – whatever the flavor.

Missions – Modular Applications

From the initial recording through to the final master, there are specific ‘missions’ that require precision and control. MERGING+ANUBIS gives you complete control to choose the ‘mission’ application to accomplish each stage – effortlessly.

If your mission of the day is to create a great mix, you need to be in complete control of your monitoring: reference monitors, nearfields, headphones, sources, surround mix, downmix, etc., so you will be in the Monitor Mission. If your mission is to record the band or rehearse for the next gig, you will be in the Music Mission controlling the extraordinarily powerful ultra-low-latency mixer and feeding individual cue mixes to each musician. Anubis gives you that “Mission Control” in a single, compact device that has unrivalled capabilities defined by the software application. MERGING+ANUBIS allows the user to choose the Mission Controller app that fits the task. ONE OF A KIND.

Music Mission

Imagine having a powerful fully-featured low-latency mixer that you can take anywhere. Imagine touch control of all your I/O connections and all your mixer functions. Imagine feeding individual cue mixes to each kand member. Imagine this being the front and back end of your favorite DAW. Imagine all this capability on stage with no DAW. Imagine this all happening with the quality of audio that you never dreamed possible, whatever the sample rate. Add your other Merging I/O units and see your system instantly expand into a monster whilst retaining full control from Anubis. This is what being on the ‘network’ really means. There is no need to dream; Music Mission can do this and so much more.

The Mixer

Based on mixing console topology, the Music Mission brings you a full mixer with an ultra-low latency DSP mixing engine totally embedded into the Anubis, fully controllable from the Anubis TFT without even the need of a DAW, tablet or external program.

A complete mixer and more.

Full channel strips from top to bottom. With local and remote control of preamps, EQ, Dynamics, Reverb, Sends, Auxes and features such as; Pan, Solo, Solo PFL, Mute, Linking, Grouping, Naming and more.

The Music Mission embeds multiple mixers which allows you to create from one to five different mixes for your performers’ cues or programs. Different input sources or a unique mix balance can be routed to any outputs, thanks to the flexible bus routing.

Added are 18 X Snapshots to save and fully recall any of your mixer, masters, songs or setups with the possibility to customize your mixer layouts.

Whether you are a single musician or professional engineer, we made sure that you can operate the Music Mission with ease, no matter your skill level.

Monitors & Cues

The Music Mission provides all the necessary Monitoring controls with; Ref, Dim, Mono, Downmix and exclusive monitoring Mutes. Along with A/B speaker set support, 2.1 and 2.2 with crossover and built-in crossfeed for headphones.

Advanced Monitor features with full control over your Performers’ Cues.

Create and Monitor your artists’ cues, interact and talk to any musician or all of them at once. The Music Mission includes monitoring features that are the equal of large scale consoles.

The Anubis Ultra-low Latency Cue Mixers are the perfect tools to put your musicians at ease and have them deliver the best performances possible. Cues can be used when recording, overdubbing, playing live or for independent program distribution.

We made sure that you can monitor with an ideal feature set and are able to listen any output while keeing full control over what comes out of your mixers.

Built-In Effects

Included free in every Anubis are 3 high quality effects that can operate at the highest PCM frequencies. Apply those effects to your monitoring. recordings or live performance on any Strips, Buses or Returns and recall at any time one of your 18 available effects snapshots.

Merging+EQ:

The Anubis Music Mission 4 band EQ is built on the existing and universally acclaimed quality of the Pyramix EQ-X and offers Extreme Definition filtering at sampling frequencies up to DXD (352.8kHz). EQ can be applied to any inputs (Local or Peered or to any bus output (e.g. for headphones or room correction). 21 EQ instances are available at any sampling rate.

Merging+Dynamics:

The Anubis Built-in FPGA Dynamics effect includes multi-modules. 1 X Gate, 1 X Compressor and 1 X Limiter that can be combined in series. With each module having its own parameter values. Limit your outputs buses or strip channel, apply compression to your strips, gate your snares or kick, compress and limit your vocals, compress your drums in parallel and more. The Dynamics can operate in Mono or Stereo mode (Link Dyn). 64 x DYNAMICS instances are available at 1FS (44.1/48kHz).

Merging+Reverb:

An ideal stereo reverb to put your performer at ease. Apply reverb ins our ultra-low latency mixes on vocal, guitars, drums and more. Dial in you parameters from a simple user-friendly interface and quickly give your performer a sense of space. Using low diffusion values will increase the reflexional effect and perform as a Delay.

The perfect solution for your performer’s CUE. Apply effects to your performers’ ultra-low latency cue mixes and give them the perfect listening environment with Equalization, Compression and Reverb on their channel inputs to get the best performance out of your artist. Those effects can be used in standalone, or can be routed back to a DAW for recording or for loopback processing applications.

3 SENDS for Externals

Users can also use their favorite external hardware. If you have a distortion pedal or an analog hardware EQ, the Music Mission has 3 SENDS for externals so that you can quickly integrate those into the mixer and apply those effects to any Channel Strip.

Monitor Mission

The concept of software based Missions allows for designing very versatile and highly dedicated applications, upgradable in time, and precisely targeting the requirements of today’s professionals. The Monitor Mission is the central node of all Music and Recording Studios, its extreme sound quality fulfills the essential requirement of all Mastering Studios. The large number of supported surround formats will please all Film and TV Post Studios and its AolP standards support makes it the perfect choice for Broadcast Studios, OB Vans or Editing Rooms. The Anubis compactness and robustness makes it the ideal choice for Location Recording and Live Events monitoring.

Monitor System

From mono to immersive setup, the Anubis Monitor Mission is the center of audio monitoring operations. The touch screen TFT, the dedicated buttons and the encoder enable direct access from basic to advanced functions of the speaker system, headphones and cues. This includes metering, bass management, room correction, delays and downmix on all 32 output channels. Audio I/O channels can be extended to other devices such as Horus, Hapi or any AES67/RAVENNA device via the Peering feature directly accessible from the Anubis screen. Updating workflows for immersive audio playback is as simple as it gets.

During a recording session, in addition to precision monitoring of the performance, a complete talkback circuitry enables easy communication. Any audio (over IP) sources including the built-in mic can act as a talkback input.

Monitor Calibration

Under the hood, Anubis embeds some DSP for audio filtering and mixing purpose. In a monitor controller, filters are very useful in many situatons such as room correction, bass management, active channel speaker
filtering, headphone adjustment, etc. Each output channel can be adjusted with a parametric EQ offering visual and precise adjustments.

On each speaker set, bass management may be engaged and the output channels may be shared and/or split. This offers wonderful flexibility for any speakers system setup. As an example LFE channels can be routed to the subwoofer in Speaker set A and the same subwoofer can drive the bass content in Speaker set B. You can then go from A to B with a simple click or via a footswitch event.

On top of filtering, delays up to 200ms may be added on the 32 output channels for Speaker position adjustment and/or video synchronization.

Sources Selection, Summing & Auto-Downmi

Whether monitoring through a Speakerset, Headphones or a Cue, you can listen to any available Source regardless of its format. The auto dowr mixer can make it fit whichever format you want to listen in. Anubis handles everything from mono all the way to Dolby 9.1.6, Auro and even NHK 22.2!

Anubis even allows to *on the fly’ monitor any Ravenna/AES67 stream present on the network without needing to configure it as a source. Ideal to keep large AolP networks well onto the radar.

Merging’s 30 years of leadership in pioneering technologies such as DSD/DXD means you get the ultimate digital audio summing right within your monitoring box.

A visual audio metering page gives an overview of all audio within the Anubis including monitors/sources name, channel set, trims, patch and peaks.

Beyond Audio

The audio quality and functionalities are the core of the product but
additionally you have :

• Web remote access
• Protools / Pyramix preamp remote control
• GPIO for record light, talk, presets recall, subwoofer cut and many more
• MIDI I/O in Anubis presented as a local MIDI port to DAWs present on the network
• Instant save/recall

In The Field

The modularity and versatility of the Monitor Mission has been proven by a variety of use cases. Here are some examples where this Mission has been used in an unexpected fashion:

• As an audio terminal for journalist thousands of kilometers from the mixing desk
• As an AolP sniffer on large network system
• Near the conductor in an orchestral recording environment
• Multi player coms and hub in a e-sport environment
• High-End HiFi world for its AD/DA converter quality and support of all audio format such as DXD and DSD

Commentary Unit Mission

The Commentary Unit Mission focuses on providing a very easy to use implementation of a broadcast commentary box, targeted at journalists commenting on all kinds of On-Air live events such as sport, esport, radio programs and more.

Once running the Mission, the unit offers monitoring and commentary features for one single or two commentators, with all necessary microphone, headphone and speakers’ connectivity, best in class mic preamp and headphone amp and AD/DA directly in the box.

While giving access to traditional Analog I/O, the Commentary Unit Mission implementation also focuses on purely AlP network audio integration, offering all required standards such as AES67, RAVENNA, ST2110, ST2022-7, NMOS as well as full remote access for operation and configuration through a full featured Web Interface and a Web Socket REST API.

The Commentary Unit Mission user interface is entirely customizable to allow immediate usage of the unit when in live environments with minimal training for the simplest, mistake proof operation.

Commentators

The Commentary Unit Mission offers support to one single or two commentators.

The first commentator has the choice to use the Mic 1 input or the unit’s Built-In microphone and the Headphone 1 output.

When enabled the second commentator uses the Mic 2 input and Headphone 2 output and can either share the unit touch screen with the first commentator or be only controlled through the Web Interface and/or the mapping of the unit physical buttons.

Monitoring

Both commentators are offered the monitoring of 8 stereo Programs, 2 mono Intercoms, their own Sidetone and the Sidetone of the other commentator.

Both monitoring busses are patched by default to the unit’s internal headphone outputs but can be also routed to other outputs through the network.

Any of these inputs can be hidden and renamed for a better and safer user experience. Various monitoring options are also available to customize the monitoring behavior when On-Air, when talking, when receiving signal from the Intercoms or when receiving commands from the broadcast console.

Commenting

When operating the unit, both commentators can control their access to the On-Air output, can Mute their microphone (Cough Cut) and can talk to up to 4 available Talkback outputs.

All these controls can be configured to be hidden, locked, latch/press-release, renamed, to offer an as safe and easy to operate experience. Various monitoring options are also available to customize the monitoring behavior when operating these controls.

Effects Processing

The Commentary Unit Mission offers separate effects processing for both commentators and both signal paths, the On-Air and the Monitoring (Talk and Sidetone) paths. EQ and Dynamics are available on these paths.

Merging+EO:

The Anubis Music Mission 4 band EQ is built on the existing and universally acclaimed quality of the Pyramix EQ-X and offers Extreme Definition filtering at sampling frequencies up to DXD (352.8kHz).

Merging+Dynamics:

The Anubis Built-in FPGA Dynamics effect includes multi-modules. 1 X Gate, 1 X Compressor and 1 X Limiter that can be combined in series With each module having its own parameter values.

Remote Control

The Commentary Unit Mission offers various ways of controlling both commentators’ actions:

• The unit touch screen can, optionally, be shared by both commentators
• All the unit’s physical buttons can be custom mapped to any commentator’s actions
• A fully featured Web Interface allows for controlling both commentators separately, as well as giving access to all parameters of the unit for remote technical operators
• AREST API permits taking full control of the unit through web socket for the complete broadcast orchestrator integration
• GPI/O commands can be mapped to all functionalities

Customize

The Commentary Unit Mission can entirely be customized to simplify the interaction with the operator.

Programs and Intercoms can be renamed or hidden, while being still accessible remotely by a technical operator.

On-Air, Mute and Talkback buttons can be renamed or hidden.

Monitoring behavior of all buttons have various settings to accommodate most operator’s habits.

Anubis Plugins

Optional Plugins For Merging+Anubis

Anubis can host optional plugins developed by Merging, available for purchase on the Merging Online Store.

Merging+Deesser

The Merging + Deesser comes as an option that can be purchased from the Merging Online Shop.

At purchase a key will be issued and needs to be entered in the Merging License Manager from either: MAD, VAD, ANEMAN or MT Discovery to activate the plugin in the Music Mission.

Add-on Anubis plugin used to attenuate, reduce sibilance or harsh high-frequency sounds that come from dialogue, vocals, instruments or percussions. Sibilance is a type of sound that often seems harsh in the context of a recording. Typically, “S and *T* are the worst offenders. The Merging+Deesser can also be used to remove the harshness of drums cymbals (Overhead mics).

Once purchased and authorised the Merging+Deeseer is available in the ultra-low latency Mixer of Anubis and ideal for singers tracking vocals live, it can also be used on mixes to remove harshness.

• Intuitive UI and ease of operations
• Supported from 44, Iktz up to 352. 8kt. (OXD) and 38AkHt.
• Listen feature to isolate and monitor the target sibilantfrequencies
• Multiple Merging+Deesser instances supported per Anubis (from 4 to 20 depending of resources)
• 18 Snapshots including 6 Factory Snapshots

Merging+Blackhole

The Merging +Blackhole comes as an option that can be purchased from the Merging Online Shop.

At purchase a key will be issued and needs to be entered in the Merging License Manager from either: MAD, VAD, ANEMAN or MT Discovery to activate the plugin in the Music Mission.

The Eventide Blackhole add-on for Anubis is a classic Eventide reverb effect capable of producing huge spaces and out-of-this-world soundscapes.

Most reverbs are earth-bound and constrained by the physics of the real world. The Eventide Blackhole reverb breaks the rules by allowing you to create virtual spaces that could never exist in reality (or at least the one we inhabit). At large sizes, its soft attack and lingering, harmonic tails allow it to really shine on guitars, strings, and pads. At small sizes, those very same qualities can add an angelic sheen to vocals or turn a simple drum track into an otherworldly rhythm section.

The Blackhole user interface is designed with an emphasis on user control and playability. Specifically, the knobs are easily adjusted with an up-and-down motion of the finger, and all controls produce a smooth change in the audio, allowing you to glitchlessly shape the effect as you desire.

Blackhole was designed to give you extensive control, allowing you to craft your own signature sounds. Included with Blackhole is a set of 18 Anubis Snapshots presets.

• Reverb effect with extraordinary possibilities
• Algorithm from the Eventide DSP4000 and H8000 hardware
• Intuitive UI and ease of operations
• Supported from 44.1kHz up to 352.8kHz (DXD) and 384kHz
• Modulation and feedback adjustable resonance parameter
• 18 Snapshots including 6 Factory Snapshots

3rd Party Add-Ons

Anubis opens to third party add-ons

The power of Anubis can be fully realized when partnered with other trusted suppliers that enhance the productivity and utility of the appropriate Mission.

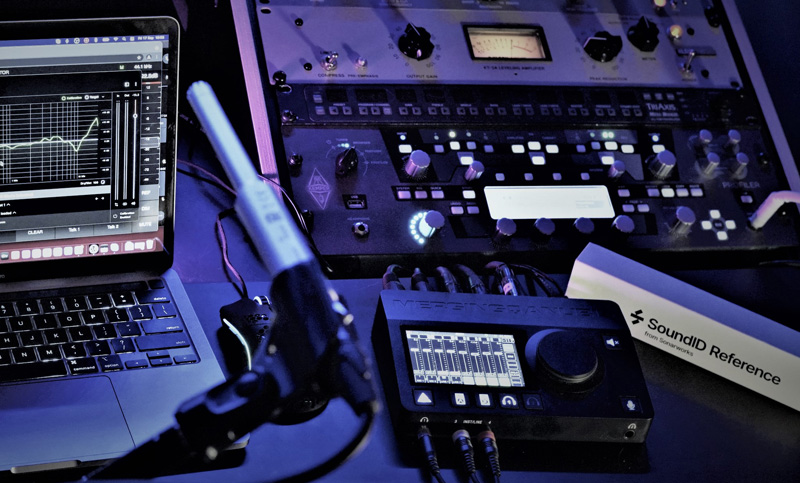

SoundID Reference from Sonarworks

While SoundID Reference standalone software offers 3 different filter types (low latency, mixed and linear phase), Anubis enables SoundID Reference correction using Pyramix acclaimed EQ-X filter topology.

EQ-X is a mastering EQ used since many years by our mastering customers on thousands of award winning records around the world.

The state space filter design of this Extreme Definition Equalizer has been specifically optimized to deal with the highest audio resolutions while still permitting very low noise & distortion, typically offering a THD+N of better than -110dB, throughout the entire audible (and even non-audible) range. Of course, this new digital filter’s topology, while designed with high sample rate in mind, also offers the extra benefits and low noise to 1FS equalization.

Anubis helps you mix in the right listening environments for your different delivery requirements.

SoundID Reference can export to Anubis different corrections curves for the room response to be flat or match a Dolby Atmos Music target, a user custom target or translation check curves (emulating cars, cellphones, laptops, etc…).

At a touch of a button Anubis can recall the required correction, for quick comparisons or changes.

All speaker sets of the same control room can be corrected.

Anubis remembers the selected correction for each speaker set and activates it as the user toggles between near fields, mid fields and any other alternate speaker set.

Whether using the monitoring or the music mission, Anubis is the perfect headphones cue station. Anubis can now run a lot more SoundiD Reference corrections at the same time.

For example, a main stereo speaker set can be corrected in the control room, plus 5 simultaneous different headphones. Or a 7.1.4 speaker set plus 3 different headphones. And even a 9.1.6 speaker set plus 2 different headphones cues.

The process is as simple as this: purchase the relevant version of SoundID Reference from any Sonarworks dealer or online store, get Anubis from your favorite Merging dealer and you are ready to go!

Should you wish to run a SoundID Reference multichannel correction onto Anubis, head to the Merging online store in order to purchase an Anubis Sonarworks multichannel license.

Are you a fan of Sonarworks headphones correction? Treat yourself to one of the best headphones amps used by top engineers around the world.

MERGING+ANUBIS is the first hardware to enable a SoundID Reference correction outside of the computer. No need to worry about inserting SoundID Reference plugin or software on the DAW anymore.

SoundID Reference is a speaker and headphone calibration software from Sonarworks removing unwanted coloration and delivering accurate studio reference sound. With SoundId Reference you can stop second-guessing yourself and trust that every mix will translate. You’ll hear a flat, consistent sound wherever you work from.

Anubis now supports SoundID Reference Multichannel corrections all the way to Dolby Atmos 9.1.6!

Give your studio/ OB van/ headphones a SoundID correction in no time.

For those wanting to calibrate their rooms manually, Anubis offers 336 EQ bands with trims and delays!

Since Anubis is meant to be the center of the studio, having SoundiD Reference correction running brings confidence that no matter which source you are listening to (DAW, Computers, live mics, etc…) you can be confident SoundID Reference correction will be applied at the lowest possible latency.

• Less than 0.35ms at 44.1/48 kHz
• Less than 0.19ms at 88.2/ 96kHz
• Close to ZERO! at 176.4/ 192kHz/ DXD and 384kHz

Use Cases

Example setups with MERGING+ANUBIS

The Monitor Mission mode can be configured according to your needs. Here are some diagram examples typically used in a professional studio setup. Anubis small size also means you can bring your control room with you when on location.

Surround And Atmos Support

• Expandable with an additional RAVENNA/AES67 device for more monitor outputs and/or source inputs
• Surround support up to 22.2 along with all the Atmos support from 5.1.4, 7.1.4 all the way up to 9.1.6
• Monitoring control over all or each of your speakers
• The complete monitoring features along with Downmix, Speakers Alignment, EQ, and Bass Management support

Typical Music Setup

• Directly record voice, guitars, bass, keyboard, or any other instrument or source and benefit from an ultra-low built-in mixer
• All the Monitoring features for stereo speaker setup, alternate speakers as well as 2.1 and 2.2 setups
• MIDI 1/O Support or footswitch support, 2 x headphones high-end quality, built in talkback, and more
• External inserts or sends support, to integrate analog gear into your built-in mixer or master with Anubis

Typical Monitoring Setup

• Total control over all your monitoring with advanced features
• Configurable Sources and Monitor sets
• 2 x Headphones High End quality, 2 x talkback circuitry supp
• Monitors EQ, Bass Management, Delay, Trim, Summing, Downmix and more

Multiple Performers Setup

• Multiple performers’ setup where each one has their own Anubis (individual studio booth)
• The engineer distributes a foldback mix to each performer who then benefits from their own Anubis to make their individual balance
• Each performer has their own cue control by mixing their own inputs with the foldback mix and can benefit from more processing power (Reverb, EQ, Dynamics)
• The Music Mission is recommended for this setup

Single Anubis With Performers

• Record up to 4 inputs simultaneously with a single Anubis, make and distribute Cues for all your performers (a single Anubis supports 5 x CUES)
• Add an additional RAVENNA/AES67 interface on your network and an additional performer (Drums) if more I/O is required
• The engineer prepares and distributes the CUE mix for all performers, each one of them can adjust their own Cue Mix balance using a phone or tablet

Easy Expandable I/OS

• Add any additional RAVENNA/AES67 compatible device and immediately expand your l/O count
• Have total control over those I/O’s
• All the Monitoring and Music Mission features sets applies to those additional I/O

Easily Expandable I/OS With Anubis SPS Model

• Add any additional Ravenna/AES67 compatible device and immediately expand your I/O count
• Built in switch mode removes the need for a Network Switch for small systems

ST2022-7 Seamless Protection Switching

• Anubis SPS includes no compromise ST2022-7 class C and NMOS compliance and features two network ports
• It provides the most efficient and cost-effective solution to AolP stream monitoring and management
• SMPTE ST2110: Anubis SPS meets the demanding requirements of JT-NM and is self-certified

Anubis SPS Switch Setup

• Anubis SPS can be used in switch mode instead of the redundant ST2022-7 model
• Removes the necessity to have a network switch in scenarios where a DAW simply needs to be connected to a Horus, Hap Anubis
• Easy expandable solution allowing even standalone support for 1/O expansion
• Allows remote control quick access

Unite & Peering, An Easy Pass to the AoIP World

• Anubis and a Merging Driver is all you need to UNITE and simplify your Ravenna/AES67 network streams connectivity
• UNITE is an automatic AolP Stream patching feature that allows a user with one mouse click to connect all I/O between. The Anubis and the System/Driver.
• Expand your I/O by adding a Merging Ravenna/AES67 interface on your network or directly connect it to Anubis.

Drivers for All

• Merging provides Drivers for different platforms so that you can run Anubis with any PC, Mac or Linux system
• PC: Merging Audio Device (MAD)
• MAC: Ravenna/AES67 Virtual Audio Device (VAD)
• Linux: Ravenna/AES67 ALSA Audio Driver

Music Mission Monitoring Support

Monitor Mission Monitoring Support





For more info about Merging Technologies, visit: http://www.merging.com

View more products from Merging Technologies

Brand	Merging Technologies
Condition	New
Variations:	Anubis Pro, Anubis Premium

• General:
• Case Material: Premium machined and anodized aluminium
• Dimensions: 200 x 128 x 40mm
• Weight: 950 g
• Top Panel Display: Capacitive Touch, TFT LCD 800 x 480 pixels resolution 16:9 Aspect ratio
• Rotary Encoder: Anodized aluminum + Black rubber O-ring
• 7 x Hardware + Soft buttons: RGB LEDs
• Bottom Panel Mic stand thread: 3/8" 16BSW European thread incorporated
• Software:
• Windows Driver/OS:
• Windows 7 64bit / Windows 8.1 64bit: RAVENNA ASIO v12.0 (ASIO 2.2)
• Windows 10 64bit: MAD v2.0 (Merging Audio Device)
• Mac Driver/OS: VAD Core Audio for macOS 10.8.5 or higher (Intel & M1)
• Linux Driver/OS: ALSA Linux driver for RAVENNA/AES67
• ANEMAN: Version 1.1.7 and above
• Microphone Inputs 1-2 (Combo):
• Connector Type: Combo Locking Neutrik XLR / TRS
• Dynamic Range Mic / Mic Boost: 137 dB / 128 dB (A-weighted, typ.)
• Max Input level Mic Pad / Mic / Mic Boost: +24 dBu / +12 dBu / +0 dBu
• Frequency response +0/-0.2dB @ fs = 48 kHz: 9 Hz - 22 kHz
• Frequency response +0/-3dB @ fs = 96 kHz: 9 Hz - 46 kHz
• Frequency response +0/-3dB @ fs = 192 kHz: 11 Hz - 94 kHz
• THD+N Preamp + A/D 1kHz @ 0 dBFS: < -110 dB (0.0003%)
• Interchannel Crosstalk @ 1kHz: < -130 dB
• Equivalent Input Noise Mic / Mic Boost (150Ω Source): < -125 dBu / -128 dBu (A-weighted, typ.)
• Common Mode Rejection Rate (20 Hz - 20 kHz): > 80 dB
• Input Impedance (Differential): ~ 10kΩ
• Gain Range (Software controlled): 0 dB to +66 dB
• Gain Step Coarse / Fine: 0.5 dB / 0.1 dB
• Phantom Power (Software Switchable Per Channel): +48V
• Phase Reverse (Software Switchable Per Channel): Yes
• Low Cut filter (Software Switchable Per Channel): -12 dB/octave, 80 Hz
• 5° low-end in-channel ø deviation pt: Mic: 9 Hz
• Interchannel phase 10 Hz - 100 kHz: < ±2°
• Line Inputs 1-2 (Combo):
• Connector Type: Combo Locking Neutrik XLR / TRS
• Dynamic Range, ref +24 dBu: 139 dB (A-weighted, typ.)
• Max Line Input Level: +24 dBu
• Input Impedance (Differential): ~ 10kΩ
• THD+N Preamp + A/D 1kHz @ 0 dBFS: < - 104 dB (0.0006%)
• Interchannel Crosstalk @ 1kHz: < -140 dB
• Sensitivity Range for 0 dBFS (Software controlled): +24 dBu to -42 dBu
• Common Mode Rejection Rate (20 Hz - 20 kHz): > 80 dB
• 5° low-end in-channel ø deviation pt: Line: 9 Hz
• Interchannel phase 10 Hz - 100 kHz: < ±2°
• Instruments / Hi-Z & Line Inputs 3-4:
• Connector Type: 1/4" TRS Female
• Dynamic Range, ref +18 dBu: 136 dB (A-weighted, typ.)
• Max Input Level: +18 dBu
• Input Impedance (Single ended / Differential): ~ 1MΩ / ~ 2MΩ
• Gain Range (Software controlled): 0 dB to +66 dB
• THD+N Preamp + A/D 1kHz @ 0 dBFS: < - 111 dB (0.0003%)
• Interchannel Crosstalk @ 1kHz: < -150 dB
• Sensitivity Range for 0 dBFS (software controlled): +18 dBu to -48 dBu
• Common Mode Rejection Rate (20 Hz - 20 kHz): > 70 dB
• 5° low-end in-channel ø deviation pt: Inst/Line: 2 Hz
• Interchannel phase 10 Hz - 100 kHz: < ±1°
• Main Outputs 1-2:
• Connector Type: Neutrik XLR Male
• Dynamic Range: 123 dB (A-weighted, typ.)
• Max output Level (Differential / Single ended): +24 dBu (12.2 Vrms) / +18 dBu (6.1 Vrms)
• Frequency response +0/-0.2dB @ fs = 48 kHz: 6 Hz - 22 kHz
• Frequency response +0/-3dB @ fs = 96 kHz: 2 Hz - 46 kHz
• Frequency response +0/-3dB @ fs = 192 kHz: 2 Hz - 92 kHz
• Output Impedance: < 70Ω
• THD+N 1 kHz @ 0 dBFS: < - 110 dB (0.0003%)
• Output Level Matching: ±0.01 dB
• Attenuation Range (Software controlled): - ∞ dB to 0 dB
• Gain Step / Precision: 0.5 dB / ±0.05 dB
• Line Outputs 3-4:
• Connector Type: 1/4" TRS Female
• Dynamic Range: 123 dB (A-weighted, typ.)
• Max output Level (Differential / Single ended): +24 dBu (12.2 Vrms) / +18 dBu (6.1 Vrms)
• Output Impedance: < 70Ω
• THD+N 1 kHz @ 0 dBFS: < - 110 dB (0.0003%)
• Output Level Matching: ±0.01 dB
• Attenuation Range (Software controlled): - ∞ dB to 0 dB
• Gain Step / Precision: 0.5 dB / ±0.05 dB
• Headphones:
• Headphone Jacks: 2 Independent 1/4" TRS Female Stereo 6.3 mm
• Dynamic Range (A-weighted, typ.) High / Low: < -122 dB / - 117 dB
• Max output Level High / Low: 17.1 dBu / 7.8 dBu
• Frequency response +0/-0.2dB @ fs = 48 kHz: 6 Hz - 22 kHz
• Frequency response +0/-3dB @ fs = 96 kHz: 2 Hz - 46 kHz
• Frequency response +0/-3dB @ fs = 192 kHz: 2 Hz - 92 kHz
• Output Impedance: < 0.035Ω
• THD+N 1 kHz @ 0 dBFS High / Low: < -108 dB (0.00039%) / -110 dB (0.0003%)
• Attenuation Range (Software controlled): - ∞ dB to 0 dB
• Gain Step / Precision: 0.5 dB / ±0.05 dB
• A/D - D/A Conversion:
• Supported Sample Rates PRO: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
• Supported Sample Rates PREMIUM: 44.1 kHz up to 352.8 kHz (DXD), 384 kHz, DSD64, DSD128 & DSD256
• Bit Depth Per Sample: 32
• A/D Latency Sharp Short delay @ 44.1kHz to 96kHz: 5 samples
• A/D Latency Sharp Short delay @ 174.6kHz to 192kHz: 6 samples
• A/D Latency Sharp Short delay @ 352.8kHz to 384kHz: 7 samples
• D/A Latency Sharp @ 44.1kHz to 384kHz: 35 samples
• D/A Latency Slow @ 44.1kHz to 384kHz: 9 samples
• D/A Latency Apodizing @ 44.1kHz to 384kHz: 35 samples
• D/A Latency Brickwall @ 44.1kHz to 384kHz: 35 samples
• Complementary I/O:
• Ravenna/AES67 (Gigabit Ethernet): Locking EtherCON compatible with standard RJ45 connectors
• Built-in Talkback microphone: Mono omnidirectional CMOS/MEMS membrane technology
• GPI/MIDI Input: 1/4" TRS Female
• GPO/MIDI Output: 1/4" TRS Female
• Power:
• Power Supply Voltage (DC): 9V to 15V DC
• Power Supply Connector Type: Barrel jack, int. 2.5mm/out. 5.5mm, with locking function
• Power Consumption (Typ.): 15W
• P-o-E (Power Over Ethernet): IEEE 802.3at (PoE+) class 0 Power-over-Ethernet standard
