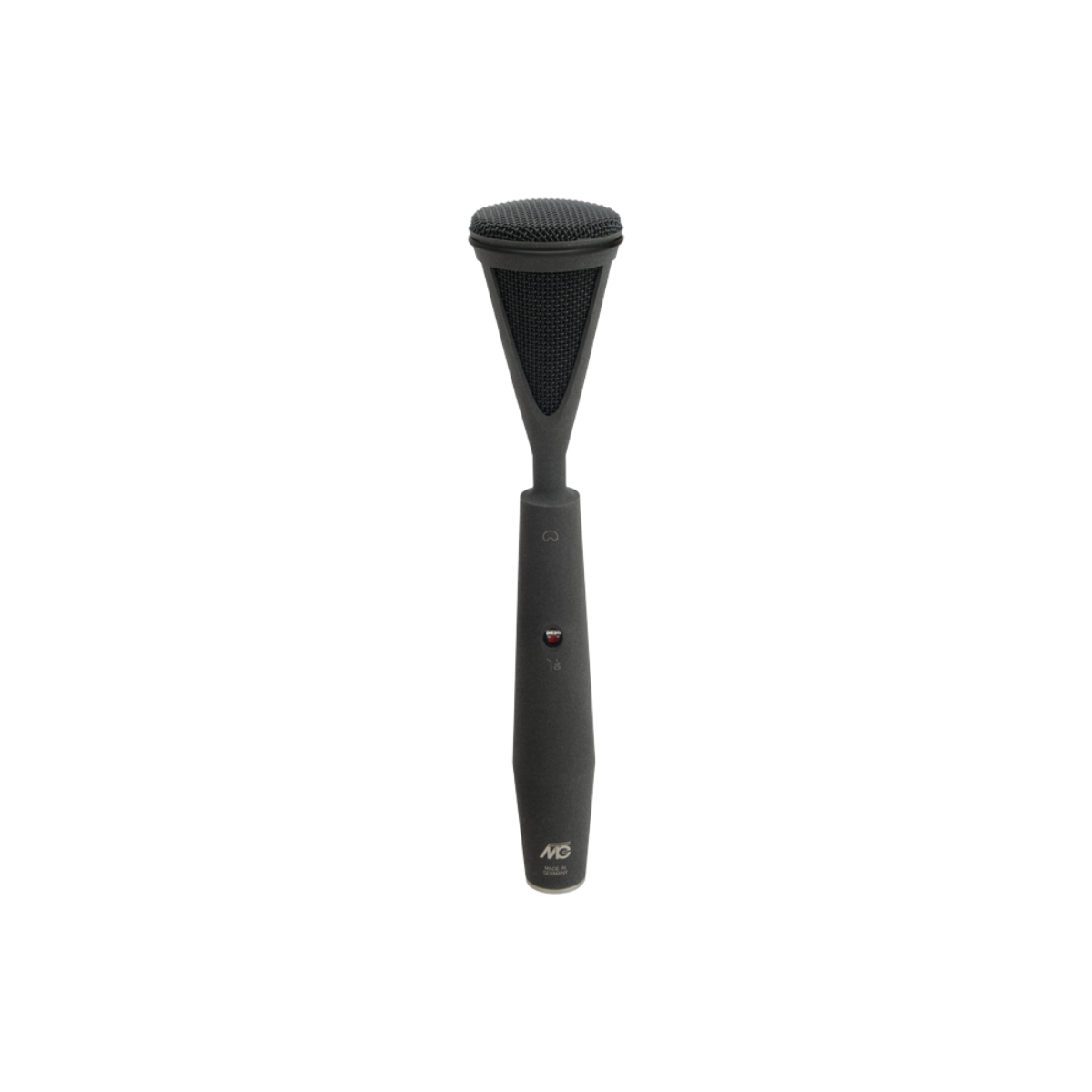

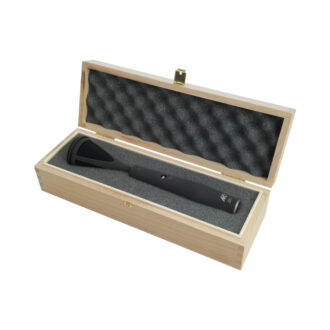

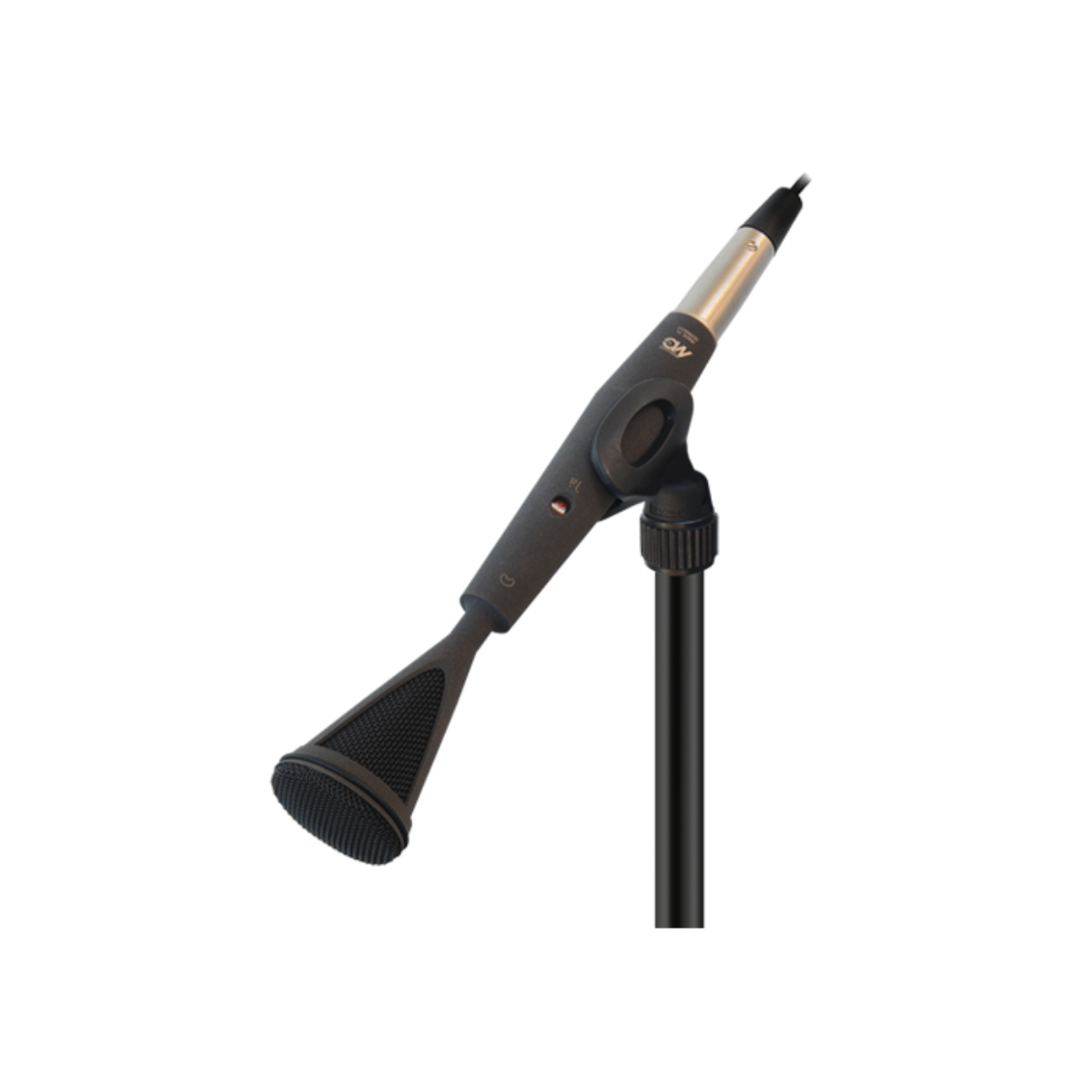

Microtech Gefell M 900 Condenser Studio Microphone Matte Black

Microtech Gefell M 900 Condenser Studio Microphone Matte Black

The M 900 has been developed for recordings of instrumental and vocal soloists in the professional market. Its well balanced frequency response in the free field as well as in the diffuse field and the appropriate distinct characteristics ensure clean and colourless recordings of any sound sources with good selectivity. A distance of less than 8 to 12 inches, which is recommended as minimum distance between lips and microphone, causes a coloration with an emphasis of lower frequencies, the proximity effect. An acoustic filter integrated in the protective basket reduces the pop sensitivity.

Features:

• Condenser microphone
• Cardioid
• Large diaphragm capsule
• PE diaphragm
• Transistor pre-amplifier
• Phantom powering P48

To learn more about Microtech Gefell, Click Here
View more products from Microtech Gefell

• Polar pattern - Cardioid
• Acoustic operating principle - Pressure gradient transducer
• Frequency range - 20 Hz to 20.000 Hz
• Sensitivity at 1 kHz - 17 mV/Pa
• Switch position "reduced bass roll-off" at 90 Hz -10 dB
• Output impedance - 150 Ohm
• SPL for THD 0,5 % - 133 dB
• With 10 dB preattenuation 143 dB
• Dynamic range - 120 dB
• Current consumption - 3 mA
• Output connector - XLR-3M
• Weight - 229 g
• Length - 218 mm
• Surface NEXTEL® S 139

• Noise level
• CCIR 468-4 - 21 dB
• DIN EN 60268-4 - 13 dB-A

• Signal-to-noise ratio
• CCIR weighted - 73 dB
• A-weighted - 81 dB

• Diameter
• capsule - 47 mm
• preamplifier - 28 mm
