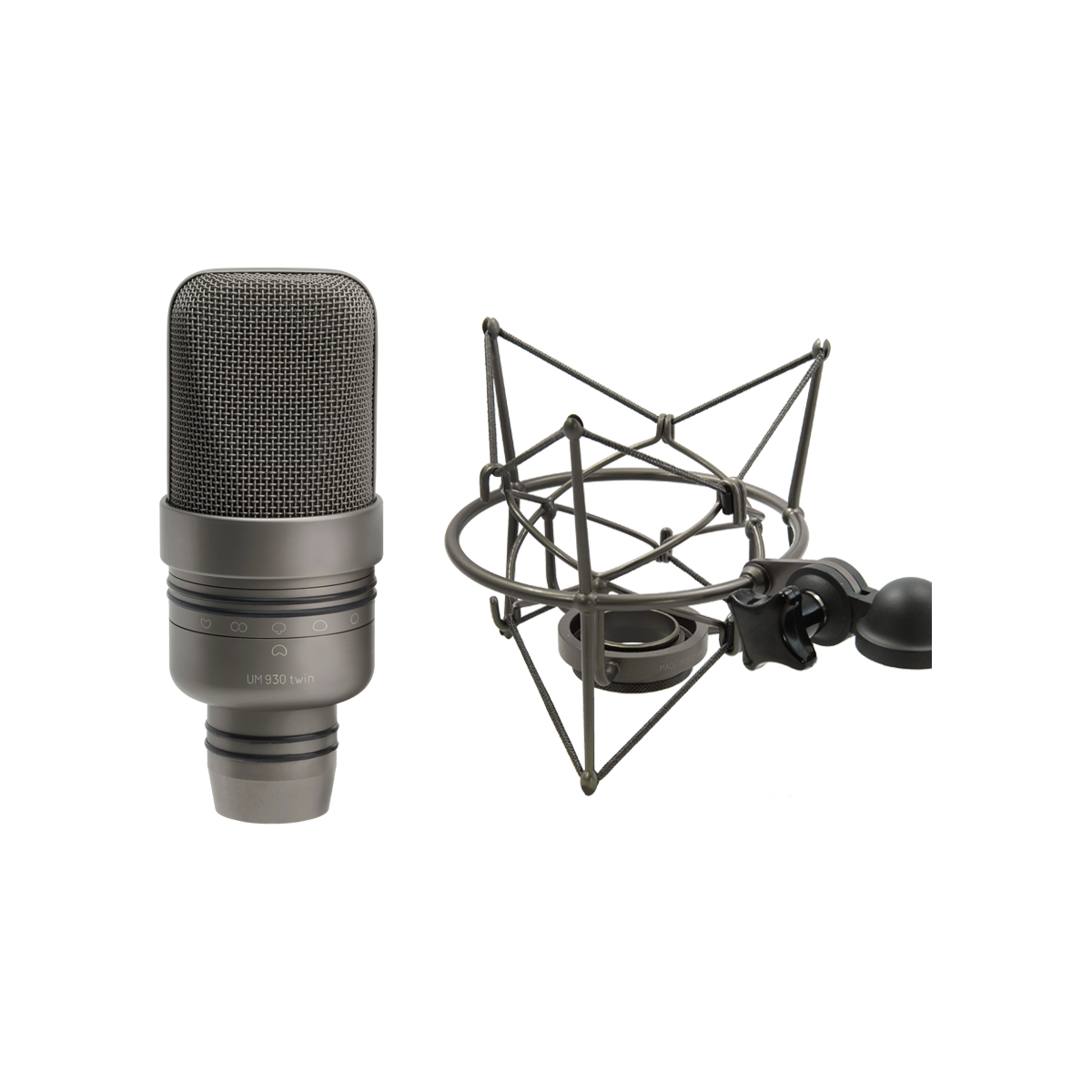

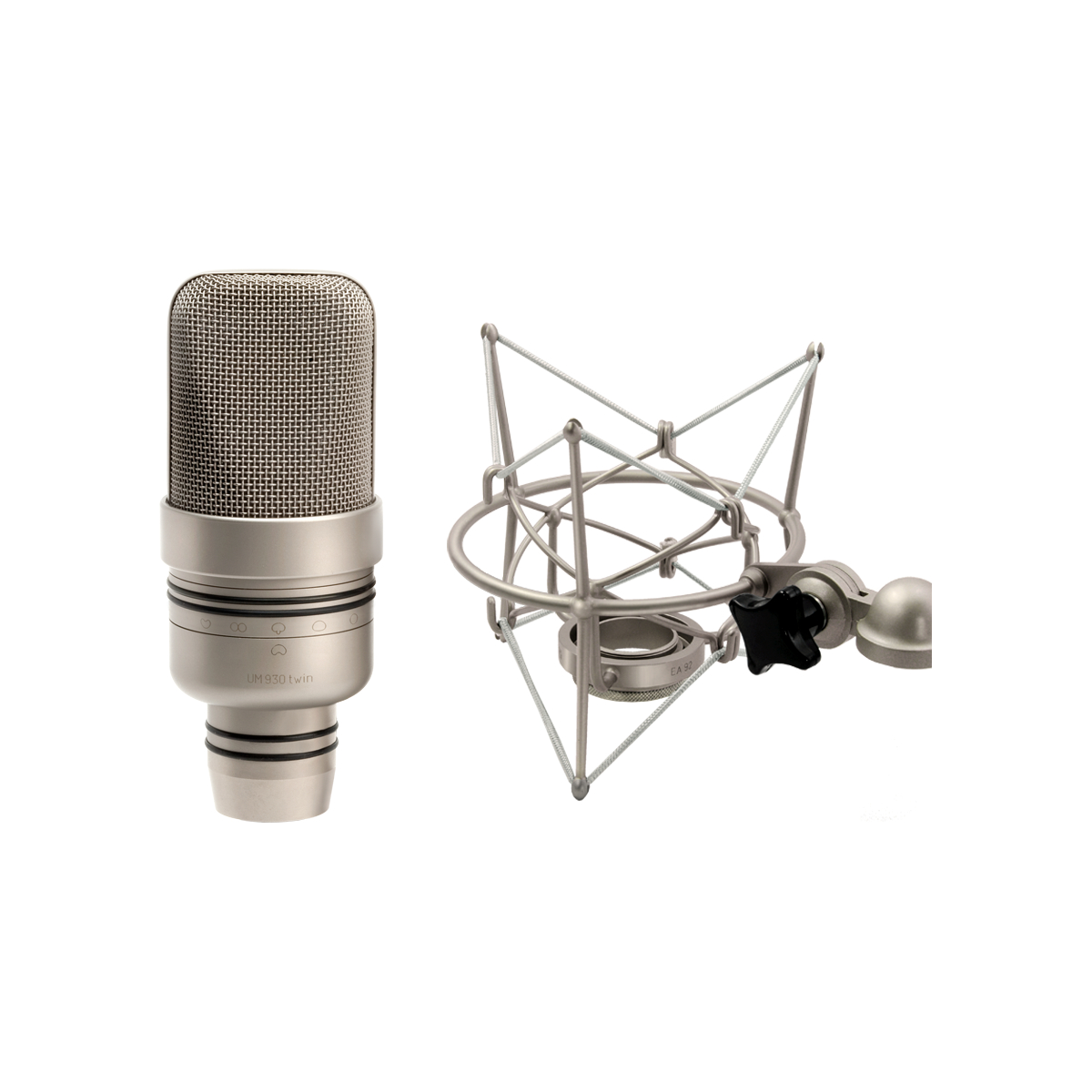

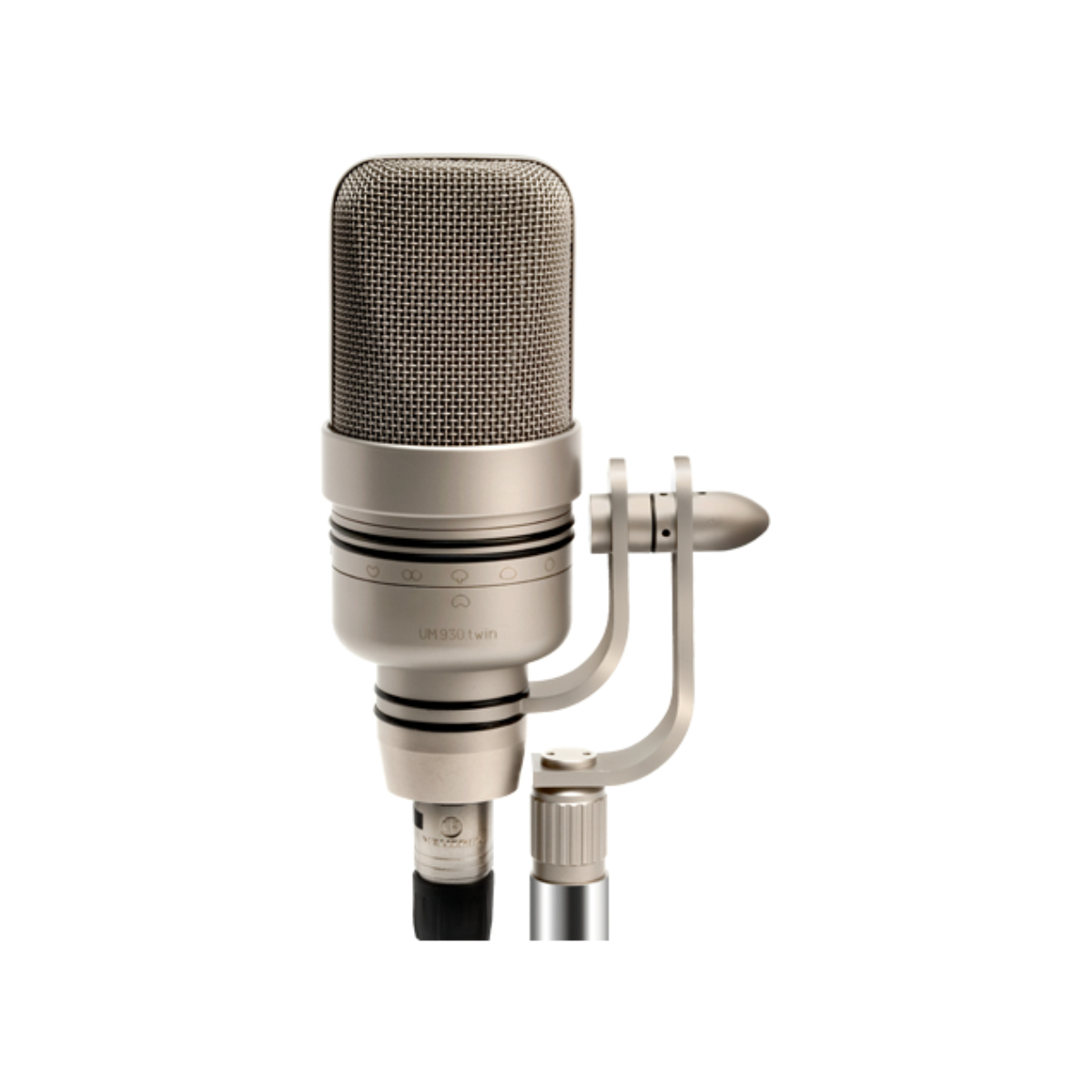

Microtech Gefell UM 930 Twin Condenser Microphone with EA 92 Mount

Microtech Gefell UM 930 Twin Condenser Microphone with EA 92 Mount

Double condenser microphone, switchable pattern with fixed cardioid allowing for simultaneous use of two polar patterns – bronze,nickel

The Gefell UM 930 Twin switchable studio condenser microphone combines modern large diaphragm capsule technology with the latest in semiconductor circuit topology.The optimized dual-capsule assembly opens up new applications in the recording technique.

When the microphone is ready for operation a green light-emitting diode (LED) inside of protection grid will indicate. Acoustic influences that could result from the housing resonance and/or mechanical vibration are reduced by the robust construction and by a special fixture within the microphone’s housing that dampens vibrations.

You can replace the black o-rings at the peripheral line of the switching ring with one or more colored rings. Available are the colors green, red and blue.The UM 930 Twin is a special version is equipped with one fixed cardioid directivity pattern, and five additional user-selectable directions.

The 5-pin XLR connector enables the separate capsule directivity patterns to be used simultaneously.This makes it possible for the recording engineer to compare the directional properties against the reference cardioid during live recording a well as in post production.

The UM 930 is specifically designed to meet the needs of professional and semi-professional users who demand the highest performance. This microphone is ideally suited for universal miking applications in broadcast and sound studios.Applications include vocalists, announcers, dialog pickup and as spot microphones for recording guitars, keyboards, percussion, wind and string instruments.The pick-up pattern is perpendicular to the direction of the microphone axis (side addressed). The model number and pick-up pattern symbol mark the front of the microphone.

Available for the UM 930 SCT condenser microphone is an 1 kHz level checking test signal for checking a complete sound system following the microphone. The Soundcheck Tool is enabled when the polar pattern switching ring is placed midway between any of the polar pattern symbols for longer than 4 – 5 seconds, and the green LED illuminates. The level testing signal takes the individual sensitivity of the microphone, pattern cardioid, and it is equivalent to a sound level of 74 dB. This is 20 dB lower than the reference level at 1 Pascal, and assists in basic microphone setup during soundcheck. The Soundcheck Tool reduces the need for frequent voice tests during setup in most cases.

The microphone features 5 pickup patterns: omni, wide cardioid, cardioid, hyper cardioid , figure 8. A muting function works when switching over the polar pattern.

When the microphone is ready for operation a green light-emitting diode (LED) inside of protection grid will indicate. Acoustic influences that could result from the housing resonance and/or mechanical vibration are reduced by the robust construction and by a special fixture within the microphone’s housing that dampens vibrations.

You can replace the black o-rings at the peripheral line of the switching ring with one or more colored rings. Available are the colors green, red and blue.

Under type designation UM 930 twin a special version is equipped with one fixed cardioid directivity pattern, and five additional user-selectable polar patterns. The 5-pin XLR connector enables the separate capsule directivity patterns to be used simultaneously.This makes it possible for the recording engineer to compare the directional properties against thereference cardioid during live recording a well as in post production.

Features:

• Large diaphragm dual-capsule
• Switchable: omni, wide cardioid, cardioid, hypercardioid, fig-8
• Exceptional dynamic range
• Equivalent noise level 7 dBA
• Transformerless output
• Elastic capsule suspension
• Soundcheck Tool SCT
• Muting function
• Optical ready indicator

To learn more about Microtech Gefell, Click Here
View more products from Microtech Gefell

• Condition - New

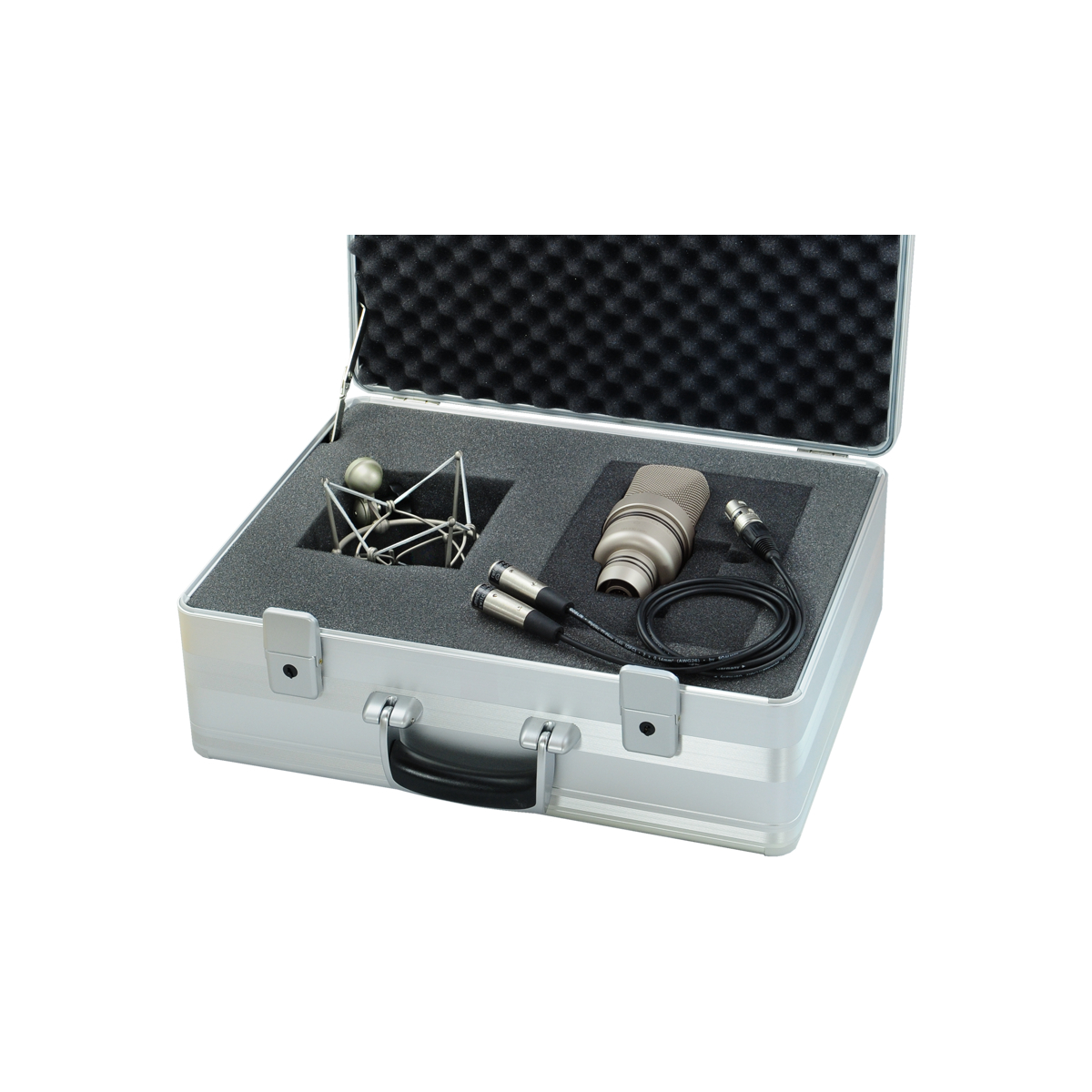

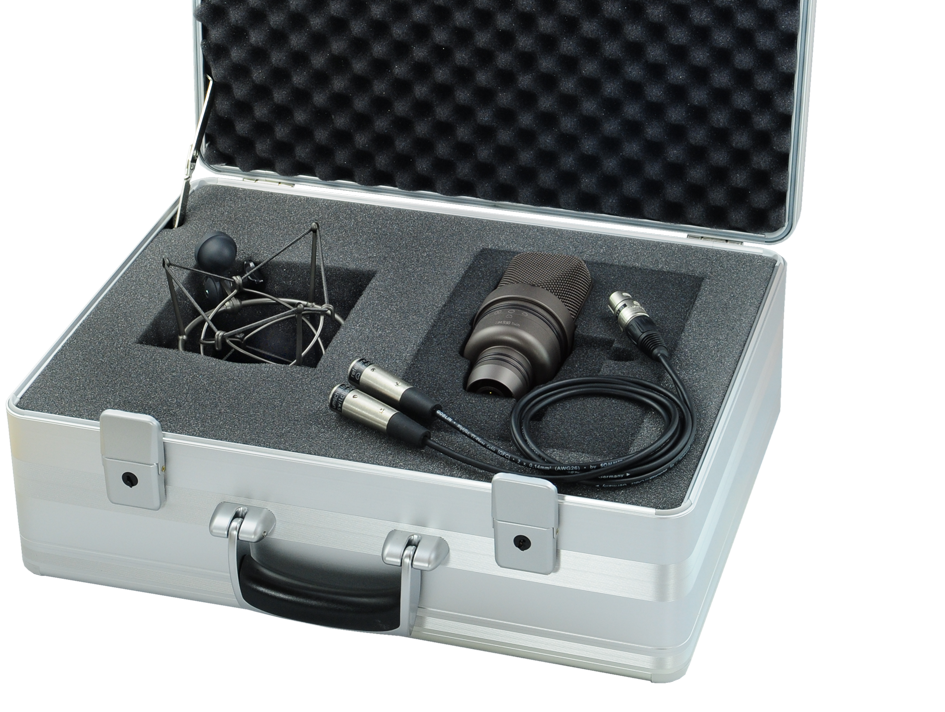

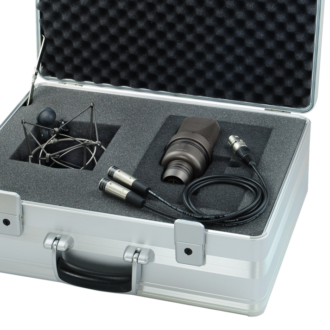

• Package Contents - Includes wooden case, C 93.01 connection cable, and EA 92 elastic suspension
• Length - 158 mm
• Diameter - 65 mm
• Unit Weight - 930 g
• Tube or Solid State - Solid State
• Transducer Type - Condenser
• Polar Pattern - Bi-Directional / Figure-Eight, Cardioid, Hyper-Cardioid, Omni-Directional, Wide Cardioid
• Number of Microphones - Single Microphone
• Impedance - Output impedance: 100 ohms
• Frequency Range - 40 Hz - 18 kHz
• Sensitivity -34 dBV/Pa (20 mV)
• Max. SPL - 142 dB (0.5% THD)
