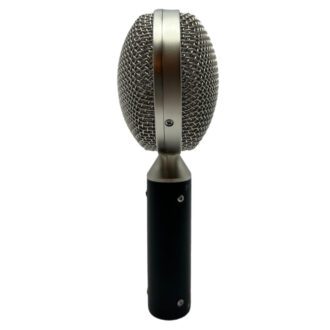

Pinnacle Fat Head Short Ribbon Microphone

Unlike most ribbon motors designed today with an offset ribbon the new Pinnacle Fat Head Short Ribbon Microphone houses a hand-tuned ribbon element that incorporates the legendary symmetrical ribbon design.

This design offers a true figure 8 pattern. The corrugated aluminum membrane itself is positioned in the center from front to back, thus producing a balanced audio input signal to both sides of the ribbon assembly.

This design is very useful when executing a mid-side or Blumlein recording set-up and also great for live stage use. The Pinnacle Fat Head Short Ribbon Microphone warm full-bodied signature and increased sensitivity is what you would expect and demand from a professional ribbon microphone and the FAT HEAD delivers. The FAT HEAD is suited for guitar cabinets, drum over-heads, vocal, piano, horns, strings, and much more.

FAT HEAD Single Includes:

• FAT HEAD Ribbon Microphone
• Mic Clip
• Leatherette Pouch
• Molded Flight Case

Suggested Uses:

• Electric Guitars
• Drum Overheads
• Horns
• Strings
• Banjo, Mandolin, Dobro

• Type: Ribbon (velocity) Microphone
• Ribbon type & Dimensions: 99% Pure aluminum, 2.5 micron, 1 3/4" (L) X 3/16" (W)
• Polar pattern: Figure 8 Symmetrical design
• Sensitivity: -56 db +/- 2 dB (0 dB=1V/Pa)
• Frequency response: See PDF below
• Output Impedance: <=200 Ohms
• Recommended load impedance: >1000 Ohms
• Max.SPL (1% THD @1000 Hz): 135 dB
• Connector: 3-Pin male XLR
• Size: Diameter: 3" (O.D. grill), overall length 6 1/2", 1" (O.D. body)
