RCF COMPACT M 10 Passive 10″ 2-Way Professional Powered Speaker

RCF COMPACT M 10 Passive 10″ 2-Way Professional Powered Speaker

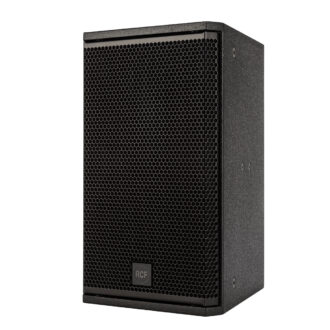

COMPACT M 10 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 10 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided compression driver. The SPL level of low-distortion audio the M 10 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 10 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 10 on wall or ceiling installations.

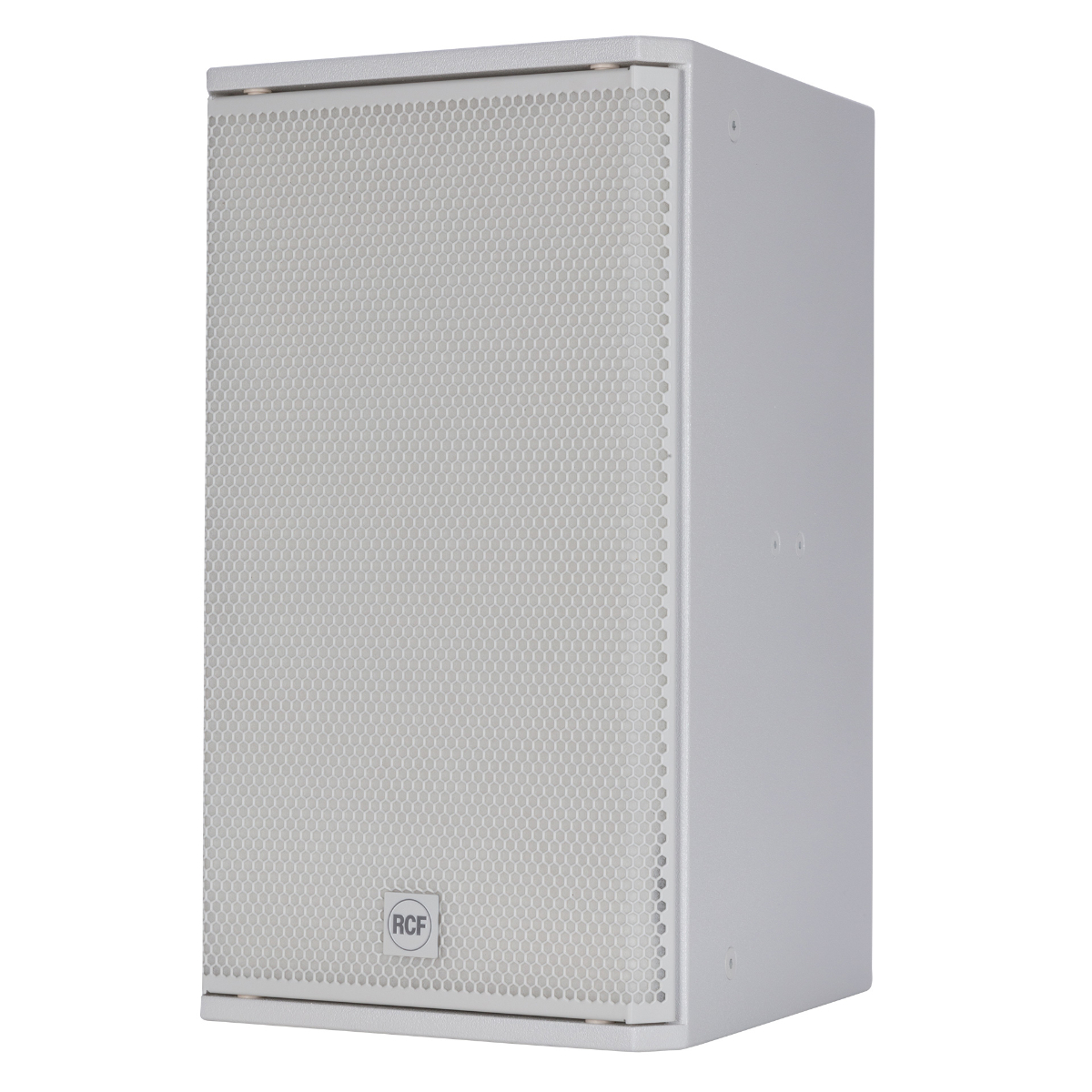

Black & white

When in need of a particular appearance, matching the colour of interiors, or searching for a stylish, minimalistic sound system for your next DJ set, we can provide you with a full set of white speakers – a tough coating for wooden speakers or a robust white polypropylene composite material for portable systems, pole included, in perfect fashion. Purity and elegance, all available to be included in corporate gigs, weddings, and houses of worship.

Multipurpose sound

Elegant design aesthetic, multiple formats and RCF signature sound quality that allows to deliver a supreme audio experience in any application, from restaurant and retail shops to clubs, corporate spaces and venues.

Engage your customers

Compact dimensions and impressive size/weight to SPL output ratio. These are the features that will allow your audience enjoying an immersive musical experience.

Improve the audio atmosphere

Music supports engagement and improves the feeling of hospitality in the environment, especially if the perceived sound quality is higher. This is the aim of RCF Compact M Series – optimal performance in both background music and high powered foreground audio.

Smooth installation

Compact M speakers sticks to the functionality and style of the Italian design, always in harmony with any type of interiors. With a complete range of solid wood cabinets, multiple rigging points and accessories, installation time is minimal. The EUROBLOCK connection panel can be replaced with female Neutrik SpeakON connection panel in seconds.

Features

• 300 W RMS power handling
• 128 dB max SPL
• 60 ÷ 20000 Hz frequency range
• 90° x 70° constant directivity coverage angle
• 1 x 10″ high power woofer
• 1 x 1.4″ voice coil compression driver
• High quality plywood cabinet
• Steel front grille with clothing

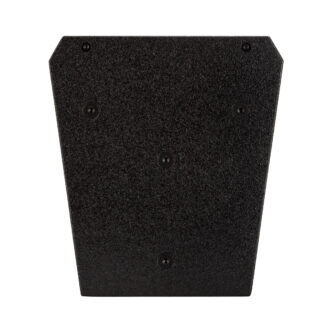

• Installation points available on rear, top and bottom panels

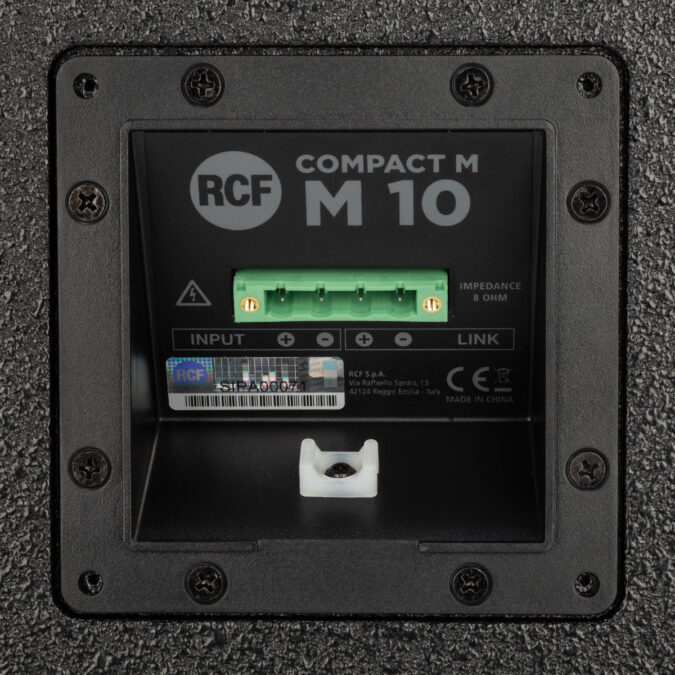

• 4 pole EUROBLOCK connector (audio input and parallel link output)

Acoustical Specifications:

• Frequency Response (-10dB): 60 Hz ÷ 20000 Hz
• Max SPL @ 1m: 128 dB
• Horizontal Coverage Angle: 90°
• Vertical Coverage Angle: 70°
• Directivity Index Q: 9
• System Sensitivity: 98 dB

Power Section:

• Amplification: Full Range
• Nominal Impedance: 8 ohm
• Power Handling: 300 W
• Peak Power Handling: 1200 W PEAK
• Protections: Dynamic active mosfet
• Crossover Frequencies: 1800 Hz
• Recommended Amplifiers: XPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504

Transducers:

• Compression Driver: 1 x 1.0'', 1.4'' v.c
• Woofer: 1 x 10'', 2.5'' v.c

Input/Output Section:

• Input Connectors: Euroblock
• Output Connectors: Euroblock

Standard Compliance:

• Safety Agency: CE compliant

Physical Specifications:

• Cabinet/Case Material: Plywood
• Hardware: 8 x M8, 8 x M10
• Grille: Steel with clothing
• Color: Black - RAL 9005, White - RAL 9003

Size:

• Height: 510 mm / 20.08 inches
• Width: 295 mm / 11.61 inches
• Depth: 325 mm / 12.8 inches
• Weight: 17 kg / 37.48 lbs
