RCF HDL50-A Active Three-way Line Array Module

The RCF HDL50-A Active Three-way Line Array Module is a true active high power speaker system ready to use a touring system for large events, indoors and outdoors. Equipped with 2×12” woofers, 4x symmetrical 6.5” midranges and two 2” drivers, it offers excellent playback quality and high sound pressure levels with a built-in 2200W RMS powerful digital amplifier that delivers superior SPL, while reducing energy requirement. Using advanced neodymium magnets and a groundbreaking new housing constructed from lightweight plywood and polypropylene, it has a remarkably low weight for easy handling and flying.

V-shaped Symmetrical Design

The symmetrical design of the cabinet produces identical left and right coverage. The component positioning and special DSP crossover filtering of the HDL 50-A take care of the constant directivity without spots of break up or attenuation. The originally designed V-SHAPED front baffle provides:

• Coplanar midranges and woofers
• Controlled LF dispersion
• Central space to host the HF guide

4 Path Waveguide

The custom 4PATH designed waveguide allows a precise coverage of 90 x 10 degrees, while also delivering a superb, linear high frequency response. The unique shape of the four ducts forming the guide create an ideal isophasic load from 700 Hz to the highest audible frequencies.

Features:

• 4400 Watt, 3 way amplification
• 140 dB max SPL
• 8 x high power neodymium transducers
• 48 kHz, 32 bit DSP processing
• RDNet on board
• Remote monitoring and control
• Symmetrical design
• Extremely low weight

For more info on RCF visit https://www.rcf.it

Acoustical

• Frequency Response: 40 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 140 dB
• Horizontal Coverage Angle: 90°
• Vertical Coverage Angle: 10°

Transducers

• Compression Driver: 2 x 1.4'' neo, 3.0'' v.c
• Midrange: 4 x 6.0'' neo, 3.0'' v.c
• Woofer: 2 x 12'' neo, 3.0'' v.c

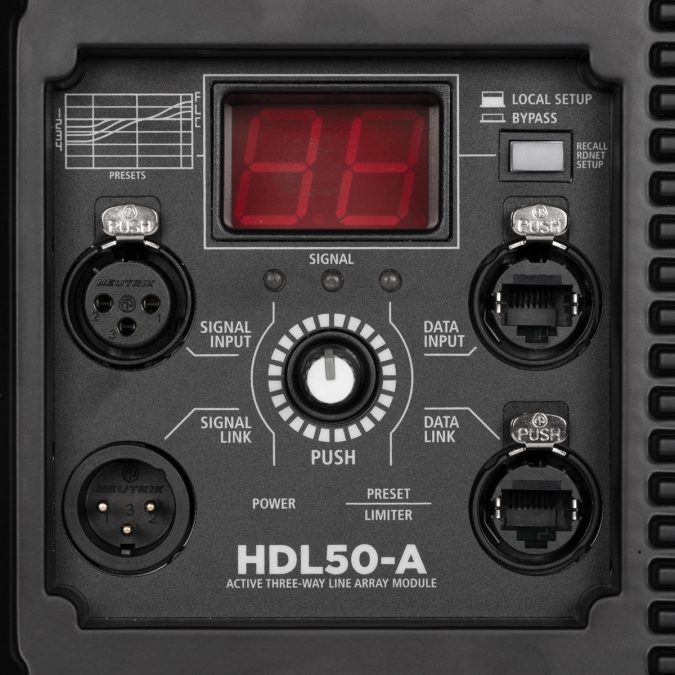

Input/Output section

• Input Signal: bal/unbal
• Input Connectors: XLR, RDNet Ethercon
• Output Connectors: XLR, RDNet Ethercon
• Input Sensitivity: +4 dB

Processor section

• Crossover Frequencies: 200 Hz - 800 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Cluster size, HF correction, RDNET

Power section

• Total Power: 4400 W Peak, 2200 W RMS
• High Frequencies: 1100 W Peak, 550 W RMS
• Mid Frequencies: 1100 W Peak, 550 W RMS
• Low Frequencies: 2200 W Peak, 1100 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

Standard compliance

• CE Marking: Yes

Physical

• Cabinet/Case Material: Baltic birch plywood
• Hardware: Integrated Mechanics
• Handles: 2 side, 2 rear

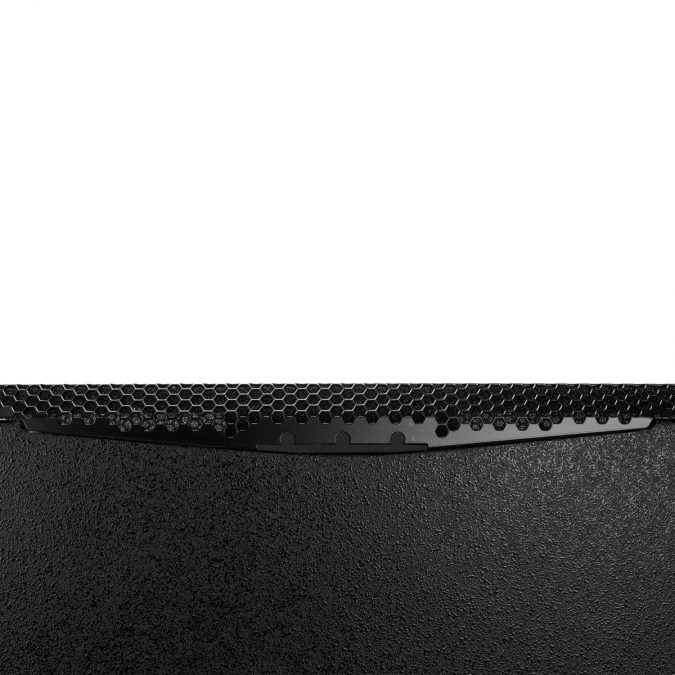

• Grille: Steel
• Color: Black

Size

• Height: 366 mm / 14.41 inches
• Width: 1171 mm / 46.1 inches
• Depth: 502 mm / 19.76 inches
• Weight: 56 kg / 123.46 lbs
