RCF HDL6-A Active Line Array Module

The RCF HDL6-A Active Line Array Module is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.

Black & White

The concept of this speaker derives from the touring industry, bringing in a compact cabinet all the experience of RCF professional sound. When a brighter look of the system is needed, HDL 6-A is available in white color.

Custom Designed Waveguide

The custom designed waveguide provides a precise coverage of 100° x 10° delivering a superb, linear high frequency response. Thanks to its large format compression driver on a waveguide, the HDL 6-A offers superior intelligibility over distance.

Symmetrical Design

Due to its symmetrical design the HDL 6-A produces constant coverage without break up or attenuation.

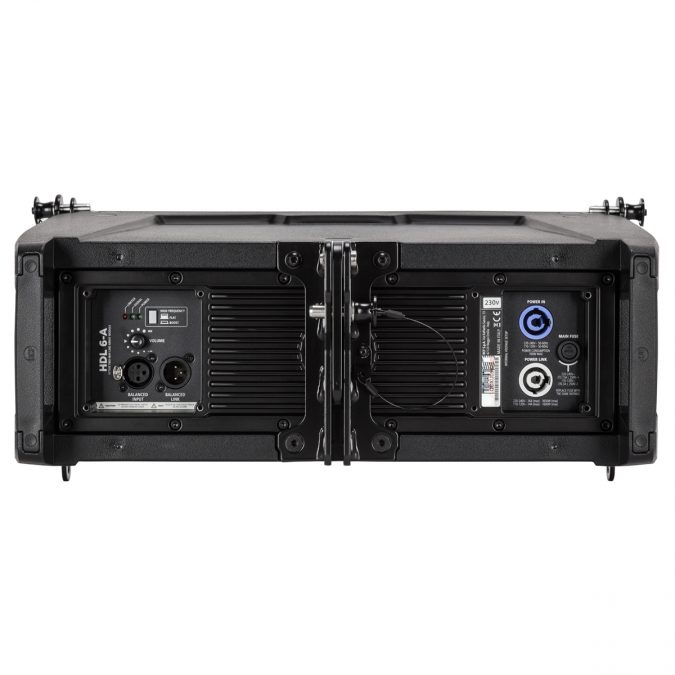

The HDL 6-A tour grade system comes in a structurally wooden reinforced composite polypropylene enclosure, and is equipped with two aluminium rear handles for portability.

The RCF HDL will maintain its intelligibility, definition and signal strength while competitive models will attenuate and break up before the sound reaches its throw distance.

Features:

• 1400 W, two-way amplification
• 131 dB max SPL
• 1.7″ voice coil neodymium compression driver
• 2 x high power neodymium 6.0″woofers
• 48 kHz, 32 bit floating point DSP processing
• Symmetrical design
• Extremely low weight
• FiRPHASE processing

For more info on RCF visit https://www.rcf.it

Acoustical

• Frequency Response: 65 Hz ÷ 20000 Hz
• MAX SPL @ 1M: 131 dB
• Horizontal Coverage Angle: 100°
• Vertical Coverage Angle: 10°

Transducers

• Compression Driver: 1.0" neo, 1.75" v.c
• Woofer: 2 x 6.0" neo, 2.0" v.c

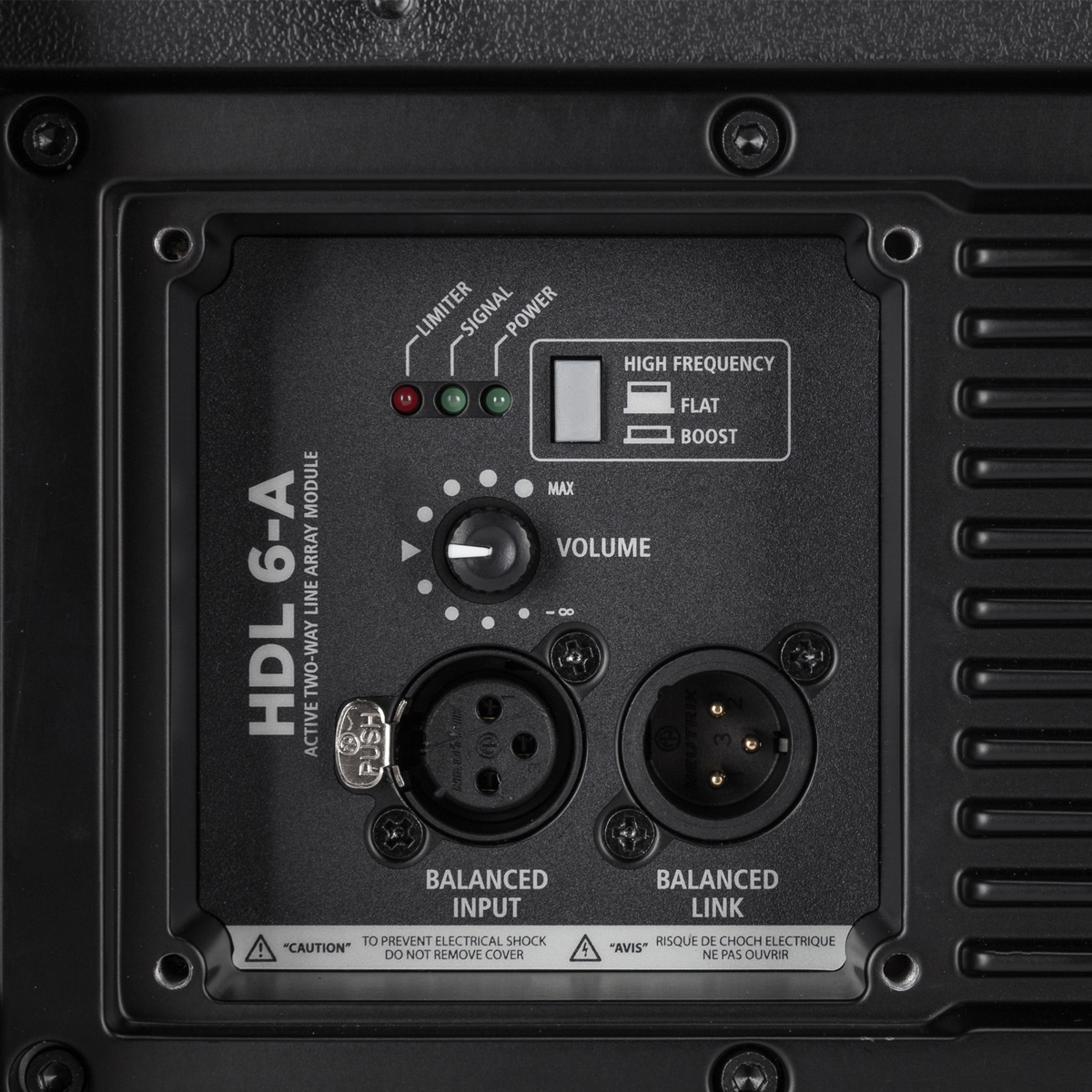

Input/Output section

• Input Signal: bal/unbal
• Input Connectors: XLR
• Output Connectors: XLR
• Input Sensitivity: +4 dBu

Processor section

• Crossover Frequencies: 900 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: HF correction

Power section

• Total Power: 1400 W Peak, 700 W RMS
• High Frequencies: 400 W Peak, 200 W RMS
• Low Frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

Standard compliance

• CE Marking: Yes

Physical

• Cabinet/Case Material: PP Composite
• Hardware: Array fittings
• Handles: 2 Back
• Grille: Steel
• Color: Black

Size

• Height: 237 mm / 9.33 inches
• Width: 470 mm / 18.5 inches
• Depth: 377 mm / 14.84 inches
• Weight: 11.6 kg / 25.57 lbs
