The TT45-CXA is a full range, high performance symmetrical monitor. The linear curve response, the consistent coverage and acoustic output make the TT45-CXA the professional choice for medium and large stages.

Product Enquiry

Questions? Ask us!

Add to Wishlist
Request a Shipping Quote
Description

RCF TT45-CXA Active Dual 10″ 2-Way High Output Stage Monitor

The TT45-CXA is a full range, high performance symmetrical monitor. The linear curve response, the consistent coverage and acoustic output make the TT45-CXA the professional choice for medium and large stages. The voicing is accurate and deep, the sound transparent in the mids and extremely accurate at very high frequencies. The size is compact and the profile low for a discrete appearance. The TT45-CXA is a full range, high power active system that sets a new standard in the touring and theatre sound reinforcement. By producing flat amplitude and phase response, fullrange bandwidth and exceptional impulse response, the TT45-CXA far exceeds the capabilities of conventional stage monitors.

Features

  • 2200 Watt, three-way class D amplifier
  • 50° x 90° constant directivity coverage
  • 2 x 10” neodymium woofers, 3.0” voice coil
  • Horn loaded 1.4” neo compression driver, 4.0” v.c.
  • Symmetrical design
  • Multifunctional cabinet
  • DSP processing
  • Onboard RDNet control
To learn more about RCF, Click Here
Additional information
Brand

RCF
Condition

New
Technical Specifications:

Acoustical Specifications:

  • Frequency Response: 45 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 136 dB
  • Horizontal Coverage Angle: 50°
  • Vertical Coverage Angle: 90°

Transducers:

  • Compression Driver: 1 x 1.5'' neo, 4.0'' v.c
  • Woofer: 2 x 10'' neo, 3.0'' v.c

Input/Output Section:

  • Input Signal: bal/unbal
  • Input Connectors: XLR, RDNet Ethercon
  • Output Connectors: XLR, RDNet Ethercon
  • Input Sensitivity: +4 dBu

Processor Section:

  • Crossover Frequencies: 600 Hz
  • Protections: Thermal, RMS
  • Limiter: Fast Limiter
  • Controls: Gain, EQ, Preset, Phase switch, Output Delay Settings
  • RDNet: Yes

Power Section:

  • Total Power: 4400 W Peak, 2200 W RMS
  • High Frequencies: 2200 W Peak, 1100 W RMS
  • Low Frequencies: 2200 W Peak, 1100 W RMS
  • Cooling: Convection/Forced

Standard Compliance:

  • Safety Agency: CE compliant

Physical Specifications:

  • Cabinet/Case Material: Baltic birch plywood
  • Hardware: 4xQuicklock
  • Handles: 2 side, 1 back

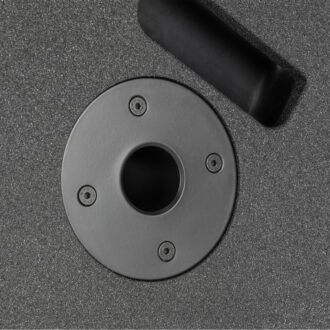

  • Pole Mount/Cap: Yes
  • Grille: Steel
  • Color: Black

Size:

  • Height: 420 mm / 16.54 inches
  • Width: 575 mm / 22.64 inches
  • Depth: 628 mm / 24.72 inches
  • Weight: 30 kg / 66.14 lbs
