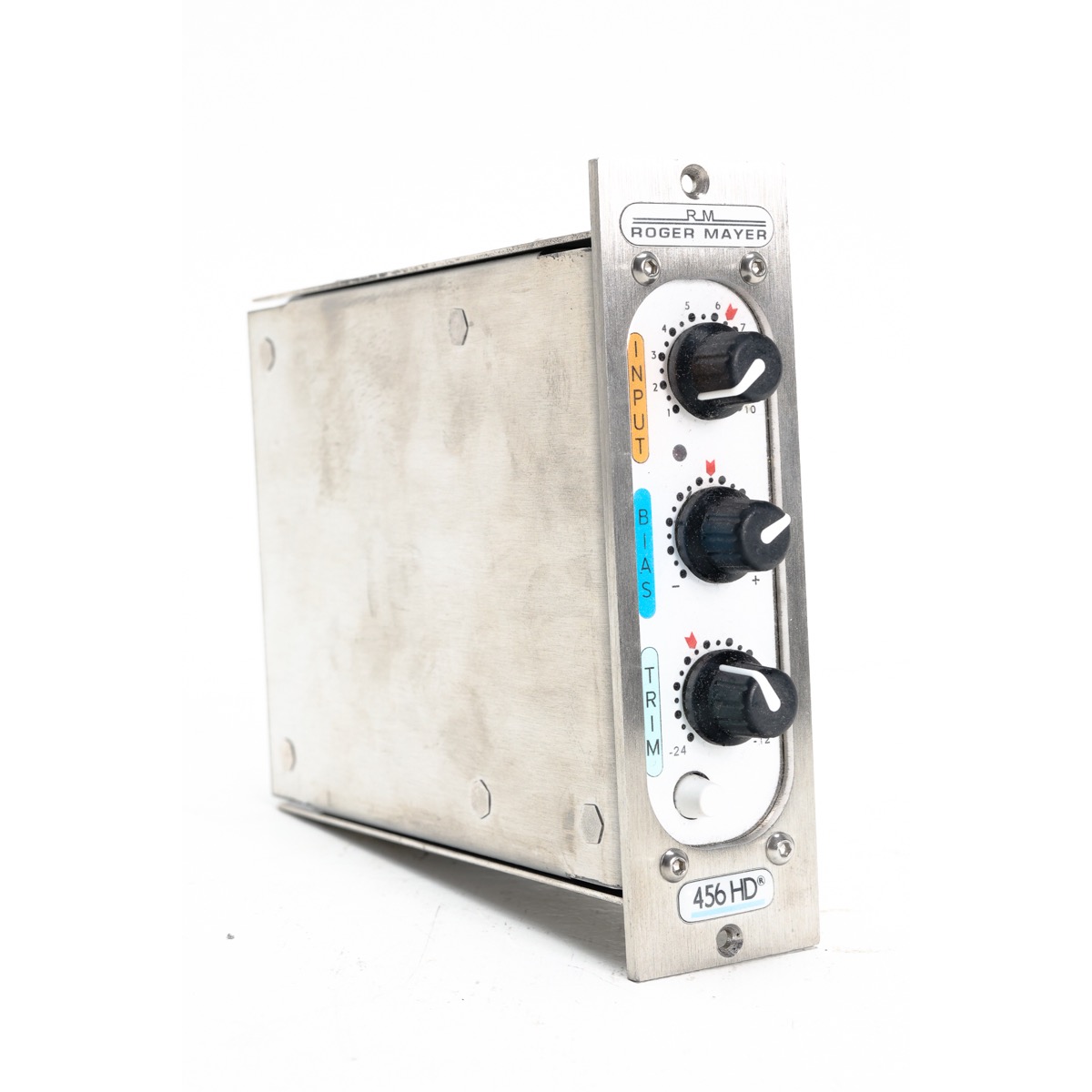

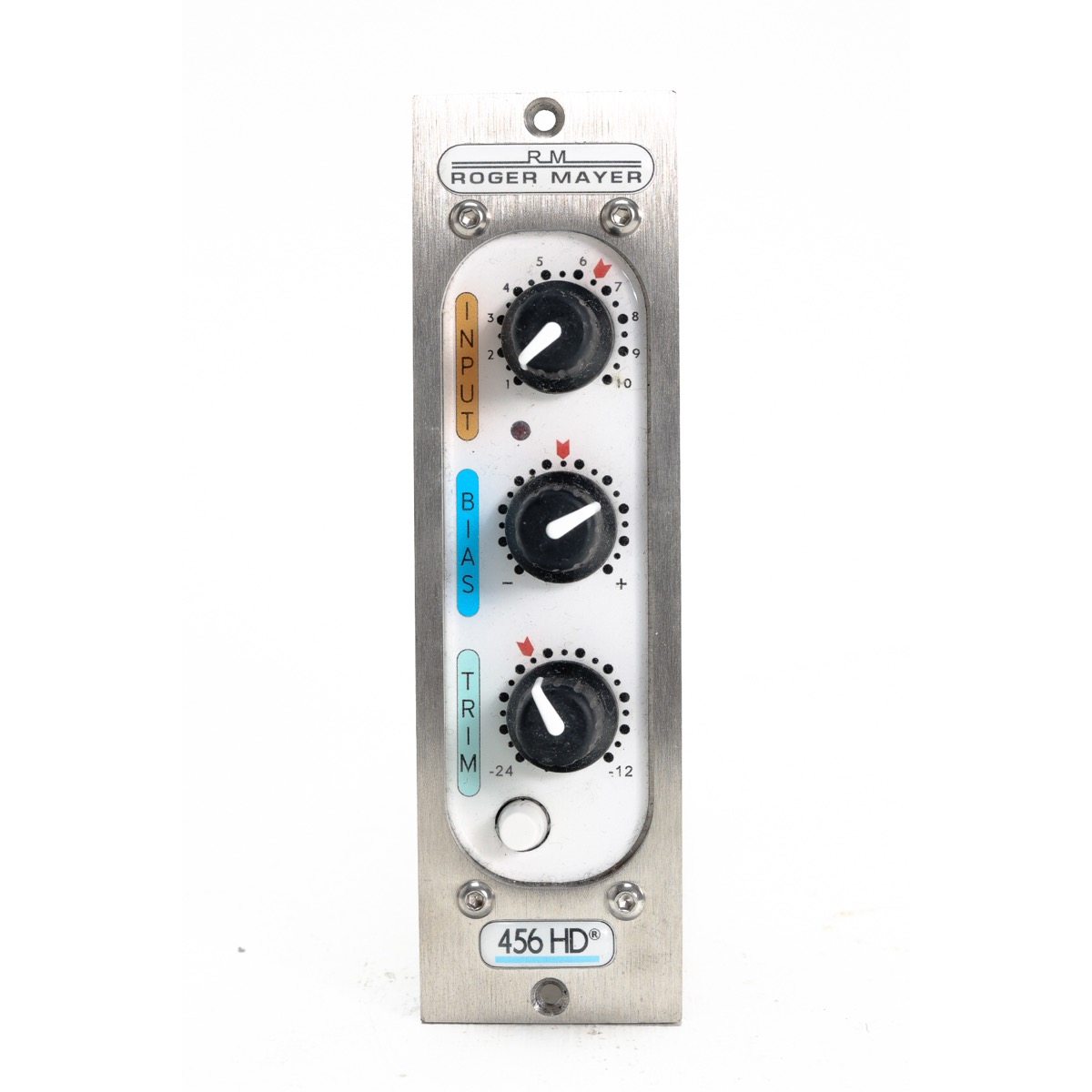

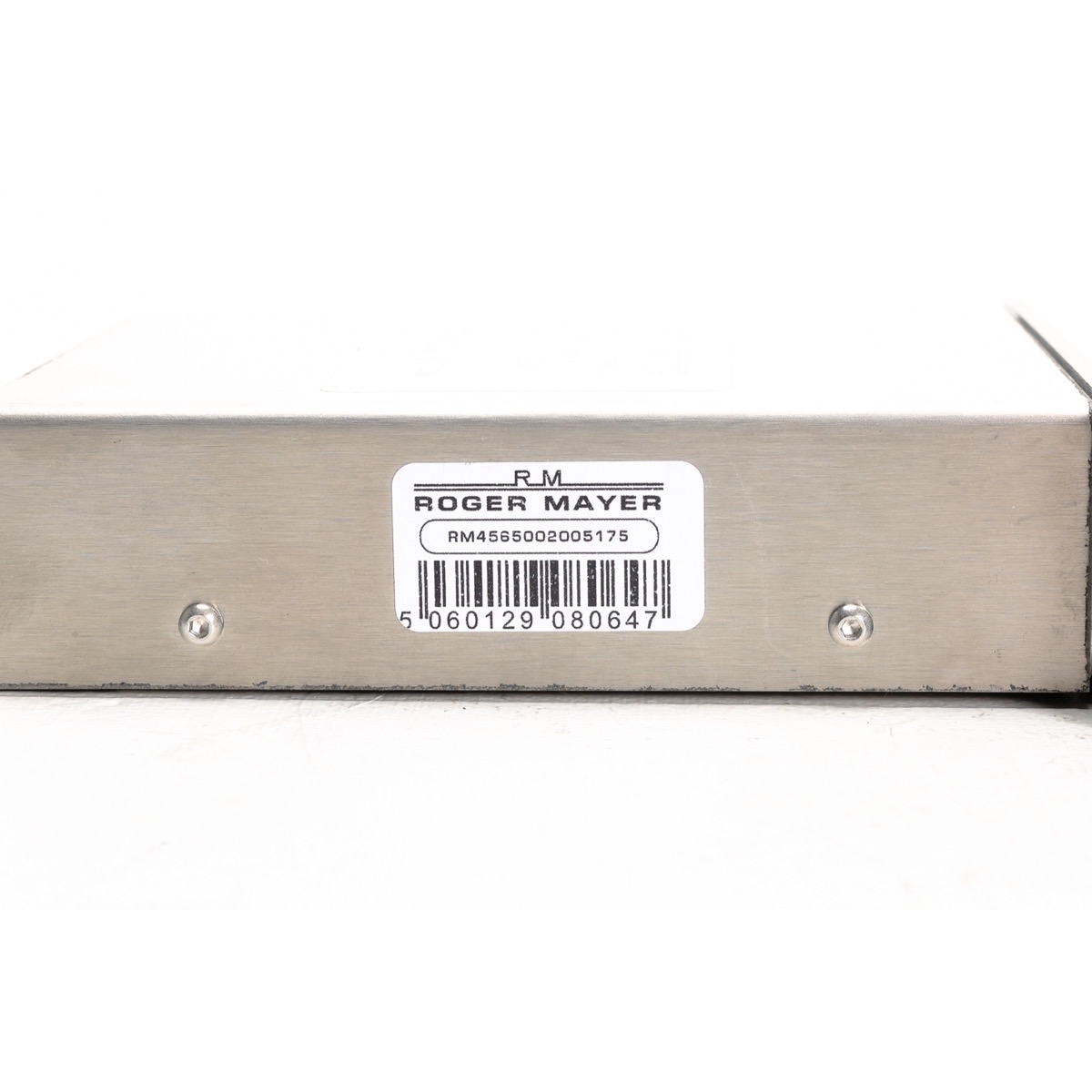

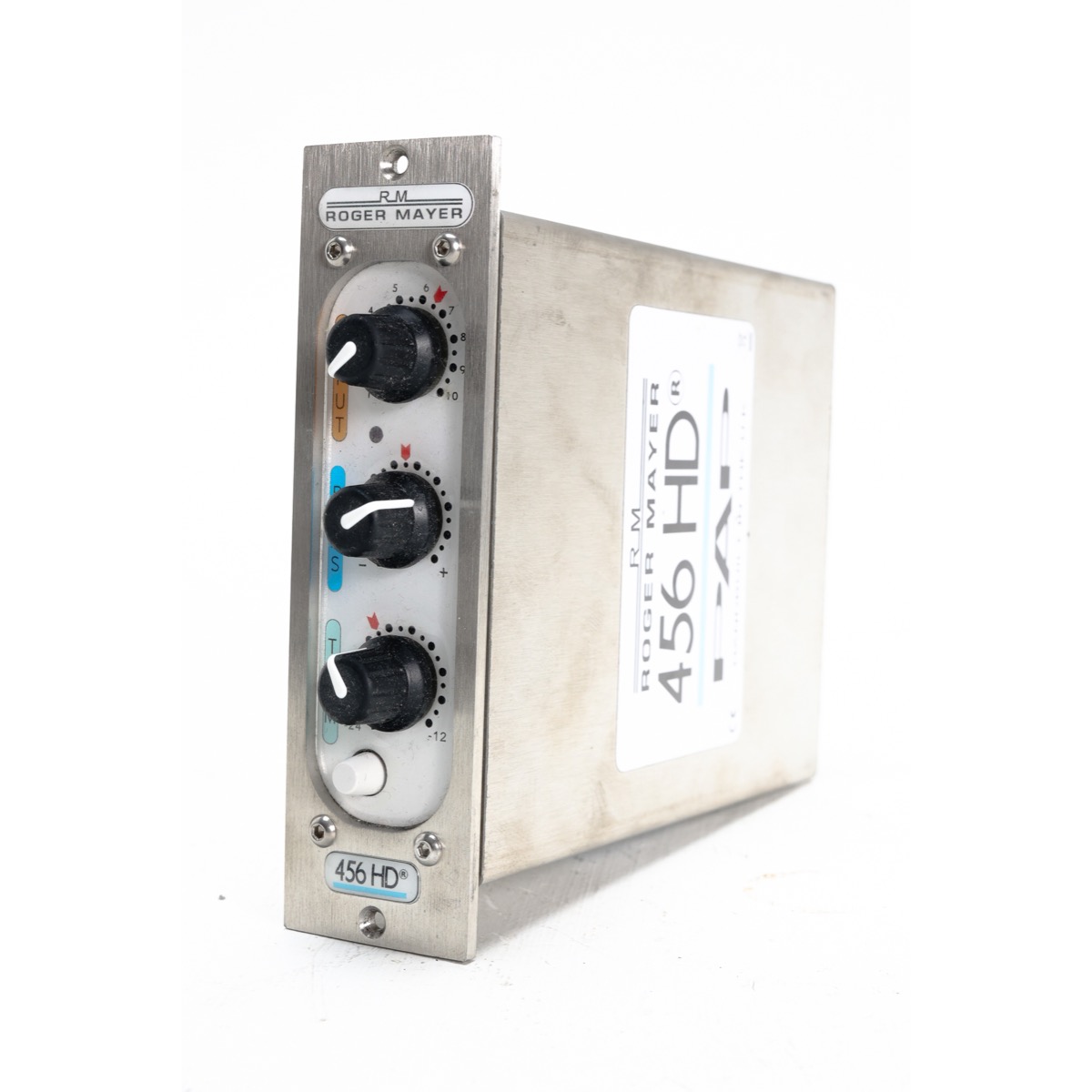

Roger Mayer 456 HDX 500 Analog Tape Simulator (Used)

Roger Mayer 456 HDX 500 Analog Tape Simulator (Used)

The Roger Mayer 456HDX 500-Series Tape Emulator delivers the unmistakable warmth, punch, and musicality of analog tape while adding the sonic benefits of premium transformer-balanced input and output stages.

Built around Roger Mayer’s proprietary 456HD analog dynamics process, the 456HDX recreates the harmonic richness, dynamic compression, and transient response of a Studer A80 tape machine loaded with Ampex 456 tape—all in real time with zero latency. Its transformer-balanced design further enhances the signal path by providing additional analog character, improved common-mode noise rejection, and the unmistakable depth that only high-quality transformers can deliver. Unlike digital plug-ins that merely approximate tape behavior, the 456HDX performs its processing entirely in the analog domain using ultra-high-speed discrete Class-A circuitry. The result is a more cohesive mix, smoother high frequencies, tighter low end, and enhanced harmonic detail that makes tracks feel fuller and more dimensional. Whether used while tracking to capture analog character from the source or inserted during mixing and mastering, the 456HDX delivers the sonic glue engineers expect from premium tape machines while integrating seamlessly into any professional 500 Series system. For engineers seeking the most refined version of Roger Mayer’s tape emulation technology, the 456HDX combines authentic analog tape behavior with transformer-balanced connectivity for maximum signal integrity and enhanced musicality. It is an outstanding solution for studios looking to bridge the gap between modern digital workflows and the timeless sound of classic analog recording.

Roger Mayer 456HDX 500-Series Tape Emulator Features

• Proprietary 456HD analog tape emulation process
• Recreates the sonic characteristics of a Studer A80 tape machine with Ampex 456 tape
• Transformer-balanced input and output circuitry for enhanced analog character
• Discrete Class-A ultra-high-speed analog signal path
• Real-time analog processing with zero latency
• Adds harmonic richness, warmth, and musical tape compression
• Improves transient response while maintaining clarity and detail
• Ideal for tracking, mixing, mastering, and post-production
• Single-slot 500 Series module
• Handmade in the United Kingdom

Roger Mayer 456HDX 500-Series Tape Emulator Specifications

• Input Level: Nominal -20dB to +4db Transformer Balanced
• Input Impedance: 10K or greater
• Output Level: +4dBu or 3.5V peak Transformer Balanced
• Output Impedance: 50ohms
• Input Impedance: 10K or greater
• Dynamic Range: 108dB
• Headroom: Maximum input level +32dBm – Internal Headroom 20dB
• Power Requirements: +16.2V DC at 125mA regulated
• Dimensions: 38.1mm width x 185mm depth x 44mm height
• Weight: 700g
