Sennheiser e 604 Dynamic Instrument Microphone

The frequency response and cardioid pick-up pattern of Sennheiser e 604 are optimized for drum sets and other percussion instrument miking, while also producing exceptional results on all forms of brass and woodwind. An integral stand mount screws directly onto mic stands and included clip attaches a mic to rim of the drum. Very high sound pressure level handling, in excess of 160 dB, is combined with a balanced, clear, low distortion signal similar to a high-end studio condenser microphone. Lightweight voice coil provides extended high frequency and rapid transient response. A tough reinforced glass fiber body takes the knocks and shocks and suppresses impact noise.

Features:

– Rugged reinforced glass-fiber body
– Low sensitivity to impact and handling noise
– Very high sound pressure handling capability
– Low distortion microphone
– Hum compensating coil
– Easy to position due to the compact design
– Integral stand mount

To learn more about Sennheiser, Click Here

View more products from Sennheiser

Dimensions	10.24 × 4.72 × 3.15 in
Brand	Sennheiser
Condition	New

- Dimensions: Ø 33 x 59 mm
- Connector: XLR-3
- Frequency response (Microphone): 40 - 18000 Hz
- Weight: Without cable: 60 g
- Sensitivity in free field, no load (1kHz): 1,8 mV/Pa
- Nominal impedance: 350 Ω
- Min. terminating impedance: 1000 Ω
- Weight w/o cable: 60 g

What's in the box:

- 1 e 604
- 1 Drum Clip
- 1 Pouch

Download Architect´s Specification for Sennheiser e 604 Dynamic Instrument Microphone

Download US Miscellaneous Sheet for Sennheiser e 604 Dynamic Instrument Microphone

Download GB Miscellaneous Sheet for Sennheiser e 604 Dynamic Instrument Microphone

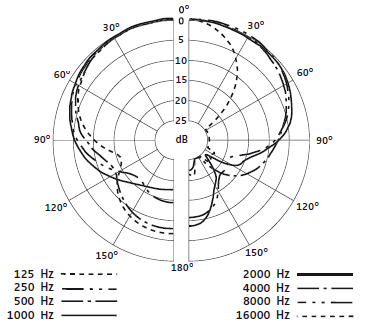

Download Polar Diagram for Sennheiser e 604 Dynamic Instrument Microphone

Download Frequency Diagram for Sennheiser e 604 Dynamic Instrument Microphone

Download Instruction Manual for Sennheiser e 604 Dynamic Instrument Microphone
