Sennheiser ew 500-945 G3 Vocal Microphone System Set

Great technology throughout the microphone system make this system the ideal singing partner. The feedback-resistant, super-cardioid microphone capsule reproduces vocals prominently and with a smooth response. The powerful hand-held transmitter shows all important information on its large graphic display. Its optional rechargeable batteries can be recharged just by placing the handheld in the optional charging station.

Features:

– Sturdy metal housing (transmitter and receiver
– 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
– Enhanced frequency bank system with up to 32 compatible frequencies
– Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer – this delivers a good overview of monitoring and professional data management for multi-channel systems
– High-quality true diversity reception
– Pilot tone squelch for eliminating RF interference when transmitter is turned off
– Automatic frequency scan feature searches for available frequencies
– Enhanced AF frequency range
– Increased range for audio sensitivity
– Wireless synchronization of transmitter parameter from receiver
– User-friendly menu operation with more control options
– Illuminated graphic display, receiver also shows transmitter settings
– Auto-Lock function avoids accidental changing of settings
– HDX compander for crystal-clear sound
– Transmitter feature battery indicatation in 4 steps, also shown on receiver display
– Easy-exchangeable microphone modules from evolution series
– Integrated Equalizer and Soundcheck mode
– Contacts for recharging BA 2015 accupack directly in the transmitter
– Wide range of accessories adapts the system to any requirement

Variation	ew 500-945 G3-A-US, ew 500-945 G3-B-US, ew 500-945 G3-G-US

Frequency Range

- 780...822 MHz / Power supply unit EU / Germany
- 823...865 MHz / Power supply unit EU / Germany
- 606...648 MHz
- 780...822 MHz / Power supply unit UK
- 823...865 MHz / Power supply unit UK
- 516...558 MHz / Power supply unit US
- 626...668 MHz / Power supply unit US
- 734...776 MHz / Power supply unit US
- 566...608 MHz / Power supply unit US
- 925...937.5 MHz / Korea
- 516...558 MHz / Power supply unit EU
- 626...668 MHz / Power supply unit EU
- 734...776 MHz / Power supply unit EU
- 780...822 MHz / Power supply unit EU
- 823...865 MHz / Power supply unit EU
- 566...608 MHz / Power supply unit EU

- Dimensions: Receiver: 212 x 202 x 43 mm
- Dimensions: Transmitter: Ø 50 mm, L 265 mm
- Frequency response (Microphone): 80 - 18000 Hz
- Compander: HDX
- Audio-XLR connector: 6,3 mm
- Presets: 32
- Microphone: dynamic
- Sound pressure level (SPL): 154 dB(SPL) max.
- THD, total harmonic distortion: < 0,9 %
- Weight: Receiver: 980 g
- Weight: Transmitter: 450 g
- AF sensitivity: 1,6 mV/Pa
- Signal-to-noise ratio: > 115 dB(A)
- RF frequency range: 516...865 MHz
- RF output power: 10/30 mW
- Transmission/receiving frequencies: 1680
- Switching bandwidth: 42 MHz
- Peak deviation: +/- 48 kHz
- In compliance with: ETS 300422 , ETS 300445 , CE , FCC
- Operating time: Transmitter: > 8 h
- Antenna connector: 2 BNC, 50 Ω
- Audio output level (balanced): XLR : +18 dBu max
- Audio output level (unbalanced): Jack: +10 dBu max

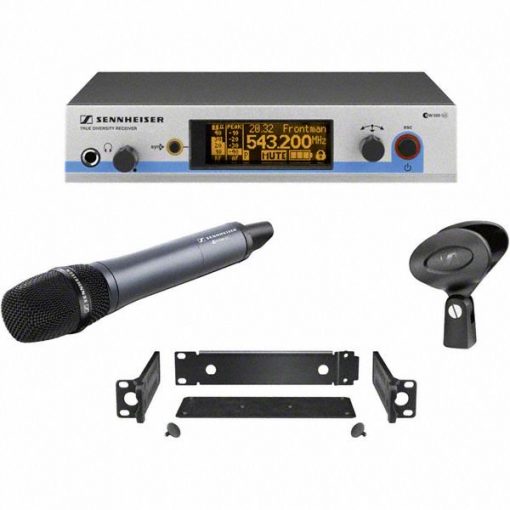

What's in the box:

- 1 EM 500 G3 Rack-mount Receiver
- 1 SKM 500-945 G3 Handheld Transmitter (Super-Cardioid, Dynamic)
- 1 MZQ 1 Microphone Clip
- 1 GA 3 Rack Mount
- 1 NT 2 Power Supply Unit
- 2 Antennas
- 2 AA Size Batteries
- Operating Instruction
