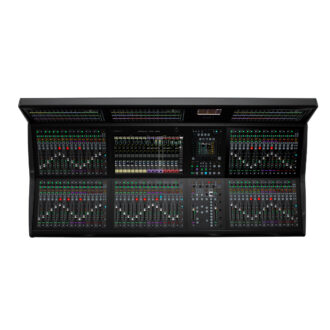

SSL System T – The Next Generation of Immersive Music Production

SSL System T – The Next Generation of Immersive Music Production

Produce Cutting-Edge Music and Immersive Content, Quickly and Efficiently

Solid State Logic are regarded as pioneers in surround sound production technology, continually innovating and designing mixing consoles which empower engineers to push the boundaries of what’s considered possible. System T continues this, combining SSL’s legacy with the next generation of production tools required to make immersive music production fast, efficient and sound stunning.

System T bridges the gap between commonly found DAW and controller setups, and what’s achievable when working on a real console. Its combination of cutting-edge digital audio handling and advanced production workflows, including Dolby Atmos, are complemented by legendary SSL production tools optimised for immersive music production, providing multi-format immersive and object signal paths.

Full SSL dynamics and EQ are available on every channel and bus, along with 3D panning, DAW control, Dynamic Automation, Dante integration and an inbuilt effect rack. Rounding off System T’s immersive production toolkit is a market-leading monitor section, providing up to 9.1.6 control room monitoring. System T is the next-gen production platform which allows your facility and engineers to excel at producing cutting-edge music and immersive content which stands above the competition.

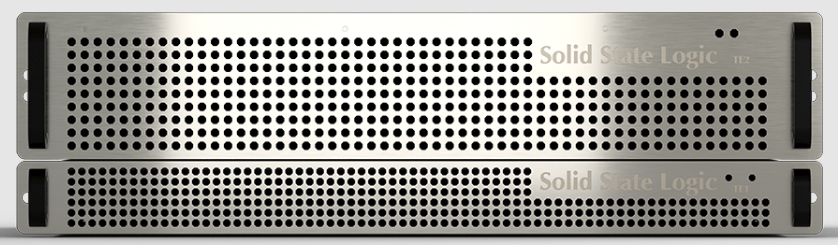

System T’s ‘Tempest Engine’ DSP is built around our renowned Tempest processing technology. Its agile architecture allows engineers to start with a blank canvas and build the exact console needed for the task at hand. Channels, buses, sends and inserts can be configured exactly as required and easily changed at any point. Patching and routing can easily be managed directly from the console software. Everything can then be saved as a fully recallable setup, or template for future sessions.

Next-Gen Production Tools:

• Multiformat immersive and object signal paths
• 3D XYZ and rotational Theta pan
• Full 9.1.6 monitor section
• Inbuilt Effect Rack
• Onboard Dynamic Automation
• Integrated DAW Control
• Full SSL Dynamics & EQ every channel and bus
• Up to 800 audio channels
• 64-bit floating point audio processing

Immersive By Design

Mixing in immersive has never been this simple on a real console. System T is designed for multiple immersive audio formats including Dolby Atmos Music, specifically with 7.1.2 beds. Individual channel and bus formats are configurable up to 9.1.6. A full monitor section provides up to 9.1.6 control room monitoring with 2×24-way external source selectors and a renderer insert point. Included as standard are multi-channel Effects Rack modules including 7.1.2 bus compressors. Fully featured and intuitive 3D panning, with both XYZ and rotational Theta pan modes provides a rich panning experience not found elsewhere. Integrated object control is provided for DAW hosted panner plugins. Compressor and gate link busses allow grouped processing across discrete object paths without compromise. A dedicated LFE only bus routing feature simplifies object signal flows.

DAW Control

Control up to 4 Avid Pro Tools DAWs direct from the console hardware and touch screen. DAW control faders can be freely assigned anywhere across the surface alongside console channels and busses. DAW faders, cuts, pan, sends and plugins can be controlled using console faders, encoders, and touch screens. On-screen or physical user key buttons provide transport control, location functions and DAW automation commands. An S500 switchable video input brings the DAW display into the console, keeping you sat in the sweet spot.

Dynamic Automation

A full onboard timecode driven dynamic automation system built specifically for revision-based music mixing can be enabled within the console software. Dedicated console-wide modes for each processing block, and per-channel protect functions allow as much or as little to be automated as needed. An unlimited number of mix passes can be stored, automatically packaged when a showfile is saved. DAW timecode can be followed using a simple MTC over network connection, or a dedicated LTC and MIDI hardware unit.

Digital Audio Handling

64-bit floating point processing provides unparalleled audio quality, ensuring unlimited audio headroom with the power to execute algorithms within a single sample. Internal 48kHz or 96kHz operation caters for all modern digital production requirements. Digital never sounded so analogue.

Digital Patch Bay

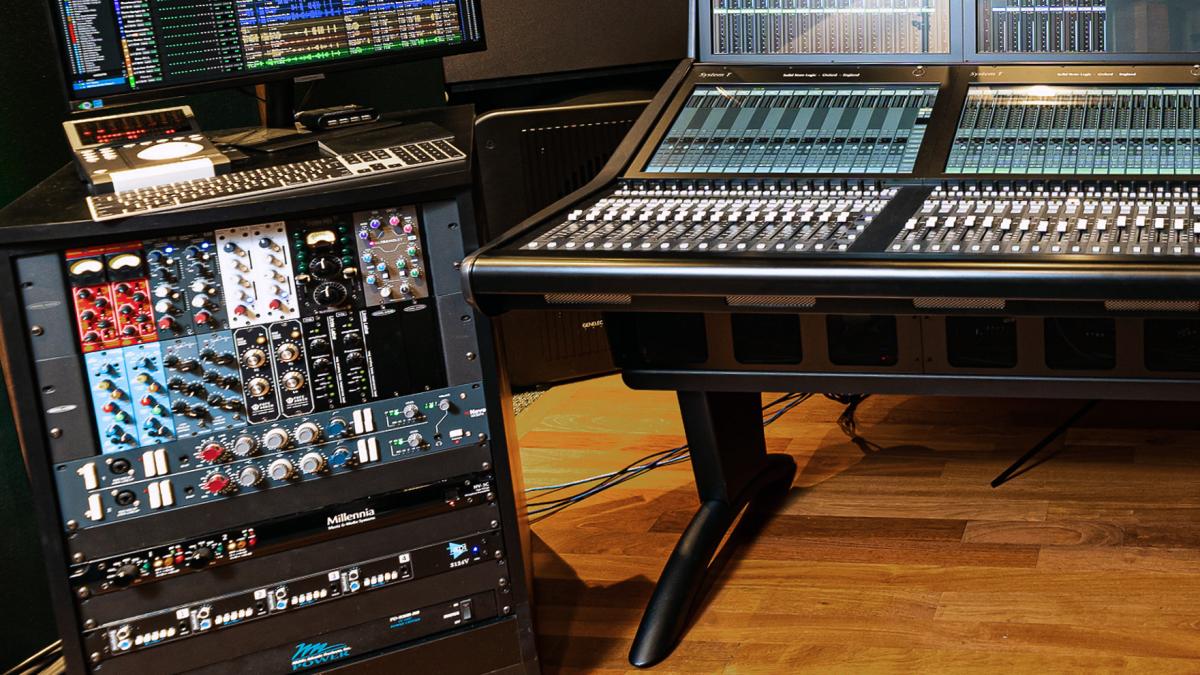

System T features native Dante support with high capacity (512ch) Dante HC cards and a full range of SSL Network I/O. With our renowned range of SuperAnalogueTM mic pres, line level I/O for your outboard gear and digital connectivity, SSL Network I/O has you covered. The console provides fully integrated Dante routing and patching control, recalling all signal connections alongside your session. The console is your digital patch bay.

SSL Production Tools

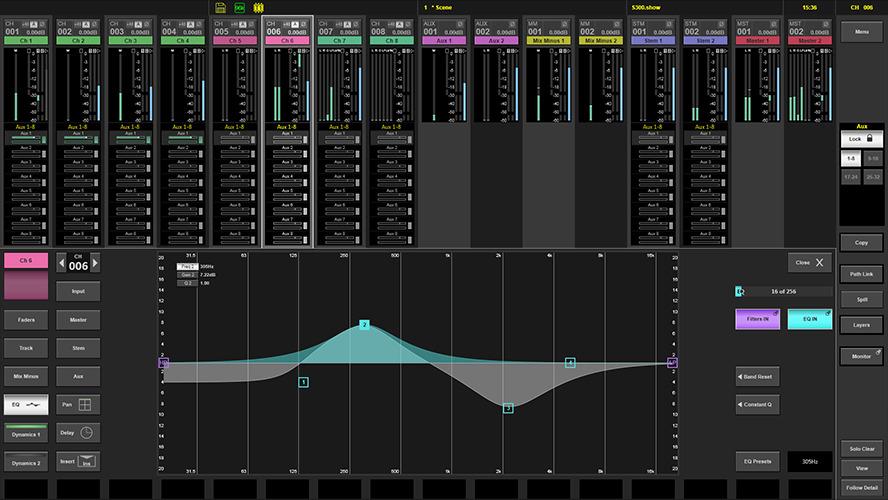

System T features extensive range of channel, bus, and Effect Rack processing tools. Many optimased for immersive music production. Every channel and bus features comprehensive SSL processing. Including two dynamics sections, including gates, expanders, limiters, and compressors. High and low pass filters, with selectable slopes. Four band EQ with variable modes per band; including precise constant Q mode, legacy SSL channel strip mode, shelving and notch modes.

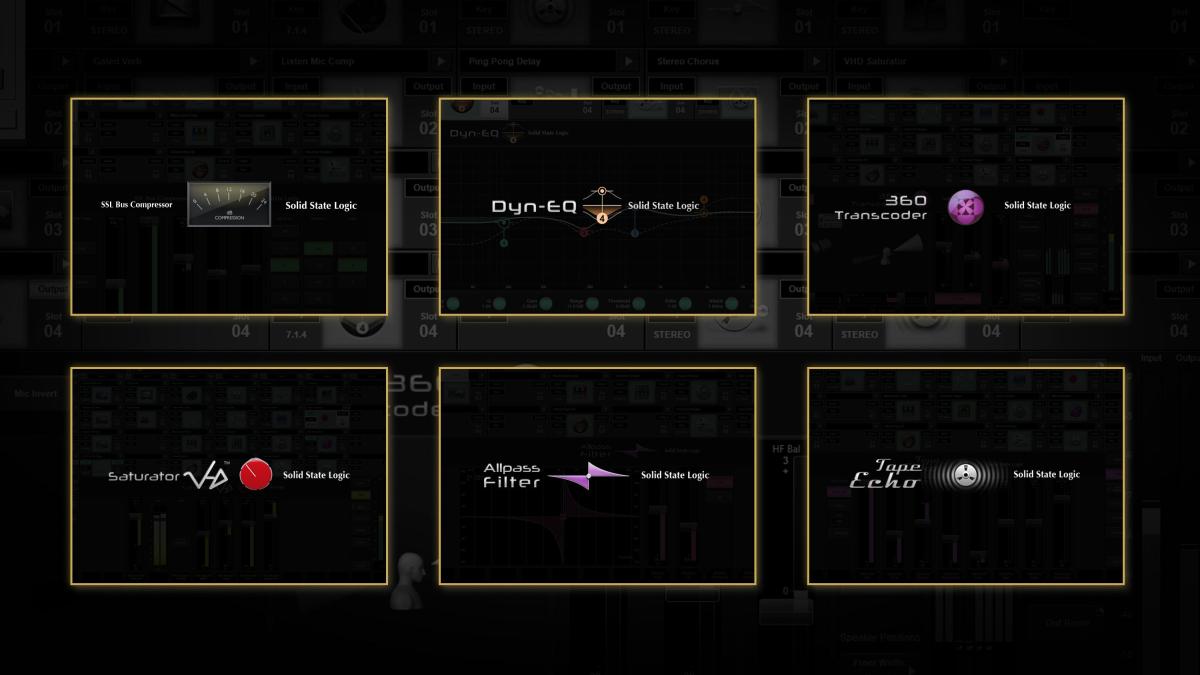

A set of over 60 additional effects and tools are available in the onboard SSL Effect Rack. With ultra-low latency and a dedicated DSP pool, these effects can be used on inserts or any other signal patch point. The selection includes the renowned SSL bus compressor, a multiband compressor, dynamic EQs, tape echo, modulation tools, reverbs, VHD saturation, a transient shaper and many more.

With System T V4.1, a range of FX are available from the FX Rack in the new 9.1.2, 9.1.4 and 9.1.6 formats. This includes delay, dynamics, EQ, modulation and more.

FUSION

The Fusion FX emulates the five key colour circuits found on the award-winning SSL Fusion hardware: Vintage Drive, Violet EQ, HF Compressor, Stereo Image and Transformer. These modules provide five colouration tools designed to bring the perfect combination of added tonal character, weight and space to your mix bus or stereo stems. The Tempest version provides a single HPF for the entire chain, along with individual input and output trims for each processing block (as found in the plug-ins). Where relevant, the mix controls found on the plug-ins are also included. All modules are provided in a single FX to enable simple inclusion on main and stem buses. Each processing block can be enabled individually, meaning blocks can be used individually, or combined as desired. The processing blocks can be reordered to achieve the desired processing order.

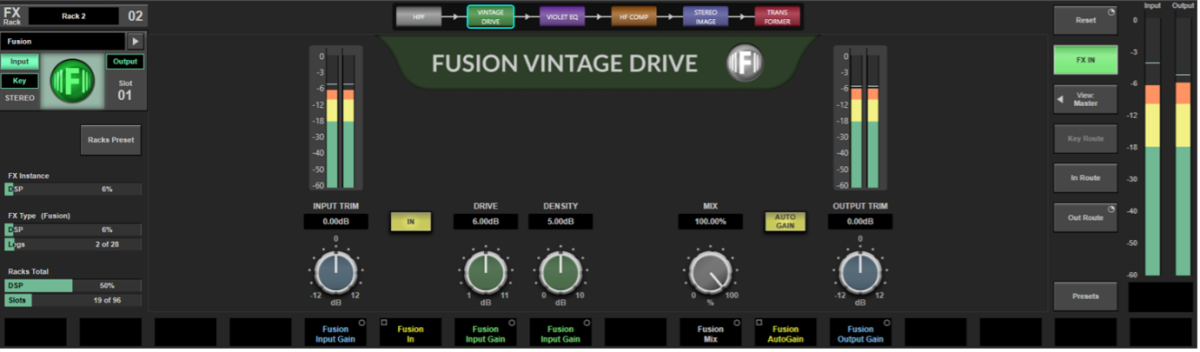

Vintage Drive

Vintage Drive is a unique non-linear harmonic enhancement circuit that brings cohesion and strength to your mix. Drive and Density controls interact to produce harmonic saturation and soft compression derived from overloading an analogue circuit. It can be used lightly for subtle thickening saturation or driven hard for more extreme distortion.

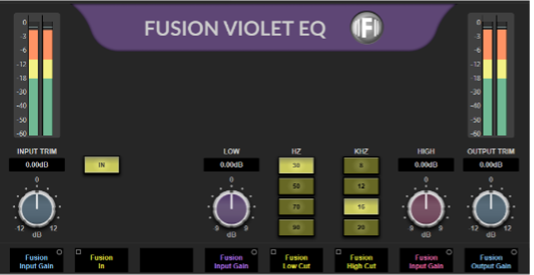

Violet EQ

Violet EQ is an all-new minimum phase-shift, two-band shelving EQ. It draws on the SSL legacy of carefully selected frequencies and response curves to create a musical and intuitive EQ designed to quickly dial in low-end weight and high-end sheen. High and Low frequency circuits each offer four switched frequency points and +/-9dB attenuation.

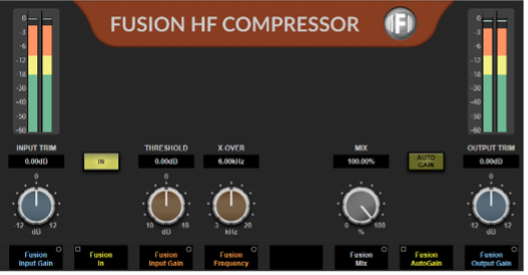

HF Compressor

High Frequency Compressor recreates the distinctive high frequency smoothing circuit from SSL Fusion. A compressor that effects high frequencies only, optimised for smooth and transparent harshness reduction and a tape-like high-frequency roll off – great for taming brittle high frequency fizz.

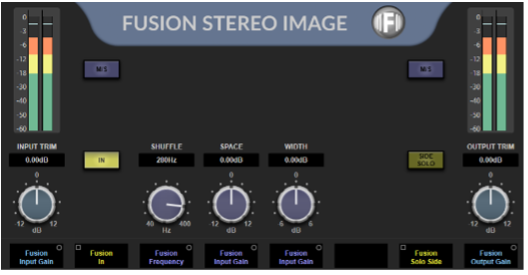

Stereo Image

Stereo Image enhancer provides a Mid-Side circuit that manipulates the Side signal, allowing for widening and spatial manipulation of the stereo field. The ‘Space’ circuit is a frequency-dependent width control based on the concept of Stereo Shuffling, allowing injection of interesting depth effects into the mix. Stereo Image exposes a ‘Shuffle’ control for changing the frequency cut-off in the Space circuit, allowing you to add weight and presence or carve space in the stereo field.

Transformer

Emulating the 600-ohm, 1:1-wound under-damped transformer found in the Fusion hardware, Transformer introduces subtle low-frequency saturation, alongside a high-frequency phase-shift. From subtle presence and body on vocals and instruments, to tight lows and sizzling highs on mixes and masters, the combination of processing effects Transformer offers could be the magic your mix or master is after.

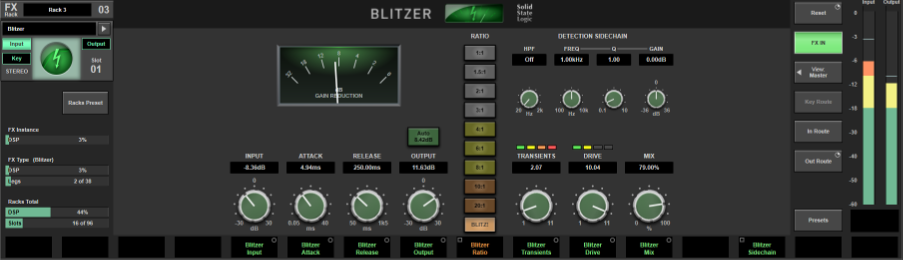

Blitzer

Introducing a completely new compressor algorithm to the System T console! The Blitzer is an ultra-versatile compressor that can produce soft saturating compression to explosive brick-wall limiting.

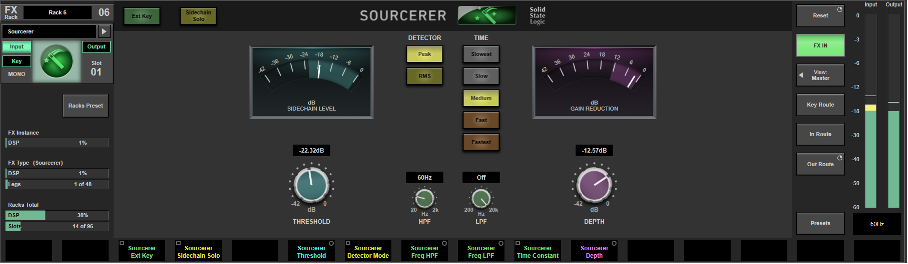

Sourcerer

The SSL DSP wizards have been working their magic again, this time to make feedback and stage bleed from open mics disappear in front of your very ears! Conjuring up an instance of the Sourcerer displays an enchantingly intuitive interface for adjusting the detection threshold and amount of attenuation, to allow desired source signals to pass through while casting the vanishing spell on background noise. A carefully selected concoction of time constants provides precise control over the speed at which the Sourcerer banishes unwanted signals from the digital ether.
