THD-Labs TAI-SSLJ/K Tangerine Automation Interface

THD-Labs TAI-SSLJ/K Tangerine Automation Interface

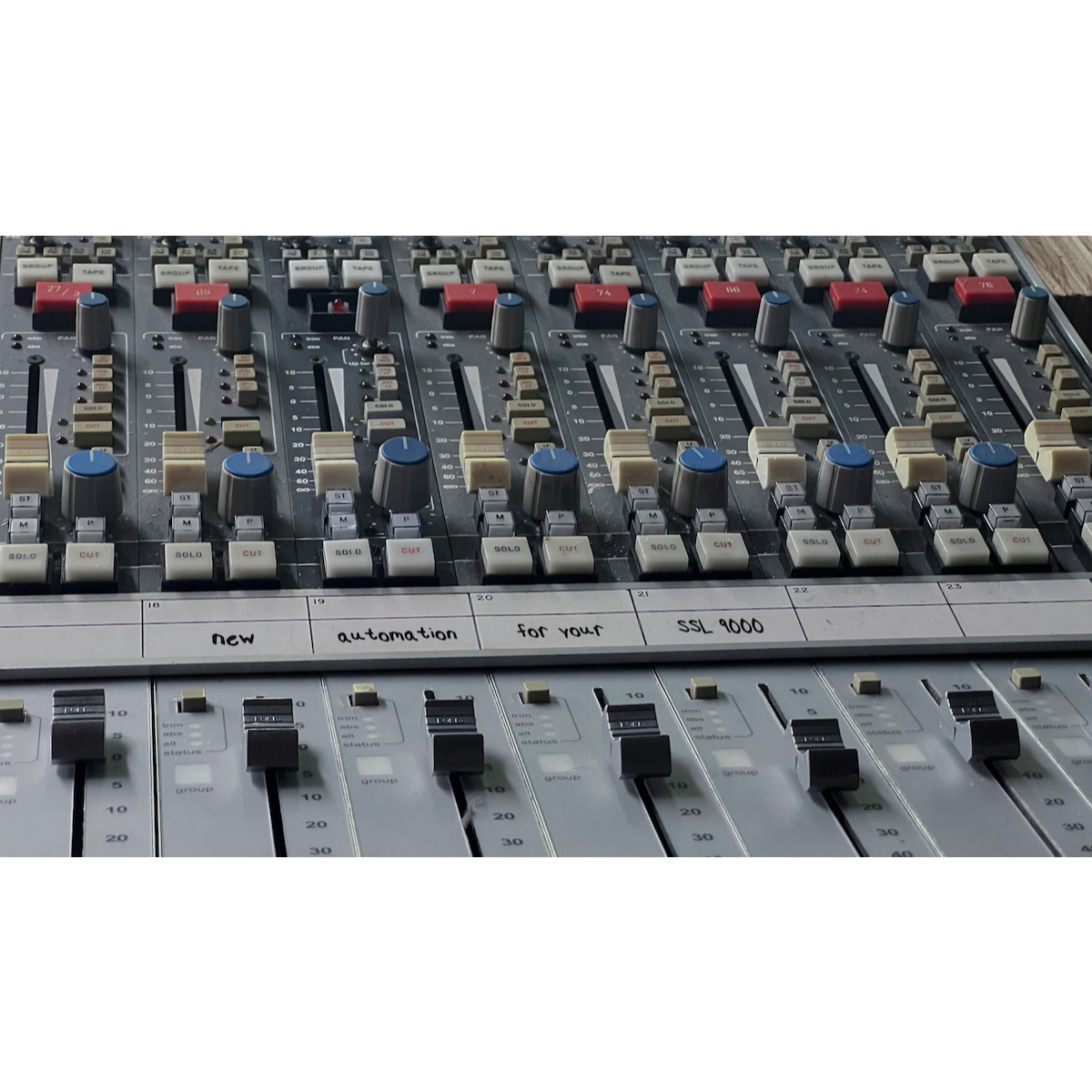

After years of anticipation, THD-Labs is finally bringing its legendary automation interface to the SSL 9000 J and K consoles.

The system includes:

• Large fader automation
• Small fader automation
• Cue automation
• EQ/Insert In/Out automation
• Centre-section groups automation
• Full channel-strip recall
• Centre-section transport and master section, via our new touchscreen controller
• K-series Utilipan features

THD-Labs is looking into porting K-series Utilipan features to J-series consoles.

A unique automation controller

Afraid that your current centre-section transport control will stop working at any moment? The optional hybrid touchscreen automation controller replaces the existing centre-section control and brings all automation features right to your fingertips.

Features:

Automation:

• 8 to 96+ channels of automation, configured to match channel count
• Use your DAW as the automation software. Available workflows:
  • INJEKTOR (AAX/AU/VST plugin)
  • HUI
  • HUI hybrid

• READ / WRITE resolution: 10 bits (1024 steps) +/- 0.1 dB precision
• Control and Automate all of the following:
  • Large Fader Volume
  • Large Fader Cut
  • Small Fader Volume
  • Small Fader CUT
  • EQ In/Out
  • Insert In/Out
  • Cue In/Out
  • FX 1-6 In/Out

• Support for TRIM and ABSOLUTE modes
• Enhanced fader level match (to match fader position in motor OFF mode)
• Set individual channel automation modes directly from the fader’s status switch
• Definable post-write automation mode toggle
• Master fader automation
• Grouped Automation
• Any console fader can be used as a virtual DAW controller

Console Features:

• Control console groups
• Create and load mix scenes
• Built-In tests and diagnostics

To learn more about THD-LABS, Click Here
View more products from THD-LABS

Hardware specifications:

The TAI for SSL 9000 J / K consoles installs directly inside the consoles; no external chassis required. It consists of:

• 1 motherboard controller per bucket of 8 channels
• 1 centre-section master motherboard
• 1 touchscreen-based master control unit (optional)
• All cabling and hardware required for installation

The system runs on the console power supply; no external power needed.

All components are RoHS lead-free.

Compatibility:

Injektor supports computers running:

• macOS 10.9.5 (Mavericks) - macOS 13 (Ventura) Compatible with both Intel and Apple M1 processors.
• Windows 10 / Windows 11

TaiMothership plug-in is tested for:

• Pro Tools 11 - Pro Tools 2024 (Rosetta currently required)
• Logic Pro X
