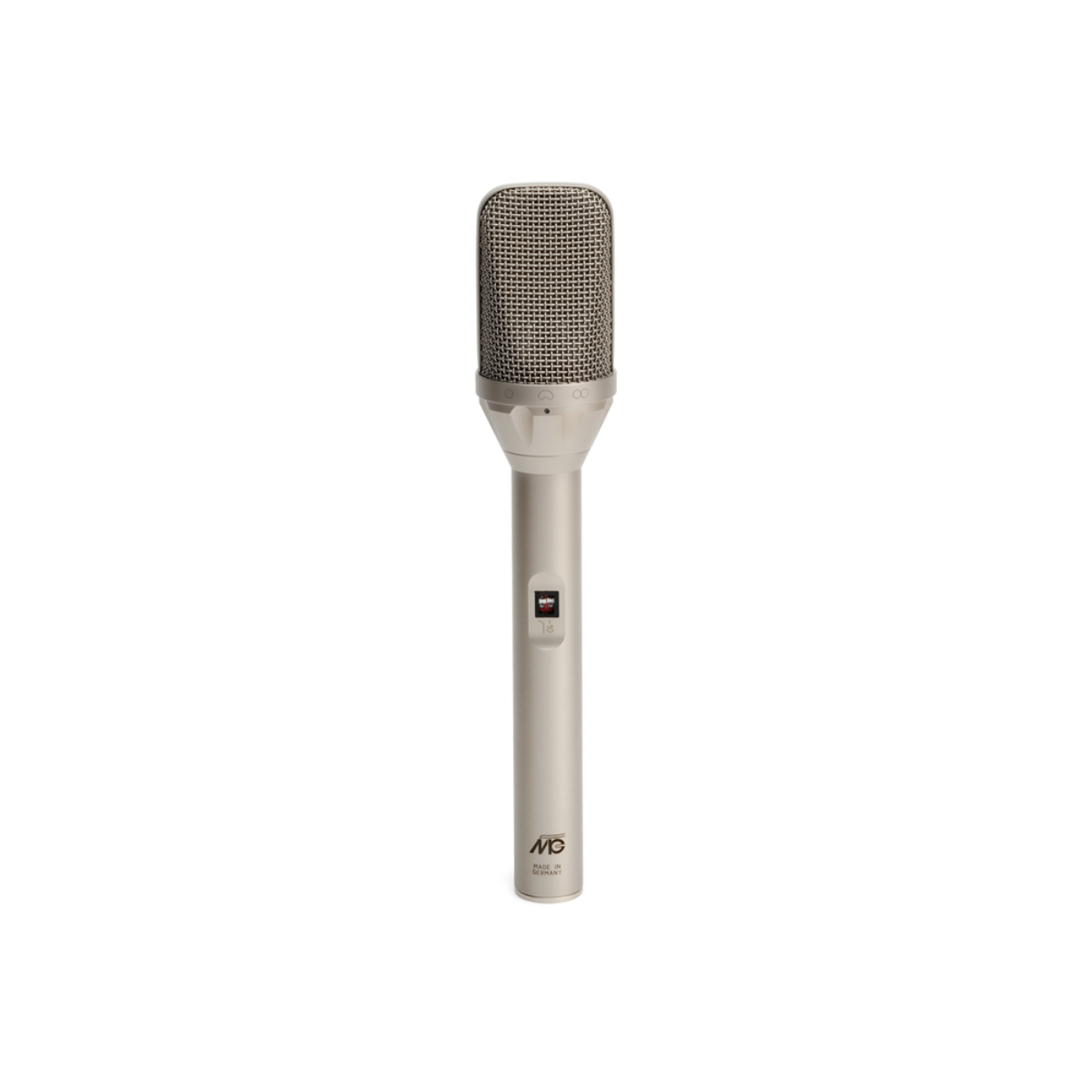

Studio Microphone UMT 70 S

The UMT 70 S condenser microphone features our legendary original M7 capsule with PVC diaphragms which is renowned for its sound quality, outstanding performance, high sensitivity, and improved signal-to-noise ratio. The microphones guarantees particularly clean and colourless sound reproduction. It is well suited for instrumental and vocal soloists in radio and television broadcasting and any other kind of accurate production.

The pressure gradient transducer is a dual capacitor design that uses a single brass back plate and two large-diameter gold-plated plastic diaphragms. Varying the polarization voltage applied to the diaphragms results in three directional characteristics: omni, cardioid and figure 8. A ring at the bottom of the microphone’s head grille is used to select the pattern. The transformerless circuit design substitutes the previous transformer for a symmetrical output stage yielding a superb transient response combined with a high RFI rejection. The circuit technology also achieves a wider dynamic range by lowering the self-noise floor and increasing the headroom for loud signals. A 10 dB attenuator has been installed to reduce the sensitivity of the microphone when placed near very loud sound sources. A sensitivity reduction for low frequencies can be utilized to suppress the proximity effect when closemiking with the cardioid or figure 8 patterns.

Features:

• Condenser microphone
• Omni-directional, cardioid, figure of 8
• Large diaphragm capsule
• PVC diaphragm
• Transistor pre-amplifier
• Phantom powering P48

To learn more about Microtech Gefell, Click Here
View more products from Microtech Gefell

• Polar pattern - Omni, cardioid, figure of 8
• Acoustic operating principle - Pressure gradient transducer
• Frequency range - 20 Hz to 20.000 Hz
• Sensitivity at 1 kHz - 7 / 13 / 8 mV/Pa ± 3 dB
• Switch position ""reduced bass roll-off at 90 Hz -10 dB ± 1 dB
• Output impedance - 150 Ohm
• SPL for THD 0,5 % - 139 / 134 / 139 dB
• With 10 dB preattenuation - 149 / 144 / 149 dB
• Dynamic range - 120 dB
• Current consumption - 3 mA
• Output connector - XLR3M
• Weight 290 g
• Length 217 mm
• Surface - Satin nickel, Black matt

• Noise level
• CCIR 468-4 - 22 dB
• DIN EN 60268-4 - 14dB-A

• Signal-to-noise ratio
• CCIR weighted - 72 dB
• A-weighted - 80 dB

• Diameter
• Capsule - 42 mm
• Preamplifier - 21 mm
