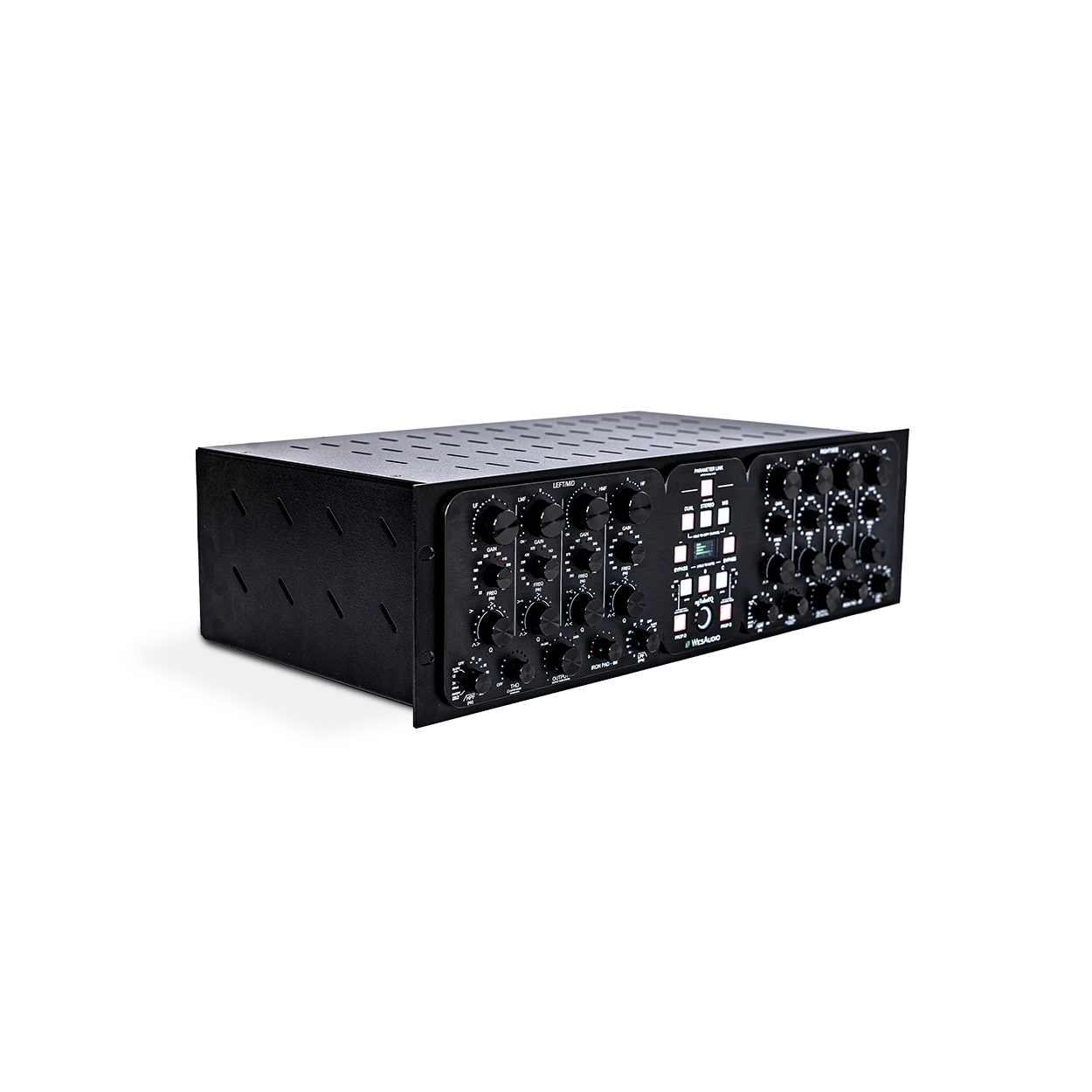

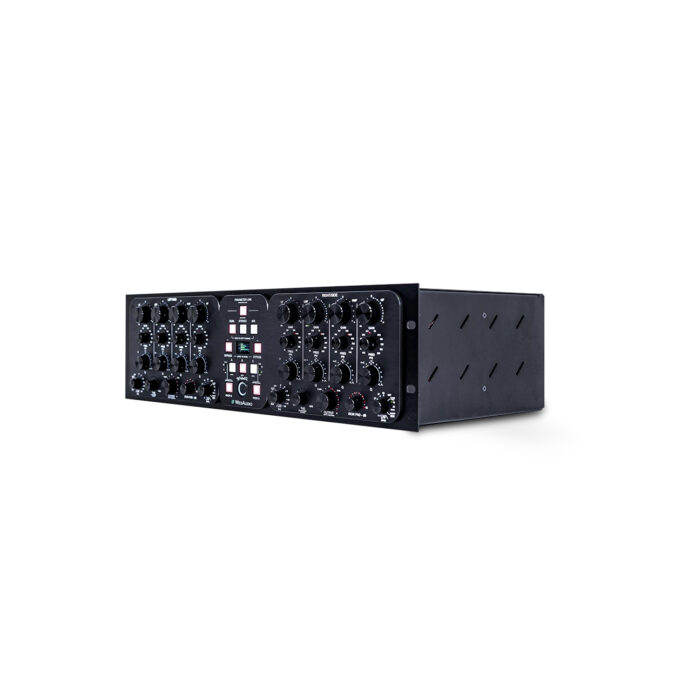

WesAudio NGTUBEEQ Next Generation Tube Equalizer

WesAudio NGTUBEEQ Next Generation Tube Equalizer

For decades, tube equalizers have been cherished for their rich, musical sound, shaping the sonic character of countless classic recordings. Our ngTubeEQ elevates this legacy, offering a refined, analog experience seamlessly integrated into the modern digital workflow. With its lush tonal quality and intuitive digital control, the ngTubeEQ is set to become an indispensable tool in studios worldwide, continuing our tradition of blending vintage charm with contemporary functionality. Experience the best of both worlds – the soul of vintage sound and the ease of digital technology with ngTubeEQ.

100% Analog Tube Equalizer

The ngTubeEQ stands out as a fully analog processing unit, boasting 26dBu of headroom for exceptional clarity and dynamic range. Despite its digital control capabilities for ease of use and precision, the analog signal path ensures that all processing maintains the rich, full quality expected from a premium analog system.

Heart of the Unit: Passive Section

At the core of this unit is a beloved fully passive EQ section, designed around custom inductors. This classic approach to equalization offers the warm, musical sound characteristics that audio professionals and enthusiasts treasure.

4 Passive Bands

This unit features four passive EQ bands, each offering 12 selectable frequency points for detailed sound shaping. Bands can be individually disabled for tailored frequency manipulation. The variable Q configuration allows for precise bandwidth adjustments. Covering a total frequency range from 22Hz to 28kHz, each band supports both Bell and Shelf configurations, providing versatility in sound contouring

LPF & HPF Active filters

Our active filter circuit offers adjustable low-pass and high-pass filters with selectable slopes of 12dB/octave or 24dB/octave. The entire circuit can be fully bypassed at the analog level for uncolored audio processing. Controls are variable, allowing for precise adjustments to fit your sound engineering needs.

3 Modes of Operation

Enhance your audio processing with three versatile modes designed to fit any production need:

• Dual: Operate two independent channels for distinct processing.
• Stereo: Process stereo tracks to enhance and balance the overall sound.
• Mid-Side: Manipulate the mid and side components separately for precise spatial adjustments and stereo imaging.

Carnhill Transformers

Transformers in the ngTubeEQ aren’t merely functional for signal processing-they enrich the sound with a warm, sonic saturation that’s essential for high-quality audio production. The Carnhill transformers, integral to this equalizer, infuse your recordings with that sought-after vintage flavor, enhancing the depth and warmth of the audio spectrum.

Total Recall and Control Plugin

This unit offers full control and instant recall capabilities through your DAW plugin, supporting all common plugin formats and digital audio workstations. It features a completely new GUI engine and an intuitive UX design. Designed for optimum ease of use, all parameters are accessible directly from the sweetspot, ensuring seamless adjustments during your creative process.

Selectable Output Stage

Choose between two distinct output settings to suit your sound preferences:

• GREEN: Electronically balanced for a cleaner, punchier sound with minimal sonic imprint.
• RED: Tube amplification stage coupled with a transformer balanced output. This setup includes the ‘IRON PAD’ feature, allowing you to increase the unit’s output to aggressively drive the Tube Amplification and transformer sections, while the passive attenuation section maintains consistent output levels.

Hardware A/B/C Buttons to Compare two Independent Settings

Experience the simplicity of the ngTubeEQ as a pure analog signal processor. With just the press of a button, effortlessly switch between three parallel settings to enhance your audio workflow.

THD – Total Harmonic Distortion

Total Harmonic Distortion (THD): Featuring our proprietary harmonic distortion circuit, this system is fully bypassable via an analog relay for clean, unaltered sound. It includes variable control offering 100 precise steps, integrated seamlessly with the internal gain structure to introduce inductor-based saturation for richer audio.

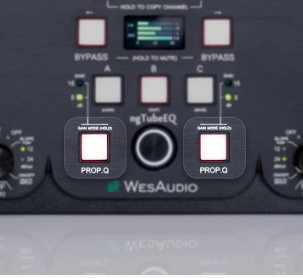

Propotional and Constant Q

Proportional Q: Widely acclaimed for its musical qualities in numerous EQ designs, Proportional Q dynamically adjusts the bandwidth-narrowing the Q as more boost is applied, which enhances the focus on specific frequencies.

Constant Q: Favored for its precision, Constant Q maintains a fixed bandwidth for each band, regardless of gain changes. This feature is highly valued by professional users seeking meticulous control over their source material, ensuring that frequency adjustments are consistent and predictable.

5dB/15dB Gain Mode

The ngTubeEQ offers versatile gain settings for each band, allowing you to choose between a 5dB or 15dB mode. In the 5dB mode, you can adjust with fine granularity, approximately 0.1dB per step. For more substantial adjustments, the 15dB mode provides increments of about 0.25dB per step, facilitating broader changes with precision.

Plugin Integrated Metering

Experience precision with our plugin’s integrated metering, which ranges from 0dBu to 26dBu and includes clip detection to ensure your audio levels are always in check.

Interactive LCD Display: Edit parameters in real-time with our interactive LCD display, which features integrated high-precision metering for detailed and accurate adjustments on the fly.

Plug-In Presets Database

Our plug-in boasts an unlimited number of presets, providing extensive flexibility and customization. Users can organize their settings into personalized categories. Additionally, each unit comes preloaded with a selection of factory presets, expertly crafted to get you started immediately.

Band Listen Mode

This mode allows for the isolation of the fundamental frequency by using precise adjustments of low pass and high pass filters. This is a unique hardware feature, setting it apart from other hardware equalizers as it is purely based on hardware components, offering an unmatched level of precision and control.

Internal Presets Memory

The device offers the capability to store up to 100 presets in its internal memory. This feature is perfect for users who prefer a plugin-free solution, providing convenience and reliability by allowing easy access to settings directly on the hardware.

Main Features Summary:

• 100% Analog Parametric Tube Equalizer: The ngTubeEQ offers pure analog processing with a substantial 26dBu headroom
• Custom Passive Section: At its core, the ngTubeEQ features a passive section built around custom inductors for exceptional sound quality
• Four Passive Bands with Extensive Range: Boasting 12 selectable frequency points per band, covering from 22Hz to 28kHz
• Bypassable Passive Bands with Variable Q: Each band is independently bypassable and includes a fully variable Q for nuanced sound sculpting
• Versatile Active Filters: Active LPF & HPF filters with 12/24 dB per octave slopes, variable controls, and analog bypass switch
• Three Operational Modes: Offering dual, stereo, and mid-side operational modes for flexible sound staging
• Comprehensive DAW Plugin Control: Full control and instant recall through an efficient GUI in all plugin formats, compatible with PC/MAC across all DAWs
• Dual Output Options: GREEN for electronically balanced output, RED for a tube amplification stage with transformer output and IRON PAD
• THD with Proprietary Circuitry: Features a unique harmonic distortion circuit, fully bypassable, that integrates with the gain structure for adjustable inductor-based saturation
• Unique Q Settings: Proportional and Constant Q options, making it a rare EQ with both constant and variable Q implementations
• Flexible Gain Modes: Two gain modes – 15dB (±15dB range, 0.25dB step) and 5dB (±5dB range, 0.1dB step)
• Band Listen Mode to isolate and focus on band fundamental content via LPF and HPF adjustment
• Capability to store up to 100 presets on the device’s internal memory for operation without plugin integration
• Integrated LCD Parameter Display: A compact LCD screen that visualizes metering and parameter changes upon knob interaction
• Comprehensive Metering: Integrated LCD and plugin metering for detailed input and output monitoring
• Band Listen Mode to isolate and focus on band fundamental content via LPF and HPF adjustment
• Hardware A/B/C Memory Settings: Easily switch between three analog preset settings using simple buttons, even when using the ngTubeEQ as a pure analog processor
• USB and Ethernet Connectivity: Supports direct USB connection or network integration via Ethernet for versatile setup options
• Capability to store up to 100 presets on the device’s internal memory for operation without plugin integration
• Analog Automation Capability: Draw automation lines in your DAW to control the analog device settings dynamically, with touch-sensitive encoders for recording automation back to your DAW

To learn more about Wesaudio, Click Here

Brand	WesAudio
Condition	New

• Frequency Response (Normal - Green): 5Hz - 100kHz (-0.5dB)
• Frequency Response (Tube - Red): 20Hz - 25kHz (0.5dB)
• Dynamic Range: 122dB
• THD+N (Normal - Green): 0.0025% (+4dBu), 0.009% (+18dBu)
• THD+N (Tube - Red): 0.04% (+4dBu), 0.016% (+18dBu)
• Noise: -93dBu (A-weighted)
• Crosstalk: -120dB (40Hz), -100dB (20kHz)
• Max Input Level: +28dBu
• Max Output Level: +27dBu
• Input Impedance: 44kOhm
• Common Mode Rejection Ratio: 70dB
• Output Impedance (Normal - Green): 100Ohm
• Output Impedance (Tube - Red): 150Ohm
• Dimensions (W x H x D): 135mm x 483mm x 252mm
• Unit Weight: 8.8kg
• Power Consumption (Max): 45W
