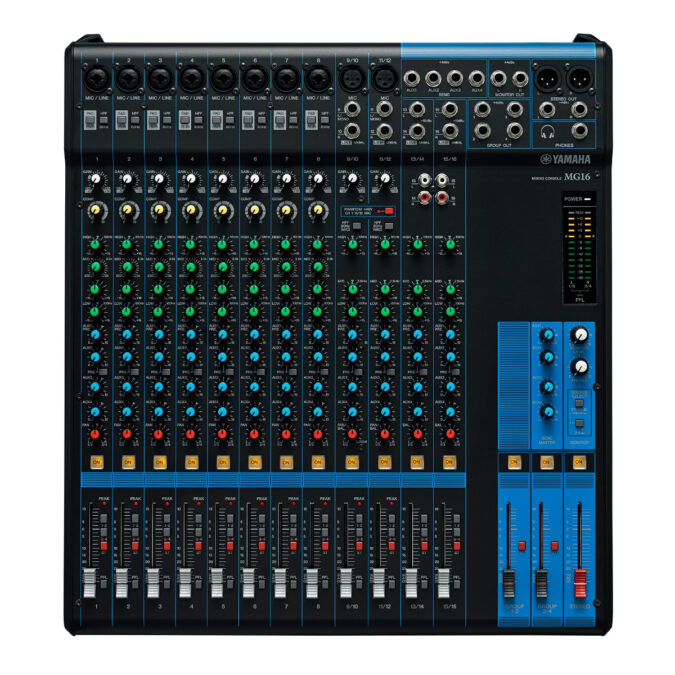

Yamaha MG16 16-Channel Mixing Console

Yamaha MG16 16-Channel Mixing Console

Road Tough. Studio Ready

For more than a century, Yamaha has been building a legacy of superior craftsmanship and innovation exemplified in all of our products, from an unrivaled analog of world-class musical instruments to touring-grade professional audio. Now in its third incarnation, the MG Series embodies this pursuit of design excellence, and incorporates some of the same technologies developed for use in high-end professional consoles, including studio-quality preamps, powerful Digital processing, and a rugged, reliable construction.

With an intuitive, easy-to-use interface, the MG Series boasts an extensive lineup of compact mixing consoles with models ranging from six to twenty channels, suitable for a diverse range of users and applications. For installed, recording, or live music settings, the solid construction and flexible design f these consoles lets you shape your sound with confidence, continually delivering peak performance and a level of sound quality and reliability unrivaled n its class.

Features:

• 16-Channel Mixing Console
• Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
• 4 GROUP Buses + 1 Stereo Bus
• 4 AUX
• “D-PRE” mic preamps with an inverted Darlington circuit
• 1-Knob compressors
• PAD switch on mono inputs
• +48V phantom power
• XLR balanced outputs
• Internal universal power supply for world-wide use
• Rack Mount Kit Included
• Metal chassis

To learn more about yamaha, Click Here
View more products from yamaha

General Specifications:

• Total Harmonic Distortion: 0.03% @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005% @ +24dBu (1kHz), GAIN knob: Min
• Frequency Response: +0.5 dB/-1.5 dB (20 Hz to 48 kHz), refer to the nominal output level @ 1 kHz, GAIN knob: Min
• Hum & Noise Level:
  • Equivalent Input Noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
  • Residual Output Noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
• Crosstalk: -78 dB
• Power Requirements: AC 100 - 240 V, 50 / 60 Hz
• Power Consumption: 30 W
• Dimensions: W 444 mm (17.5"), H 130 mm (5.1"), D 500 mm (19.7")
• Net Weight: 6.6 kg (14.6 lbs.)
• Accessories: Included Accessory: Owner's Manual, Technical Specifications, AC power cord, Rack-mount kit
• Others: Operating Temperature: 0 to +40°C

Outline:

• I/O:
  • Phantom Power: +48 V
• Input Channels:
  • Mono[MIC/LINE]: 8
  • Mono/Stereo[MIC/LINE]: 2
  • Stereo[LINE]: 2
• Output Channels:
  • STEREO OUT: 2
  • MONITOR OUT: 1
  • PHONES: 1
  • AUX SEND: 4
  • GROUP OUT: 4
• Bus: Stereo: 1, GROUP: 4, AUX: 4
• Input Channel Function:
• PAD: 26 dB (Mono)
• HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
• COMP: 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
• EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
• EQ MID: Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz - 5 kHz peaking
• EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
• PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
