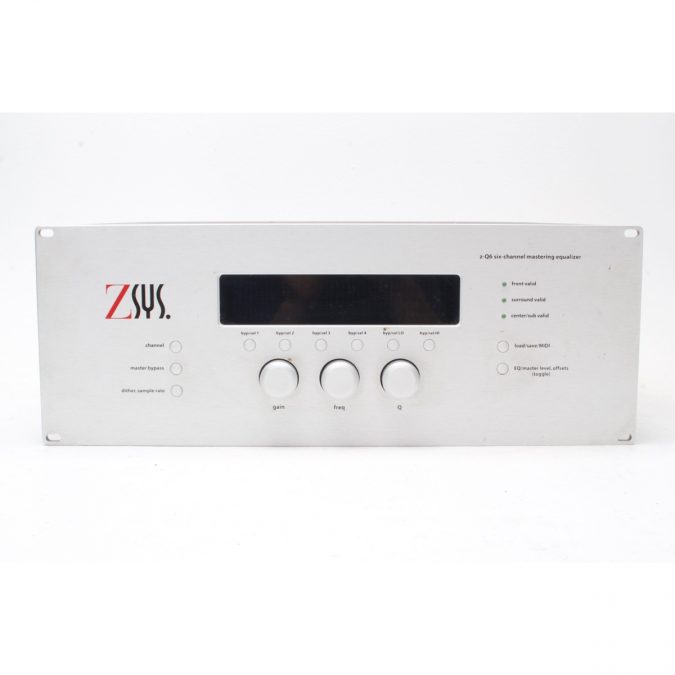

ZSYS z-Q6 6 channel digital parametric equalizer (Used) From Sterling
The z-Q6 was designed from the ground up specifically for the surround-sound mastering suite for the ultimate in surround mastering. The z-Q6 six-channel digital mastering equalizer incorporates Z-Systems’s proprietary digital signal processing algorithms, intuitive user interfaces, and the highest-quality parts. Featuring six channels of 24-bit /96 kHz digital processing and the ability to handle multiple simultaneous sample rates and wordwidths within each channel group.
The z-Q6 offers four bell-shaped filters and two shelving filters per channel, as well as individual channel volume offsets and a master volume control.
the z-Q6 features POW-r wordlength reduction and MIDI automation for snapshot automation.
Product Specifications (z-Q6)

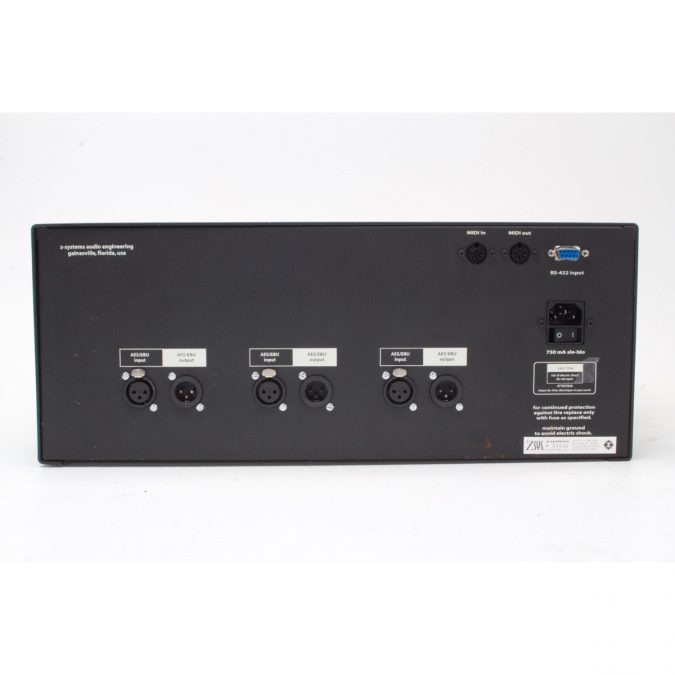

Inputs: 3 AES/EBU (transformer-isolated, 110-ohm terminated)
Outputs: 3 AES/EBU (transformer-isolated, 110-ohm terminated)
Input/output precision: up to 24-bits
Sample rates supported: 44.1 kHz, 48.0 kHz, 88.2 kHz, 96 kHz
Gain control: from -95 dB to +12 dB
Gain resolution: 0.1 dB increments from +12 dB to -12 dB, 1 dB increments from -12 dB to -20 dB, 2 dB increments from -20 dB to -50 dB, 3 dB increments from -50 dB to -70 dB, 5 dB increments from -70 dB to -95 dB
Filter types: 4 parametric, 2 shelving x 6 channels
Center frequency resolution: 1/6-th octave ISO from 28 Hz to 20 kHz
Filter gain/cut: from -95 dB to +12.0 dB
Filter bandwidths: 24 steps from Q = 0.4 to Q = 8.0 (nominal)
Shelf filter slopes: 6 dB/octave
Dither types: 24-bit, 20-bit and 16-bit proprietary floating-point techniques
Noise shaping types: POW-r curves #2 and #3
Digital filter architecture: proprietary minimum roundoff-noise structure
Dynamic range: better than 144 dB
THD+N: better than -135 dB
Number of presets: 50
Power supply: 110/220VAC, 50/60Hz
