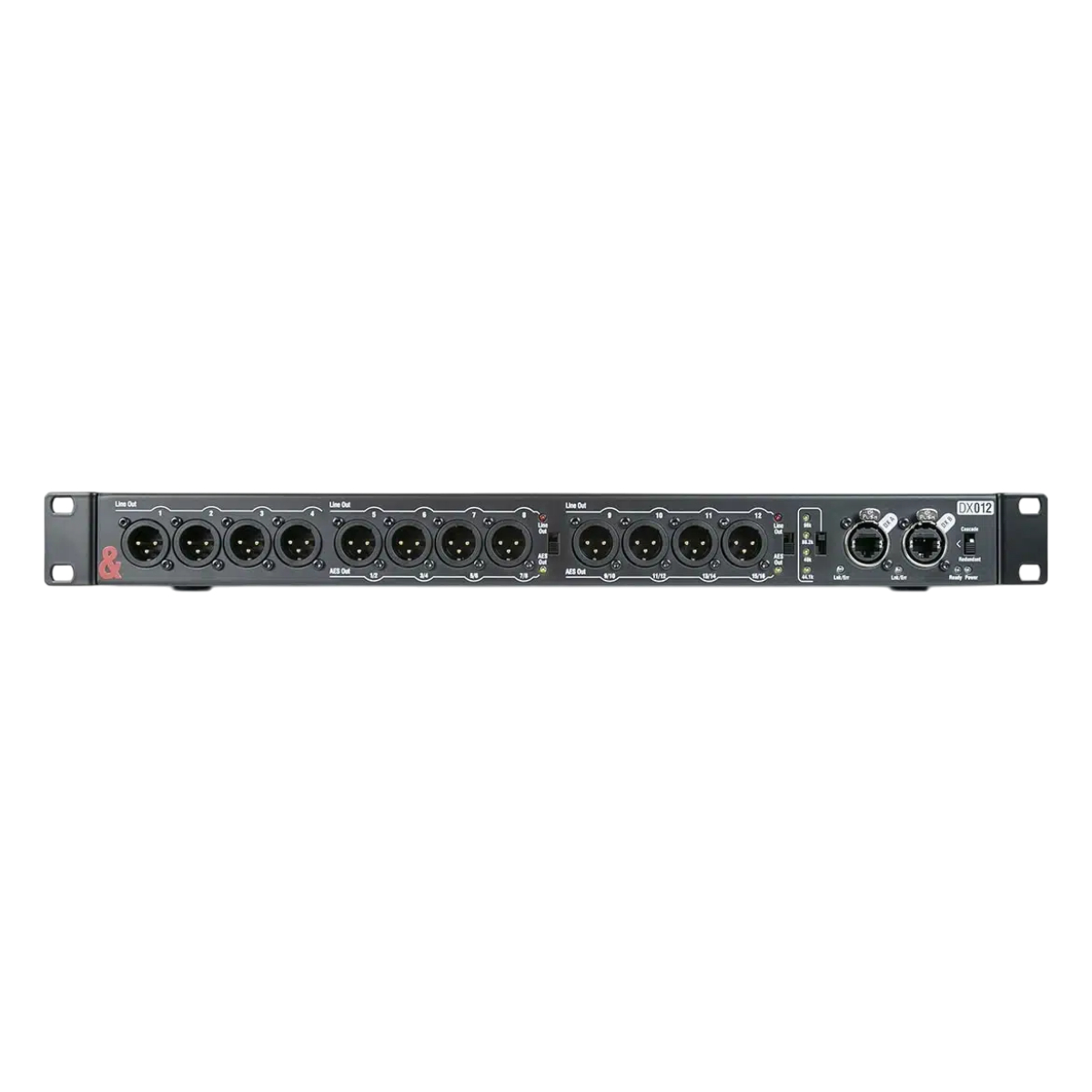

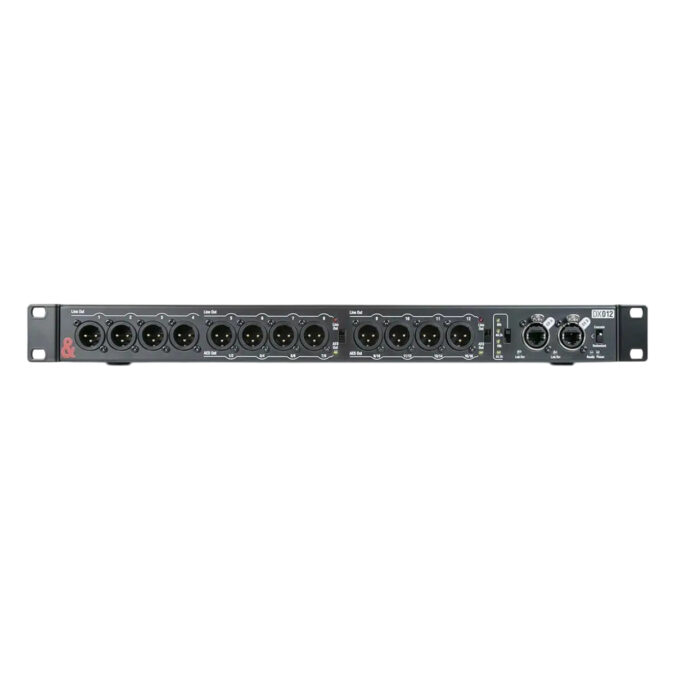

Allen & Heath DX012 12-Output Expander Module for SQ dLive Surface Avantis

Allen & Heath DX012 12-Output Expander Module for SQ dLive Surface Avantis

DX012 provides remote output expansion for Qu*, SQ, Avantis and dLive mixers, and for AHM audio matrix processors.

12 XLR Outs

Flexible switching options between balanced, relay protected analogue and stereo AES digital on outputs 5-12.

AES Compatible

AES outputs globally switchable between 44.1kHz, 48kHz, 88.2kHz or 96kHz.

Redundant & Cascade Modes

Redundant mode supports dual-cable connection to compatible hardware. Cascade mode allows daisy-chaining of up to 2 DX Expanders on each DX port.

Plug-and-Play

No configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.

Need to Get More Out of Your System?

Perfect for feeding IEM systems and amplifier racks, DX012 offers both analogue and AES digital output options in a compact 1U form factor.

Put It Where You Need It

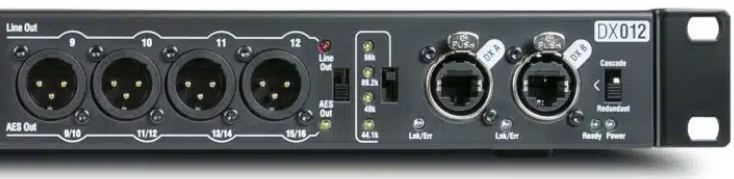

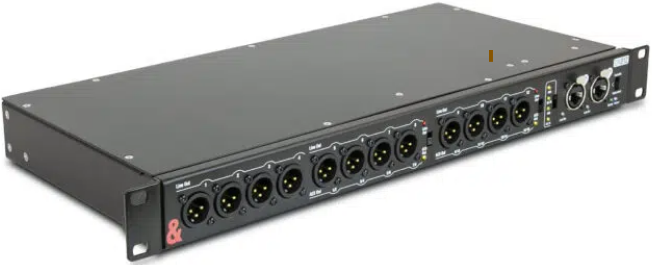

The DX012 can be placed up to 100m away from the mixer for maximum flexibility of positioning and features integrated rack-ears for mounting in a 1U 19″ space. The expander connects via a single Cat5e cable to the mixer or upstream DX Expander via a secure EtherCon port. A second locking EtherCon port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX Expander for additional remote I/O.

Flexible Output Options

The DX012 provides 12 XLR outputs, with three configuration options:

• 12 analogue line outputs
• 8 analogue line outputs + 4 stereo AES outputs
• 4 analogue line outputs + 8 stereo AES outputs

To learn more about allen & heath, Click Here
View more products from allen & heath

• Width: 600mm/23.6"
• Depth: 335mm/13.2"
• Height: 150mm/5.9"
• Weight: 4.1kg/9lbs
