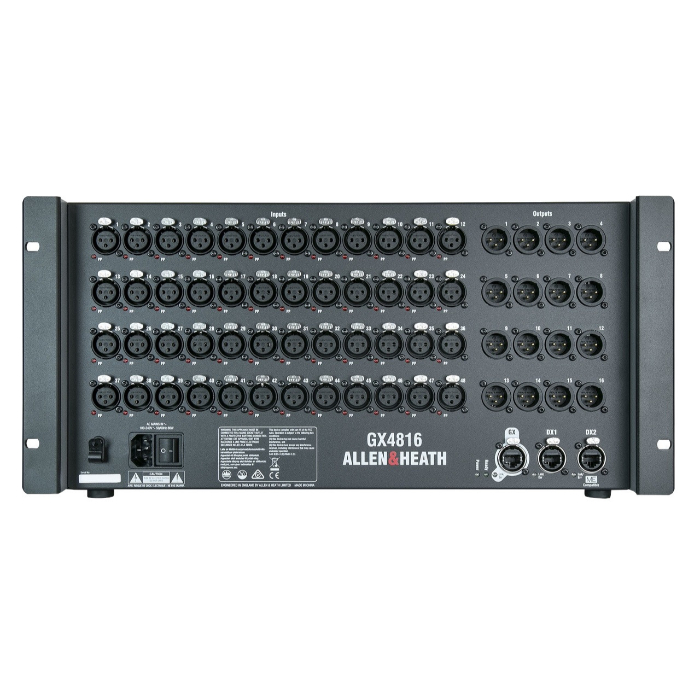

Allen & Heath GX4816 Portable GX Expander with DX Sockets

Allen & Heath GX4816 Portable GX Expander with DX Sockets

Impressive 48-in/16-out Expansion for Your A&H Console

Onstage or at the board, if you need more high-quality I/O for your Allen & Heath dLive or SQ mixing console, then you have to check out the GX4816. This networkable audio expander adds 48 inputs with professional-grade microphone preamps and 16 XLR line outputs to your system, all simultaneously available at 96kHz resolution. If you really need to flesh out your I/O, then the G4816 is the perfect place to start. It features two DX expansion ports, so you can connect up to 32 x 16 more channels of top-notch digital I/O to your Allen & Heath mixing console.

Digital Expansion Made Easy

Don’t you love it when you just plug something in and it works – no mess, no hassle, just hook it up and go? That’s what the GX4816 offers you. As a part of your modular dLive or SQ mixer system, this I/O expander lets you get exactly the connections you need, all via sturdy locking EtherCon ports and standard Cat 5e cables. SQ systems can handle a pair of GX4816s, C Class dLive systems can take three, and you can connect five of them to an S Class rig. Add a DX32 or two DX168 or DX164-W expanders, and you can really rack up the channel count.

Allen & Heath GX4816 Audio Expander Features:

• A 5U, 48-input/16-output, 96kHz digital I/O expansion for A&H dLive and SQ mixing consoles
• Each input features a remote-controllable microphone preamp with individual phantom power LEDs
• Two DX expansion ports let you hook up 1 DX32 or up to 2 DX168/ DX164-W expanders
• Connect up to 2 GX4816s to an SQ system, 3 to a dLive C Class system, or 5 to a dLive S Class system
• Plug-and-play connection via standard Cat 5e cables (EtherCon ports) with automatic IP addressing

To learn more about allen & heath, Click Here
View more products from allen & heath

• Type: Portable GX Expander
• Compatibility: A&H dLive, SQ mixing consoles
• Channels: 48 x 16
• Inputs-Mic Preamps: 48 x XLR
• Outputs-Main: 16 x XLR
• Data I/O: 1 x EtherCon (GX), 2 x EtherCon (DX)
• Rackmountable: 5U
• Power Source: Standard IEC AC cable
• Height: 9"
• Depth: 10"
• Width: 18.9"
• Weight: 17.6 lbs
