DiGiCo Quantum326 Digital Mixing Console

DiGiCo Quantum 326 Digital Mixing Console

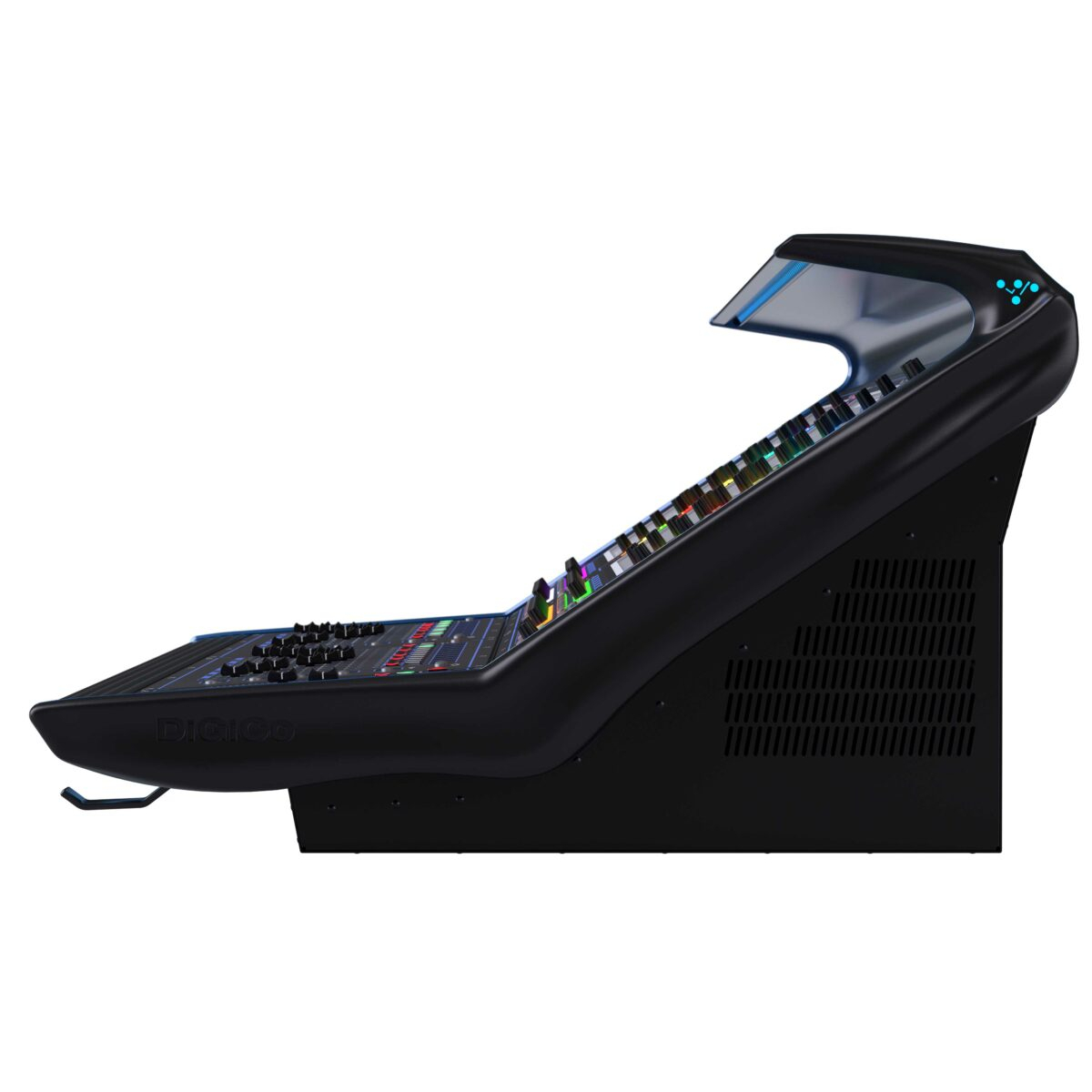

Quantum 326: Leap Ahead

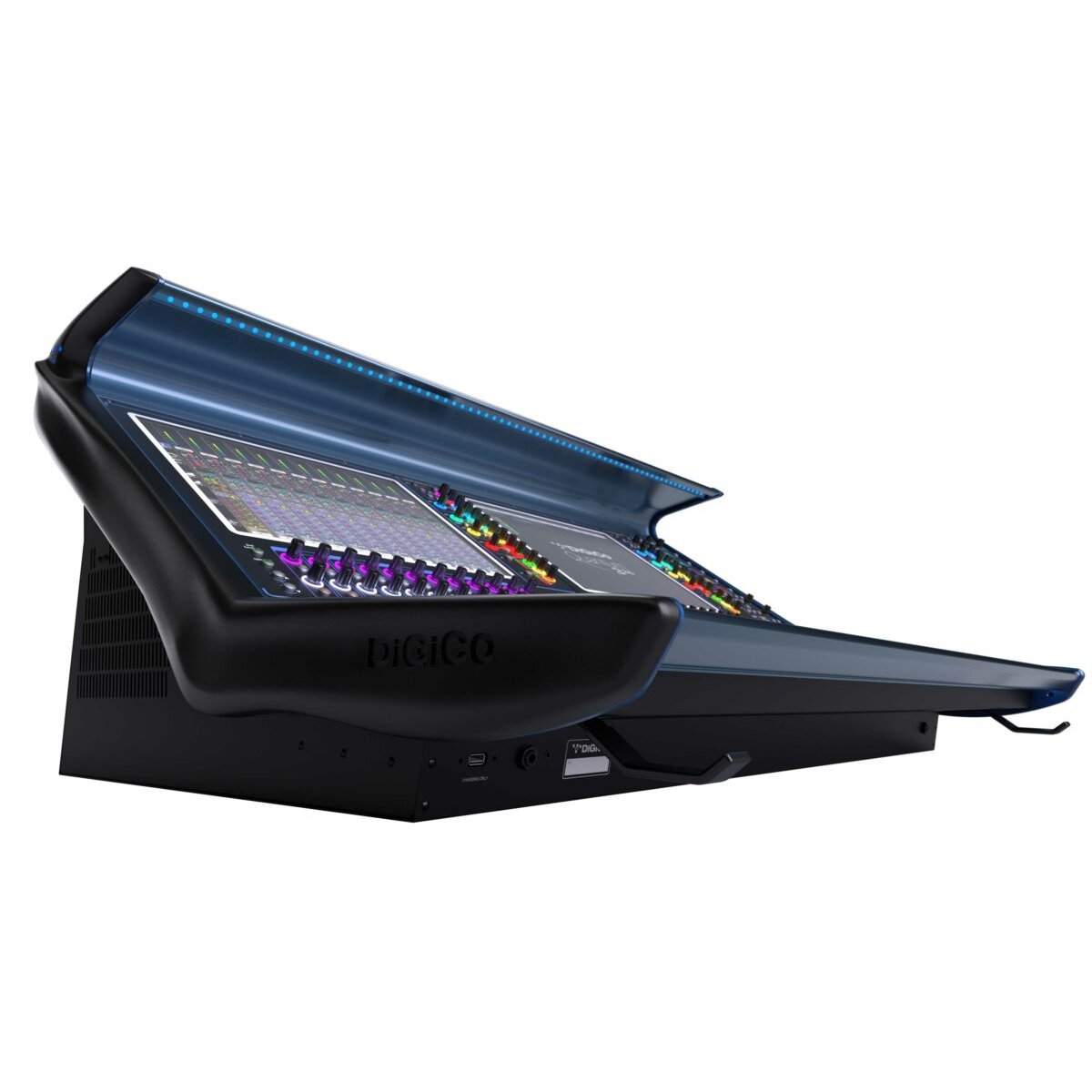

Representing a dramatic leap forward in power and connectivity within a remarkably compact format, Quantum 326 is the younger sister of the Quantum 338.

Boasting a wealth of new design features and enhancements to create ultimate flexibility of use plus the speed of operation that only Quantum can deliver, Quantum 326 is based on seventh generation FPGAs with an entirely new system architecture. The console merges tried and tested workflows with immense processing muscle and bold innovation including a striking new dark mode.

Under The Hood – Ultimate Stadius

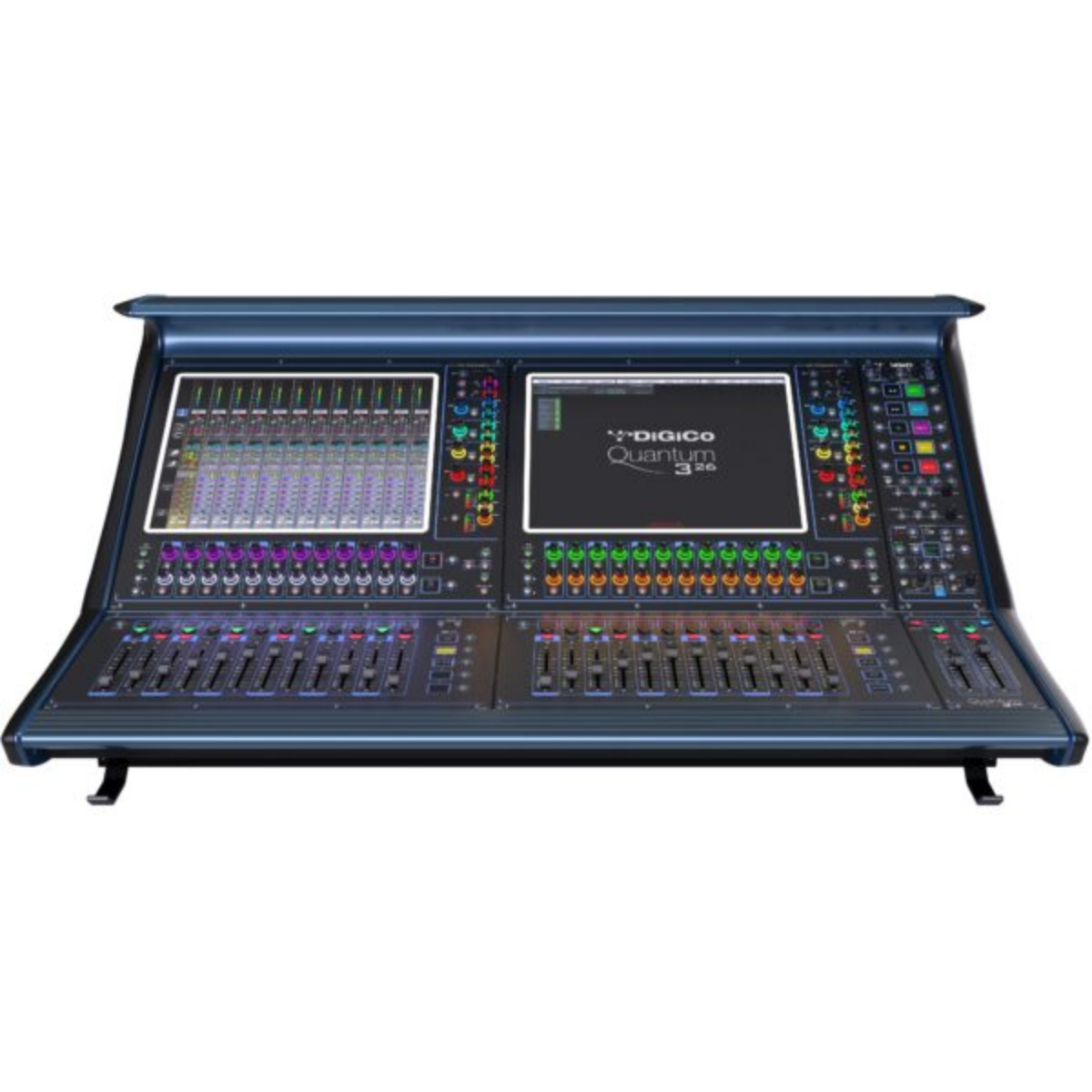

Quantum 326 puts a duo of 17-inch, 1000 nit, high brightness multitouch screens at your disposal, with both the meter bridge and soft quick select buttons displayed on each screen for quick, intuitive operation. In addition, 51 individual TFT channel displays join the floating Quantum chassis with 26 100mm touch sensitive faders laid out in two blocks of 12 fader banks plus two dedicated user-assignable faders, each with high resolution metering.

Superior local audio connectivity and performance comes courtesy of new “Ultimate Stadius” 32-bit ADC and DAC conversion, which is built into the Quantum 326 as standard alongside six single or three redundant MADI connections, dual DMI slots and a built-in UB MADI USB recording interface.

Also included as standard are Mustard Processing channel strips, Spice Rack plugin style native FPGA processing options, Nodal Processing and True Solo.

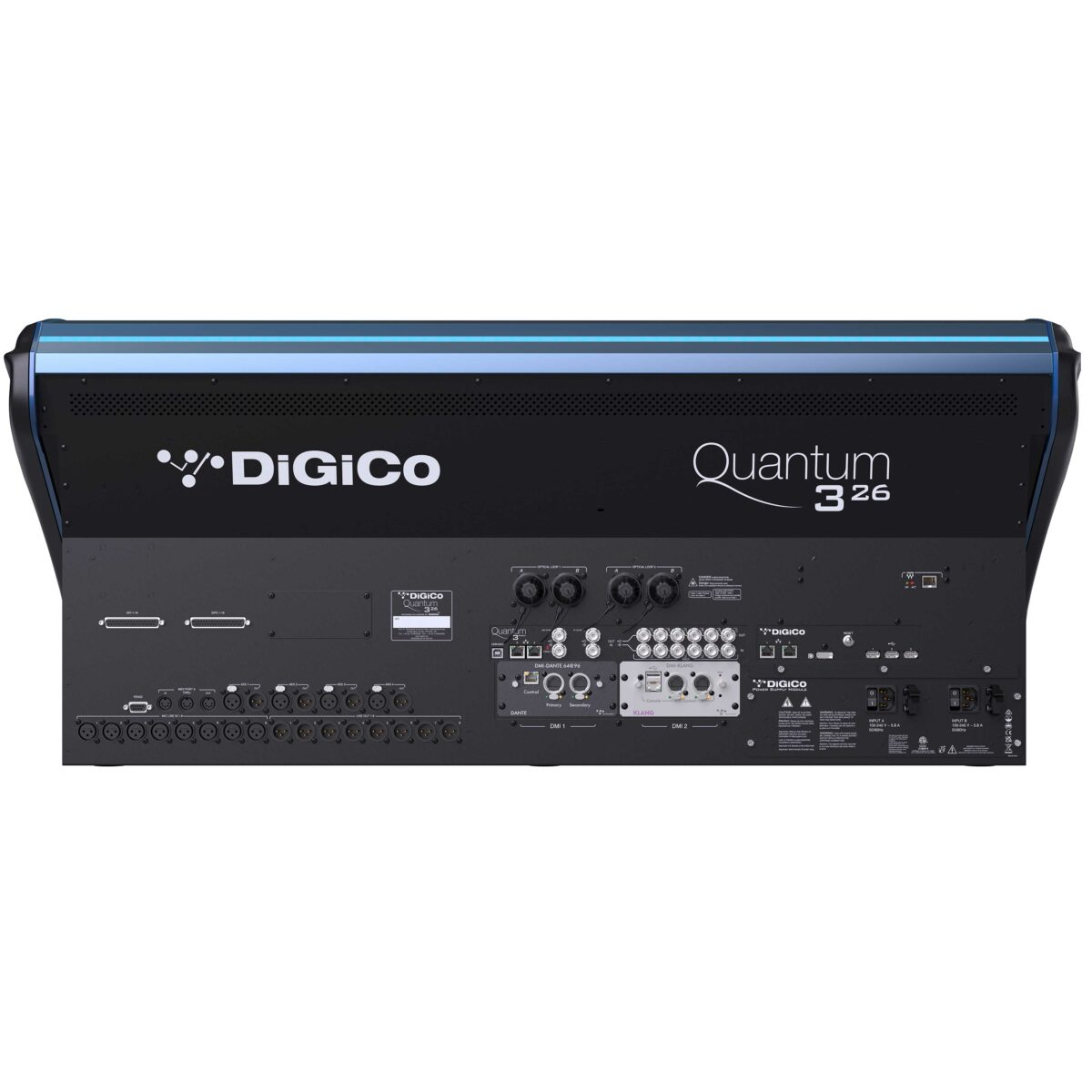

I/O

With a maximum of 128 input channels with 64 busses and a 24 x 24 matrix, all with full channel processing, Quantum 326 takes built-in console I/O to new levels of performance.

The console’s 8 local mic/line inputs and eight local line outputs all feature 32-bit “Ultimate Stadius” converters, while users have access to 4 stereo AES/EBU in/out, triple redundant MADI in/out (which can also be configured as 6 MADI I/O at 48kHz), dual DMI card slots, support for dual second generation Optocore loops, a built-in UB MADI USB interface and more. Waves connectivity can also be added with a SoundGrid Interface card, adding up to an additional 64 I/O.

DMI Interface Options

DMI-AMM

This card offers both the SD-Range and the S-Series consoles up to 64 channels of automatic microphone mixing which can be used in any console input channel.

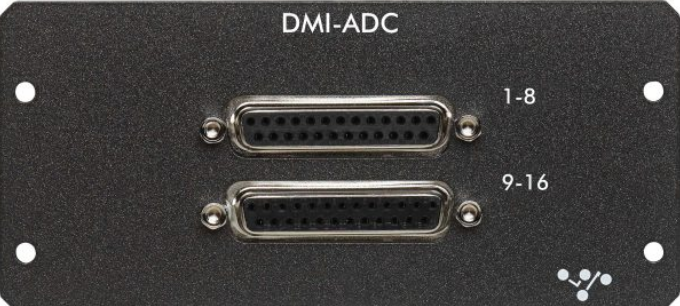

DMI-ADC

This card provides 16 analogue inputs on 2 x 25 way “D” connectors. The ADC card is a line card only. There is no microphone amplifier or phantom power available. There is no gain control function for these inputs (only digital trim). Maximum input level +22dBu.

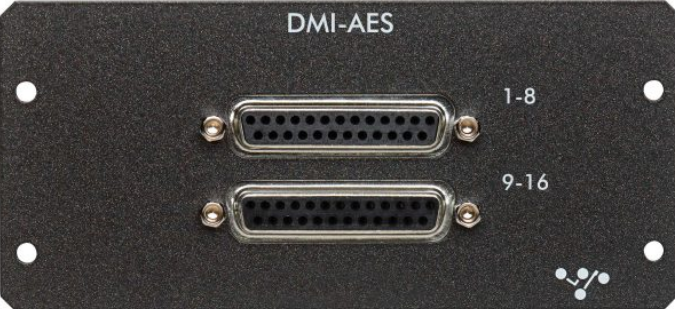

DMI-AES

This card provides 16 Inputs (8 pairs) and 16 outputs (8 pairs) on 2 x 25 way “D” connectors. All AES inputs are provided with sample rate conversion (SRC) by default. All AES outputs are synchronised to the mixer system clock.

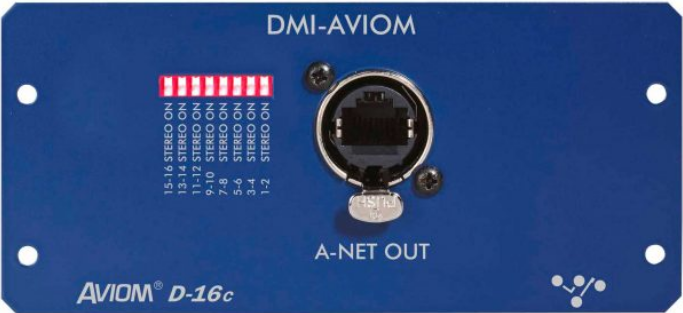

DMI-AVIOM

This card provides 16 output channels at 48kHz (with SRC) and Supports Aviom’s proprietary A-Net Pro16 protocol. It has 1 Ethercon connection and faceplate DIP switched for Stereo output selection.

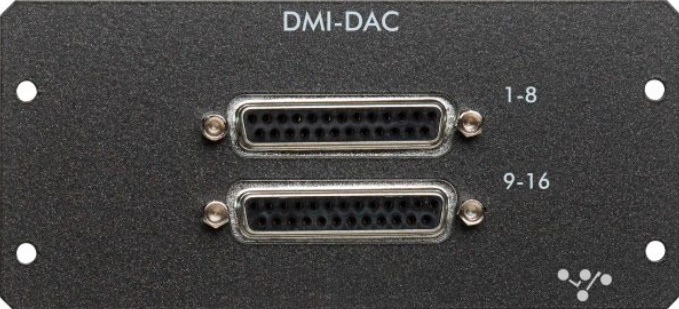

DMI-DAC

This card provides 16 analogue outputs on 2 x 25 way “D” connectors DAC card is line level only. Maximum output level +22dBu (Digital Full Scale).

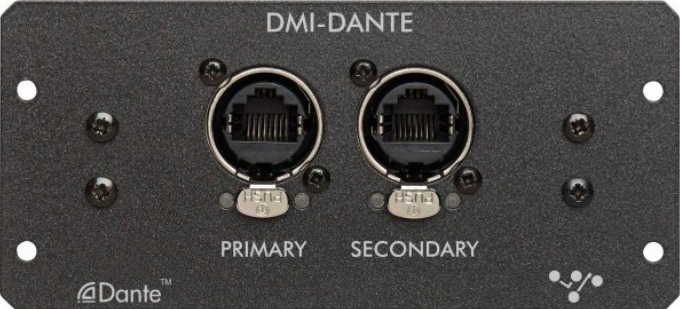

DMI-DANTE

This card provides 64 input and 64 output channels at 48KHz and 32 input and 32 output channels at 96KHz. It is provided with Primary and Secondary (backup) Gigabit Ethercon ports for connection to the Dante network.

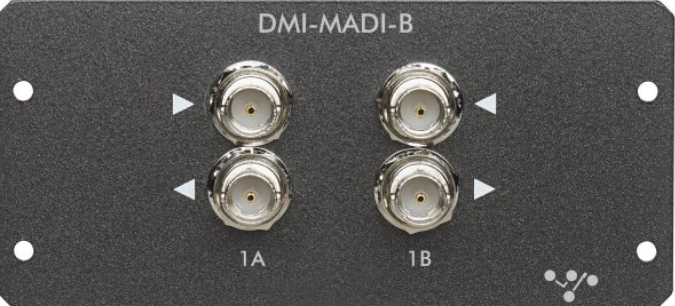

DMI-MADI-B

This card can be used to connect a Standard MADI stream (64 channels in and out) at 48KHz or 96KHz or an SD Series DiGiCo Rack with the appropriate connector (D2-Rack, SD-Rack, SD-MINIRack).

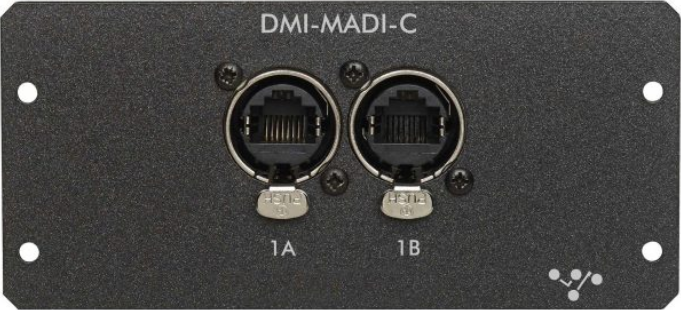

DMI-MADI-C

This card can be used to connect another DiGiCo device that uses RJ45 Standard MADI (64 channels in and out) at 48KHz or 96KHz or an SD Series DiGiCo Rack with the appropriate connector (D-Rack, D2-Rack).

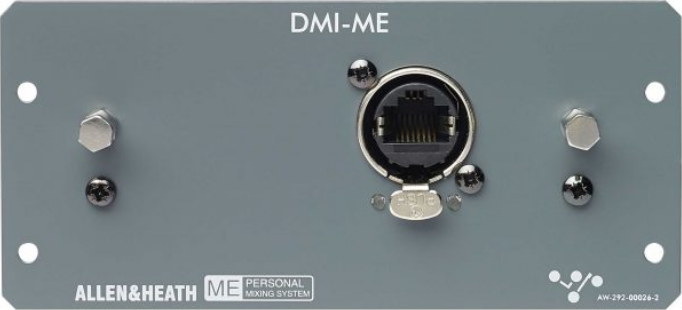

DMI-ME

This card offers a 40 output interface to Allen & Heath ME-1 or ME-500 Personal Mixers. Multiple personal Mixers can be connected to the DMI ME via the ME-U Hub.

DMI-MIC

This card provides 8 microphone preamp inputs on a 1 x 25 way “D” connector. Each channel has individual, low noise gain control and phantom power. User interface is through a normal channel strip on your console. Maximum input level is +22dBu.

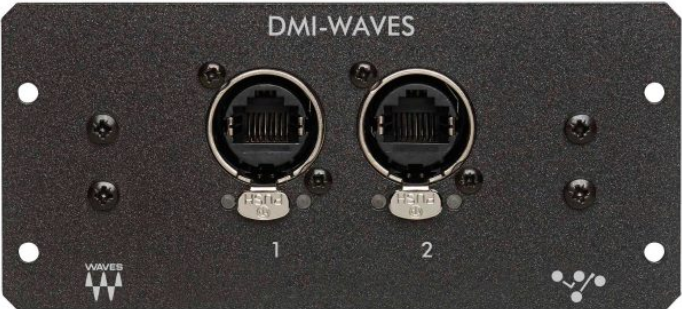

DMI-WAVES

This card will provide 64 input and 64 output channels at 48kHz or 96kHz to the SoundGrid Network with 2 Ethercon ports.

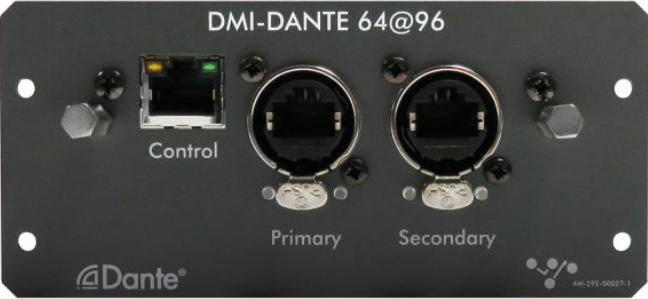

DMI-DANTE64@96

This card provides 64 inputs and 64 outputs to the Dante network at both 48kHz and 96kHz.

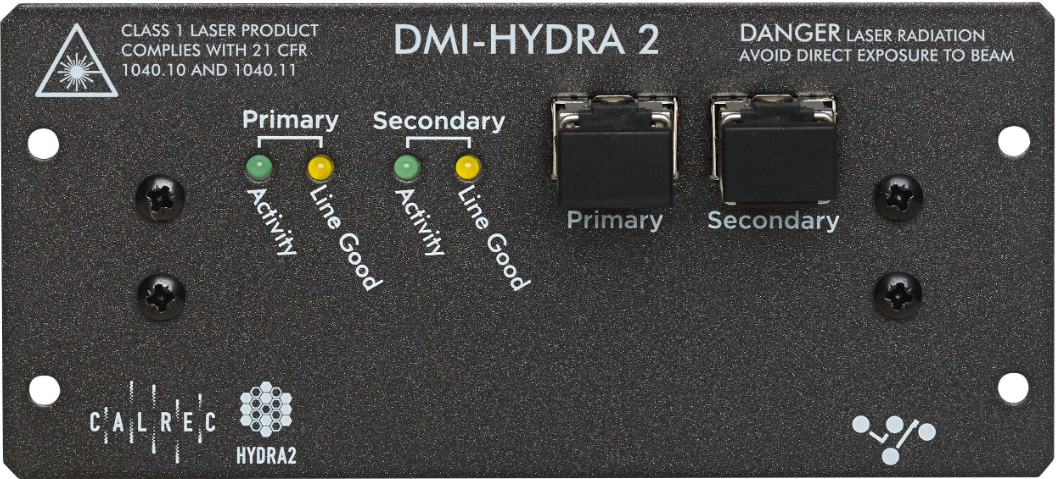

DMI-HYDRA 2

This card will provide 56 Input and 56 output channels at 48kHz with Primary and Secondary (backup) optical connections.

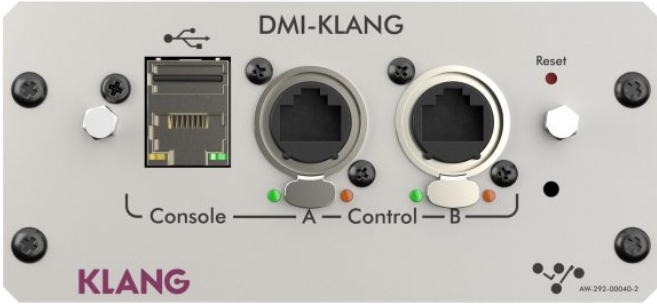

DMI-KLANG

This card provides ultra low latency KLANG immersive processing for up to 16 2-channel mixes with 64 inputs at 48kHz or 96kHz.

DMI-AVB

This card provides 64 inputs and 64 outputs to AVB networks at both 48kHz and 96kHz.

Features:

• 128 Input Channels
• 64 Aux / Sub-Group Busses
• LR/LCR/LCRS/5.1 Master Buss
• 24 x 24 Full Processing Matrix
• 286 Dynamic Equalizers
• 64 Nodal Processing instances

To learn more about DIGICO, Click Here
View more products from DIGICO

Brand	DiGiCo
Condition	New
Control Surface	MADI & One Multi-Mode Optics HMA, MADI & One Multi-Mode Optics ST, MADI Only

• Faders: 26 x 100mm touch-sensitive, motorised
• Screens: 2 x 17" LCD high - brightness, high - resolution touch screens
• Input Channels: 128
• Busses: Up to 64 Aux / Group busses with full processing Mono / Stereo / LCR / LCRS / 5.1
• Matrix: Up to 24 Input / 24 Outputs with full processing
• Control Groups: Up to 24, selectable for VCA-style, Moving fader, Mute Group
• Internal FX: Up to 24 stereo effects comprising floating point reverbs and delay/chorus/pitch/enhancer
• Spice Rack: 8 mono / 4 stereo Rack Slots
• Mustard Proc: 36 Processing Strips
• Nodal Proc: 64 Nodal Processors
• Local I/O: 8 x 32bit mic/line I/O, 8 x AES I/O
• MADI Interface: 6 x interfaces @ 48kHz, 3 interfaces @ 96kHz, BNC connectivity
• Optocore Interface: Optional (dual loop available)
• Sampling Rates: 48kHz / 96kHz
• GPI/GPO: 16
• DMI: 2 x DiGiCo Multichannel Interface
• Waves: Optional
• Ext Sync: Wordclock, AES, MADI, Optocore
• Quantum 326 Dimensions: 1124mm (w) x 805mm (d) x 482mm (h)
• Quantum 326 Weight: 52Kg (150Kg with flightcase)
• Quantum 326 Flightcase: 1251mm (w) x 646mm (d) x 1151mm (h)
• Power Requirements 100V-240V, 50-60Hz, 295VA

Audio Specification:

• Sample Rate: 48kHz or 96kHz
• Processing Delay: 1ms Typical (channel, SD Rack input through L-R Buss to Stage Output @ 96kHz)
• Internal Processing: Up to 40-bit, Floating Point
• A>D & D>A: 32-bit Converter Bit Depth
• Frequency Response: +/- 0.15dB (20Hz - 20kHz)
• THD: <0.002% @ Unity Gain, 0dB Input @ 1kHz
• Channel Separation: Better Than 120dB: (40Hz - 15kHz)
• Residual Output Noise: <100dBu Typical (20Hz - 20kHz)
• Microphone Input: Better Than -128dB Equivalent Noise
• Maximum Output Level: +22dBu
• Maximum Input Level: +22dBu

Input Channel:

• Name: User-Defined / Presets
• Channel Selection: Mono / Stereo / Multi
• Input Routing: Main & Alternate Input
• Analogue Gain: -20 to +60dB
• Phase: Normal / Reverse
• Digital Trim: -40 to +40dB
• Delay: Up to 1.3s
• DiGiTuBe: Drive 0.01 - 50.0 Bias 0 - 6
• LPF: 20 - 20kHz, 24dB/Oct
• HPF: 20 - 20kHz, 24dB/Oct
• Insert A: (Pre EQ/Dyn) On/Off

Aux / Group / Matrix Output:

• Name: User-Defined / Presets
• Phase: Normal / Reverse
• Digital Trim: -20 to +60dB
• Delay: Up to 1.3 sec
• DiGiTuBe: Drive 0.01 - 50.0 Bias 0 - 6
• LPF: 20 - 20kHz, 24dB / Oct
• HPF: 20 - 20kHz, 24dB / Oct
• Insert A: (Pre EQ/Dyn) On/Off
