Quantum 5: Own The Room

Quantum 5: Own The Stage

The iconic SD5 paved the way to greatness with its immense power. The Quantum 7 showed you the supremacy to tackle any challenge, now the Quantum 5 is ready to take over.

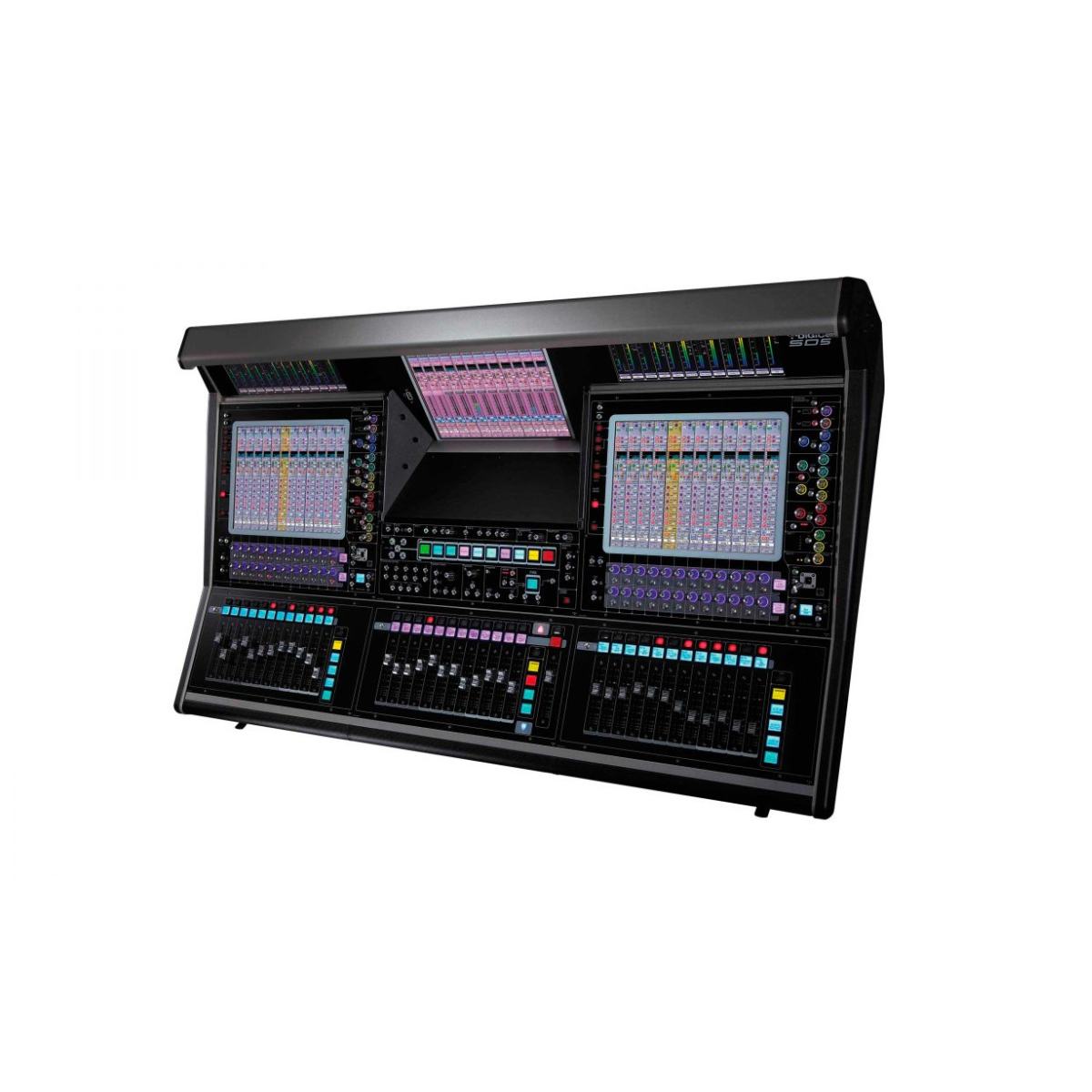

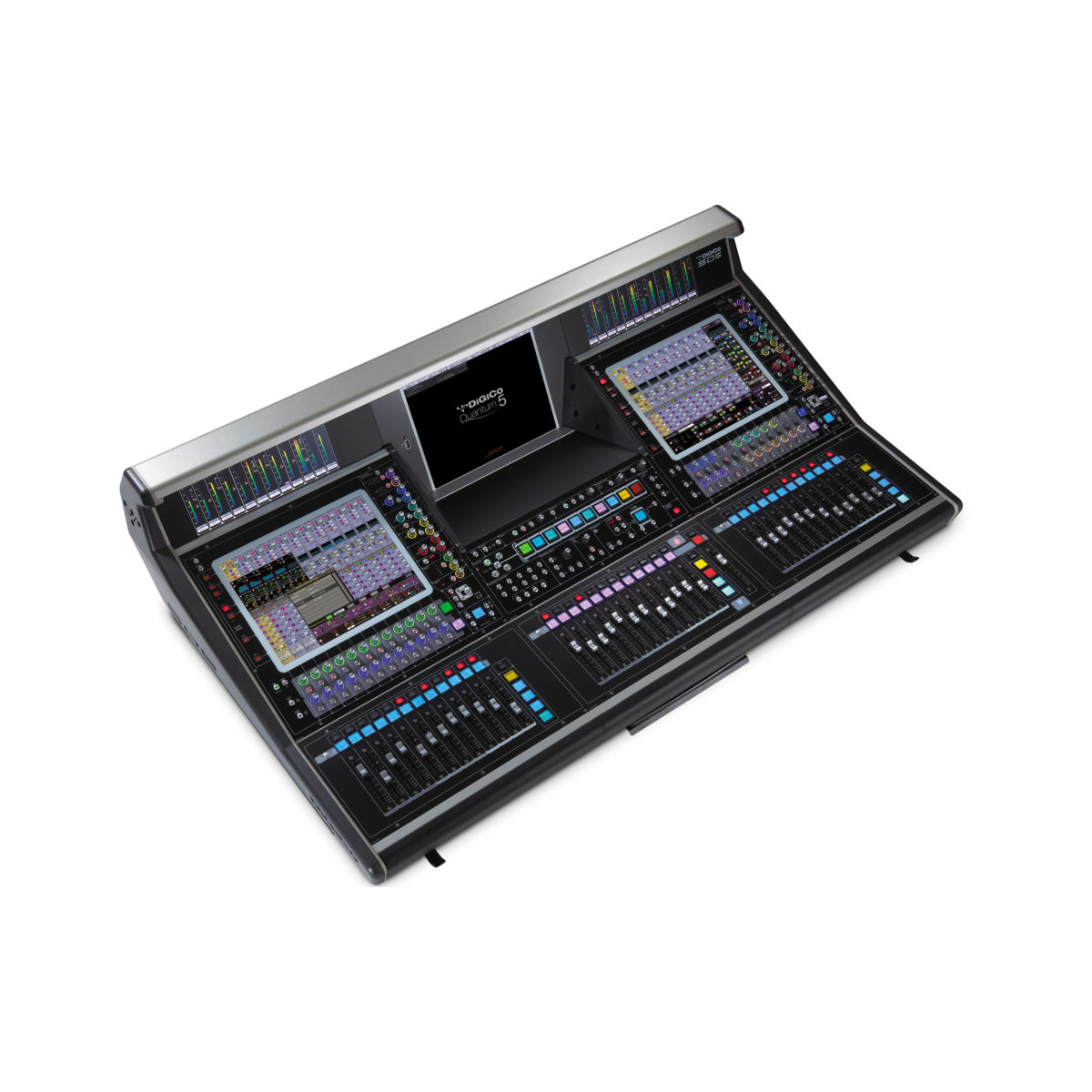

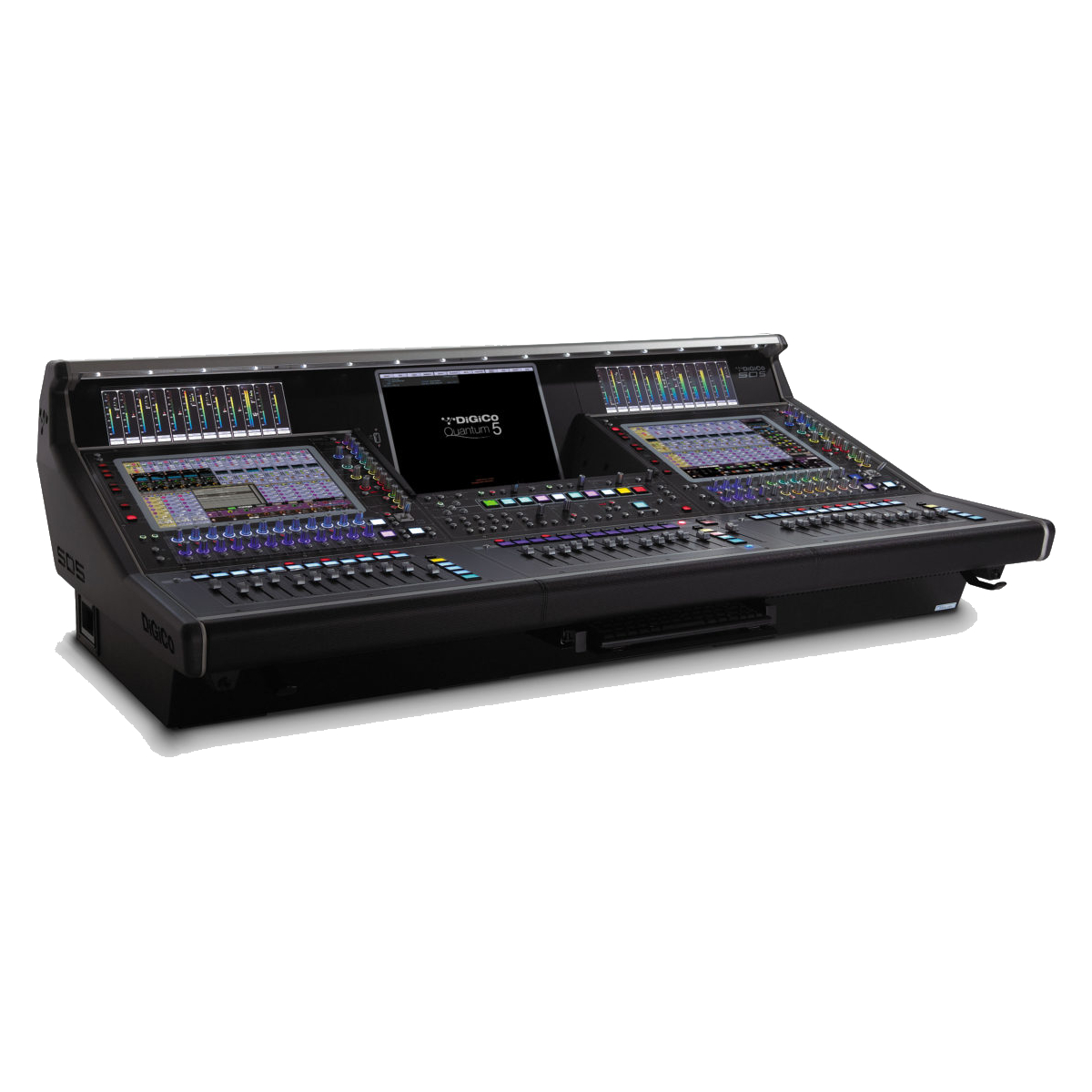

Following on from the huge success of DiGiCo’s flagship Quantum 7, the Quantum 5 engine slots neatly into the existing SD5 frame. With its 37 faders and three 15-inch full colour TFT touchscreens, it provides Quantum processing features, power and connectivity in both new and existing hardware.

The Quantum 5 really does teach an old dog new tricks.

Quantum – The Power of Three

Continuing the legacy of previous Quantum consoles, the Quantum 5 brings you the extraordinary might of three large-scale FPGAs working in unison.

Developed with seventh generation FPGA devices that further expand audio processing power and allows DiGiCo to provide its users with unrivalled flexibility.

Inside the Quantum engine, up to 2,000 channels can be transported across 458 processing paths at 96kHz. New GTX ports run at 6.6GHz while simple two wire connections ensure the fastest possible data speeds to reach a new pinnacle in mixing capability. Fully scalable and designed to communicate seamlessly with the next generation of FPGAs, the Quantum engine is a uniquely formidable platform for an ambitious industry.

Under The Hood

Unlike the SD5, the Quantum 5 has over 450 processing paths at 96kHz. This includes 288 processing channels configurable as up to 256 input channels and up to 128 busses, plus a 36 x 36 matrix. The engine is also equipped with four redundant, or eight individual, MADI ports and two DMI slots (DiGiCo Multi-Channel Interface) for AoIP and other connectivity options from the complete family of DMI card options, plus a built-in Waves port and up to two Optocore loops.

Quantum 5 hosts the world’s most flexible and feature-rich mixing experience right at your very fingertips. Across both inputs and outputs includes Channel Delay, DiGiTube, Single and Multi-Channel Presets, Dual insert points, Hi- and Lo-pass filters at 24dB/octave, four-band parametric EQ (eight on outputs) with band curve selection and Dynamic EQ on each band, DiGiCo’s DYN 1 (Compressor, De-esser or Multiband Compressor) and DYN 2 (Gate, Compressor or Ducker).

Just like our other Quantum consoles, the Quantum 5 includes the legendary Mustard Processing. A fully integrated suite of additional processing that can be assigned to any strip to boost your mix with a range of modelled preamps, vintage dynamics units and EQ sections, all only a touch away.

In addition, 128 busses are assignable as mono/stereo groups or auxiliaries, while a 36×36 output matrix, dual solo busses with True Solo, and a LR/LCR/5.1 Master buss is available for even deeper configurability.

Last but not least, with the inclusion of the now highly regarded Nodal Processing which allows monitor engineers unrivalled creativity on their IEM mixes, and of course True Solo to allow them to hear exactly as their artist does.

Quantum 5 Features

• Nodal Processing which allows monitor engineers unrivalled creativity on their IEM mixes
• True Solo to allow them to hear exactly as their artist does. These are combined with the multiple flavours of 48 channels of Mustard processing and 12 Spice Rack processing slots, including Chilli 6
• Mustard processing which provides a choice of two pre-amp modellers, a four-band EQ (including all-pass filters), four different boutique style compressor models and a gate/ducker. Quantum 5 is equipped with 48 mono Mustard processing strips which can be used on any channel type
• The Spice Rack, meanwhile, supports plugin style native FPGA processing options, allowing you to build a rack of up to twelve insertable processors. The first of these is the Chilli 6 – a six-band multi-band compressor which allows full control of all parameters, including DiGiCo’s unique, patented, release shape control, which means Chilli 6 is perfect for shaping vocals and instruments as well as focusing on problem frequencies

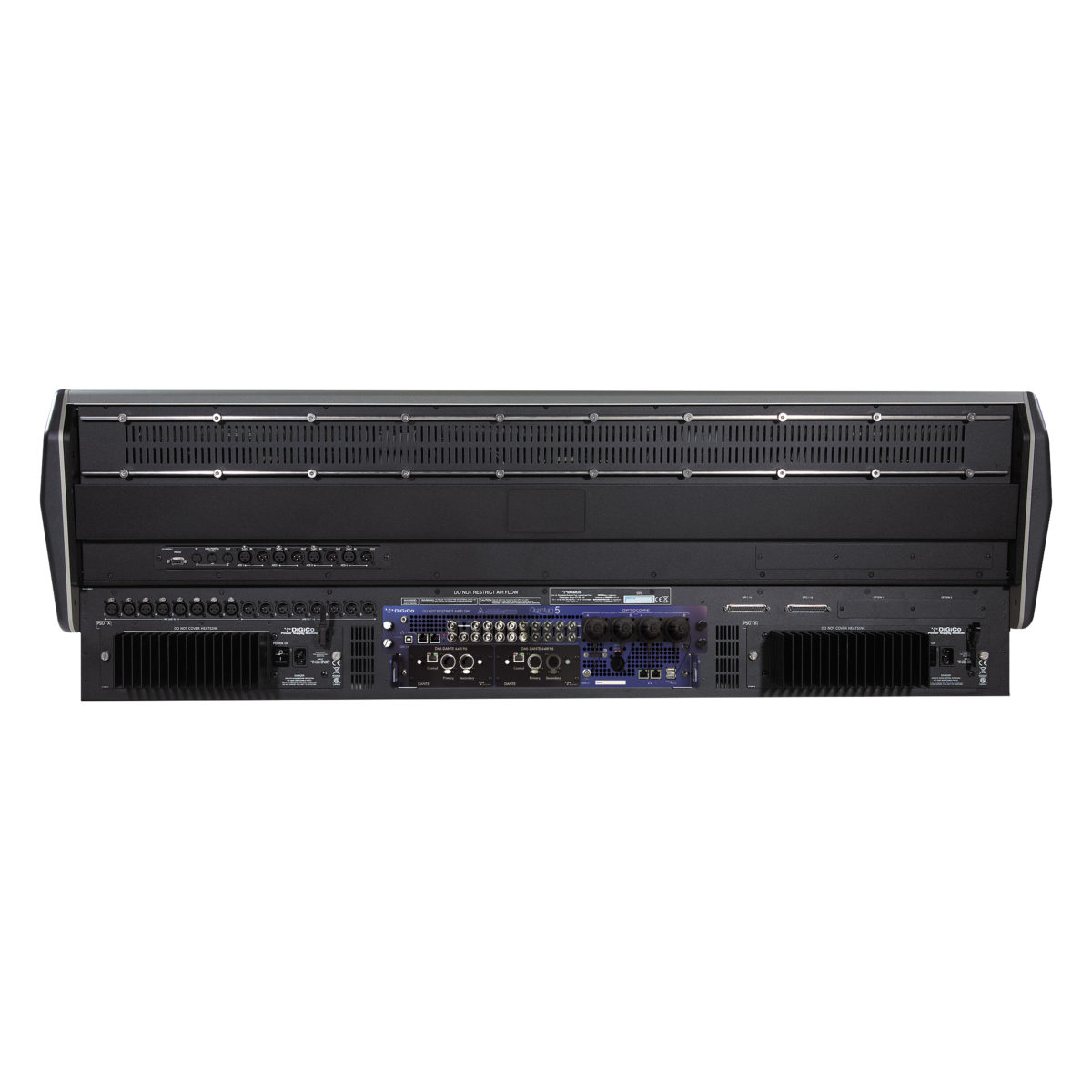

I/O

Local I/O: Quantum 5’s local I/O includes 8 analogue inputs, 8 analogue outputs and 8 AES I/O (mono).

Optocore: The amount of connectivity is very special. Quantum5 comes as standard with one Optocore fibre loop, which is 504 channels of audio; there can be up to 14 DiGiCo racks, or a combination of racks and tie-lines around the loop; and there is an option to upgrade to dual loop, which allows for 1,008 Optocore channels of audio and 28 racks running.

UBMADI: In addition, the engine has a 48-channel UBMADI, so you can connect any laptop via USB and get 48 channels of recording and playback.

DMI: We have also incorporated two dedicated DMI slots to accommodate the growing family of DiGiCo DMI card options. Allowing the console connectivity to be configured for the demand of the tour or event, so you could plug in a Dante module, or the latest automatic mic mixing module. Each dedicated DMI slot provides you with an additional 64 x 64 I/O.

Waves: There is also Waves connectivity if you want to utilise SoundGrid processing, giving you a 64 x 64 additional I/O.

DMI Interface Options

DMI-AMM

This card offers both the SD-Range and the S-Series consoles up to 64 channels of automatic microphone mixing which can be used in any console input channel.

DMI-ADC

This card provides 16 analogue inputs on 2 x 25 way “D” connectors. The ADC card is a line card only. There is no microphone amplifier or phantom power available. There is no gain control function for these inputs (only digital trim). Maximum input level +22dBu.

DMI-AES

This card provides 16 Inputs (8 pairs) and 16 outputs (8 pairs) on 2 x 25 way “D” connectors. All AES inputs are provided with sample rate conversion (SRC) by default. All AES outputs are synchronised to the mixer system clock.

DMI-AVIOM

This card provides 16 output channels at 48kHz (with SRC) and Supports Aviom’s proprietary A-Net Pro16 protocol. It has 1 Ethercon connection and faceplate DIP switched for Stereo output selection.

DMI-DAC

This card provides 16 analogue outputs on 2 x 25 way “D” connectors DAC card is line level only. Maximum output level +22dBu (Digital Full Scale).

DMI-DANTE

This card provides 64 input and 64 output channels at 48KHz and 32 input and 32 output channels at 96KHz. It is provided with Primary and Secondary (backup) Gigabit Ethercon ports for connection to the Dante network.

DMI-MADI-B

This card can be used to connect a Standard MADI stream (64 channels in and out) at 48KHz or 96KHz or an SD Series DiGiCo Rack with the appropriate connector (D2-Rack, SD-Rack, SD-MINIRack).

DMI-MADI-C

This card can be used to connect another DiGiCo device that uses RJ45 Standard MADI (64 channels in and out) at 48KHz or 96KHz or an SD Series DiGiCo Rack with the appropriate connector (D-Rack, D2-Rack).

DMI-ME

This card offers a 40 output interface to Allen & Heath ME-1 or ME-500 Personal Mixers. Multiple personal Mixers can be connected to the DMI ME via the ME-U Hub.

DMI-MIC

This card provides 8 microphone preamp inputs on a 1 x 25 way “D” connector. Each channel has individual, low noise gain control and phantom power. User interface is through a normal channel strip on your console. Maximum input level is +22dBu.

DMI-WAVES

This card will provide 64 input and 64 output channels at 48kHz or 96kHz to the SoundGrid Network with 2 Ethercon ports.

DMI-DANTE64@96

This card provides 64 inputs and 64 outputs to the Dante network at both 48kHz and 96kHz.

DMI-HYDRA 2

This card will provide 56 Input and 56 output channels at 48kHz with Primary and Secondary (backup) optical connections.

DMI-KLANG

This card provides ultra low latency KLANG immersive processing for up to 16 2-channel mixes with 64 inputs at 48kHz or 96kHz.

DMI-AVB

This card provides 64 inputs and 64 outputs to AVB networks at both 48kHz and 96kHz.

Features:

• 256 Input Channels
• 128 Aux / Sub-Group Busses
• LR/LCR/5.1 Master Buss
• 36 x 36 Full Processing Matrix
• 458 Dynamic Equalizers
• 48/96 kHz Sample Rate

To learn more about DIGICO, Click Here
View more products from DIGICO

Brand	DiGiCo
Condition	New
Control Surface	MADI & One Multi-Mode Optics HMA, MADI & One Multi-Mode Optics ST, MADI Only

• Power Requirements 90V-260V, 50-60Hz, 790VA
• Faders 37 x 100mm touch-sensitive, motorised
• Screens 3 x 15" LCD high - resolution touch screens
• Meterbridge 2 x Custom Mounted LCD high-resolution TFT-LCD screens
• Internal PSU x 2
• Processing Channels Up to 330 (combination of Input Channels / Aux / Solo Group Busses)
• Busses Up to 128 Aux / Group busses with full processing Mono / Stereo / LCR / 5.1
• Matrix Up to 36 Input / 36 Outputs with full processing
• Control Groups Up to 36, selectable for VCA-style, Moving fader, Mute Group
• Graphic Eq 32 x 32-band, Gain +/- 12dB
• Internal FX Up to 36 stereo effects comprising 16 floating point reverbs and 32 delay/chorus/pitch/enhancer
• Local I/O 8 x mic/line I/O, 8 x AES I/O
• 8 x MADI interfaces @ 48kHz, 4 redundant interfaces @ 96kHz, BNC connectivity
• Standard Optocore (Dual Loop - Optional)
• Sampling rates 48kHz / 96kHz
• Ext Sync Wordclock, AES, Video, MADI, Optocore
• Quantum 5 Dimensions: 1465mm (w) x 838mm (d) x 458mm (h)
• Quantum 5 Weight: 116Kg / 256lbs
• GPIO: 2 x DSub37
• DMI: 2 x DiGiCo Multichannel Interface
• Waves: Fitted as Standard

Audio Specification:

• Sample Rate: 48kHz or 96kHz
• Processing Delay: 2ms Typical @ 48k (253 Channels, Stage Input Through L-R Buss to Stage Output) 1.1ms @96k
• Internal Processing: Up to 40-bit, Floating Point
• A>D & D>A: 24-bit Converter Bit Depth
• Frequency Response: +/- 0.6dB (20Hz - 20kHz)
• THD: <0.05% @ Unity Gain,: 10dB Input @ 1kHz
• Channel Separation: Better Than 90dB: (40Hz - 15kHz)
• Residual Output Noise: <90dBu Typical (20Hz - 20kHz)
• Microphone Input: Better Than -126dB: Equivalent Noise
• Maximum Output Level: +22dBu
• Maximum Input Level: +22dBu

Input Channel:

• Name: User-Defined / Presets
• Channel Selection: Mono / Stereo / Multi
• Input Routing: Main & Alternate Input
• Analogue Gain: -20 to +60dB
• Phase: Normal / Reverse
• Digital Trim: -40 to +40dB
• Delay: >1 Sec (Coarse & Fine Control)
• DiGiTuBe: Drive 0.01 - 50.0 Bias 0 - 6
• LPF: 20 - 20kHz, 24dB/Oct
• HPF: 20 - 20kHz, 24dB/Oct
• Insert A: (Pre EQ/Dyn) On/Off

Aux / Group / Matrix Output:

• Name: User-Defined / Presets
• Phase: Normal / Reverse
• Digital Trim: -20 to +60dB
• Delay: >1 Sec (Coarse & Fine control)
• DiGiTuBe: Drive 0.01 - 50.0 Bias 0 - 6
• LPF: 20 - 20kHz, 24dB / Oct
• HPF: 20 - 20kHz, 24dB / Oct
• Insert A: (Pre EQ/Dyn) On/Off
