JCF Audio DA8V 8 ch. Digital to Analog Converter

JCF Audio DA8V 8 ch. Digital to Analog Converter

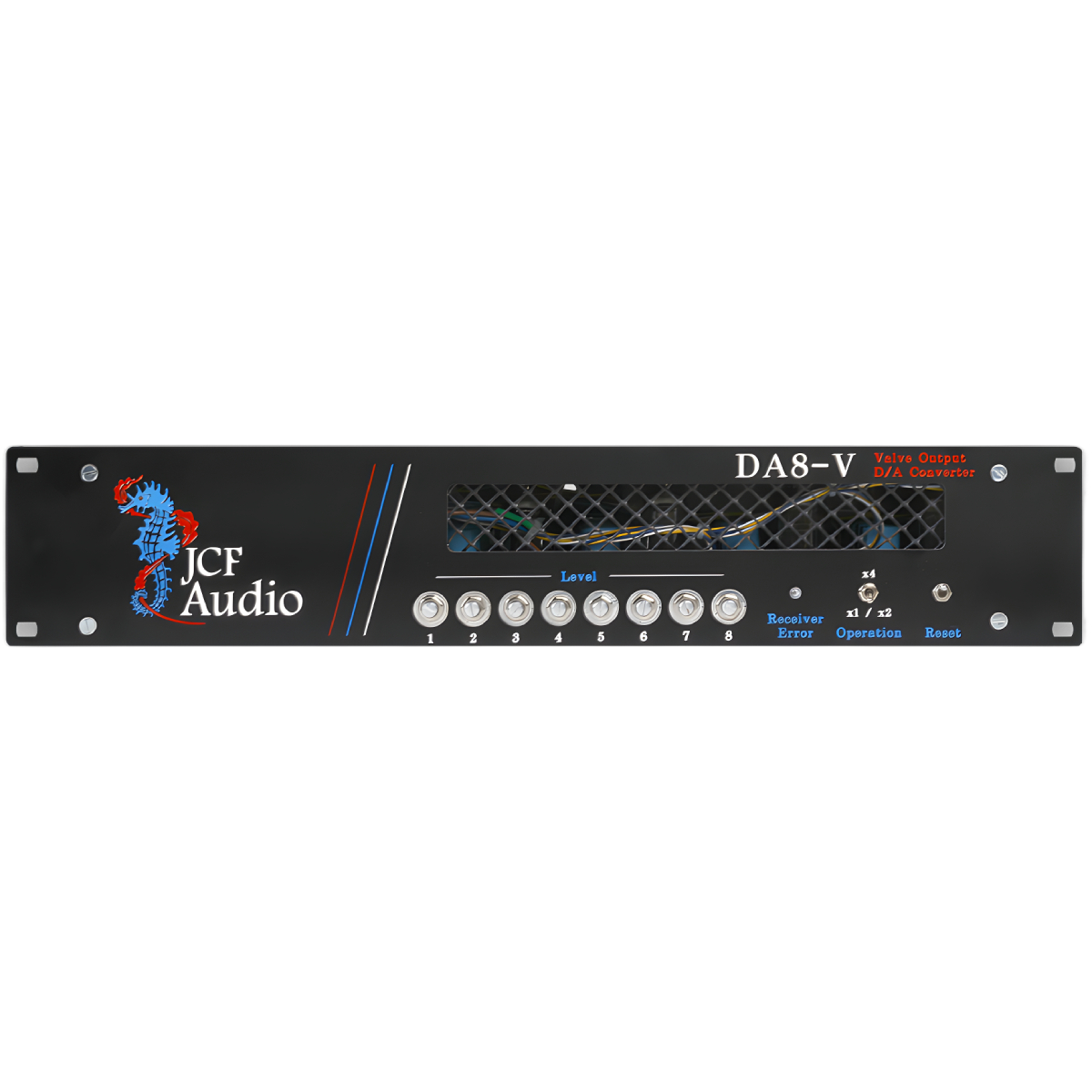

The JCF Audio DA8-V is a Digital to Analog Converter like no other. The DA8-V offers a unique combination of modern digital conversion and vintage analog line circuitry to provide a multi-channel output solution of irreproachable quality. Its robust design and top-notch Cinemag CM9600-T output iron gives the DA8-V an effortless clarity unsurpassed among converters. As the picture suggests, the DA8-V yields a sound that must be weighed to be believed.

Features:

– 351 inspired output stage
– Simple self-clocking operation @ all frequencies
– 1 additional courtesy turn-around DB25 AES port
– ~20dB front panel calibration range control
– Sensible output stage current for good performance and long tube life
– Cinemag CM9600-T output transformer
– Uses common tubes 12AX7, 12AU7
– Ships with 5′ standard AES crossover cable

Condition	New
Brand	JCF Audio

Number of Channels: 8

Digital Input: 110 Ohm transformer coupled AES/EBU compatible Single-Wire Operation Only

Output Impedance: < 40 Ohms

Minimum Recommended Load: 600 Ohms or greater

Maximum Output Level: +32dBu rms

Distortion: <.01% @ +4dBu, 0.025 % @ +28dBu

Noise: -70dBu (BW lim 80kHz)

Power Supplies: 2 external (1 analog, 1 digital) ~100W idle cons.

Tube Compliment: 8 x 12AX7 – 8 x 12AU7 – 1 x 5R4

Download Brochure for JCF Audio The DA8V 8 ch. Digital to Analog Converter
