RCF NX12-SMA Active Coaxial Stage Monitor

RCF NX12-SMA Active Coaxial Stage Monitor

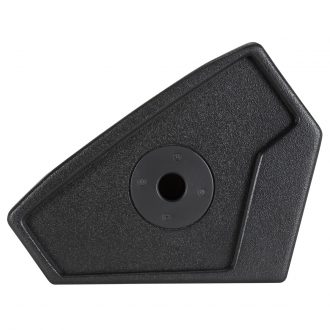

The RCF NX12-SMA Active Coaxial Stage Monitor is equipped with new high power 700 W digital amplifier and a newly designed 12” coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system. The NX 12-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes: – Floor, for stage monitoring; – Free Field, for the use of the speakers as a stand-alone PA system. Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for an easier transport of the speaker.

Features:

• 1400 Watt Peak, 700 Watt RMS digital bi-amplification
• 129 dB max spl
• 60° x 60° constant directivity horn
• 12″ High power neodymium woofer, 2.5″ voice coil
• 1.7″ kapton dome, 1″ exit, neodymium high frequency driver
• DSP processing, floor – fre field equalization, soft limiter and protection
• Combo xlr/jack input, xlr signal output

For more info on RCF visit https://www.rcf.it

• Frequency Response: 50 Hz ÷ 20000 Hz
• Max Spl @ 1M: 129 dB
• Horizontal Coverage Angle: 60°
• Vertical Coverage Angle: 60°

• Compression Driver: Coaxial 1.0'' neo, 1.75'' v.c
• Woofer: Coaxial 15'' neo, 2.5'' v.c

• Input Signal: bal/unbal
• Input Connectors: XRL, Jack
• Output Connectors: XLR
• Input Sensitivity: +4 dBu

• Crossover Frequencies: 1700 Hz
• Protections: RMS, HF
• Limiter: Soft Limiter
• Controls: Freefield, floor

• Total Power: 1400 W Peak, 700 W RMS
• High Frequencies: 400 W Peak, 200 W RMS
• Low Frequencies: 1000 W Peak, 500 W RMS
• Cooling: Convection
• Connections: Powercon IN/OUT

• CE Marking: Yes

• Cabinet/Case Material: Baltic birch plywood
• Handles: 1 on side
• Pole Mount/Cap: Yes
• Grille: Steel
• Color: Black

• Package Height: 604 mm / 23.78 inches
• Package Width: 504 mm / 19.84 inches
• Package Depth: 404 mm / 15.91 inches
• Package Weight: 20.2 kg / 44.53 lbs
