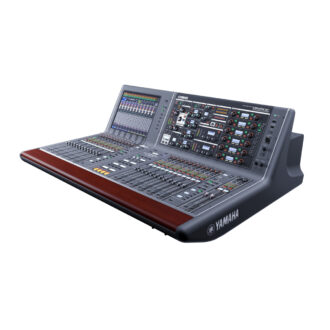

Yamaha CS-R10-S 26-Fader Control Surface Rivage PM10 System with One Touch Panel

Yamaha CS-R10-S 26-Fader Control Surface Rivage PM10 System with One Touch Panel

The control surface with single large touch panel display and 26 faders enables you to perform general operation on the RIVAGE PM10 system. A CS-R10-S can be added to a RIVAGE PM system to provide dual-console control and flexibility. Dual power supply units are built in for high reliability.

To learn more about yamaha, Click Here
View more products from yamaha

• Display: 15" touch panel x 1
• Faders: 26 (12+12+2)
• Selected Channel section: comprehensive channel parameters
• Custom Fader banks: 6 x 5 on each bay
• User Defined keys: 12 x 4 banks
• User Defined knobs: 4 x 4 banks
• Touch and Turn knobs: 1
• Analog I/O: 8 in / 8 out
• Slot: 2 MY slots
• AES/EBU: 8 in / 8 out (with SRC)
• Ports: GPI (8 in / 8 out), Word Clock Out, MIDI In/Out, 5 USB (1 for 2-track recording), Video Out (DVI-D)
• Power supply: dual redundant power supply built-in
• Power consumption: 380W
• Dimensions (WxHxD): 1,128 x 417 x 848mm (44.4" x 16.4" x 33.4")
• Net Weight: 67 kg (147.7 lbs)
