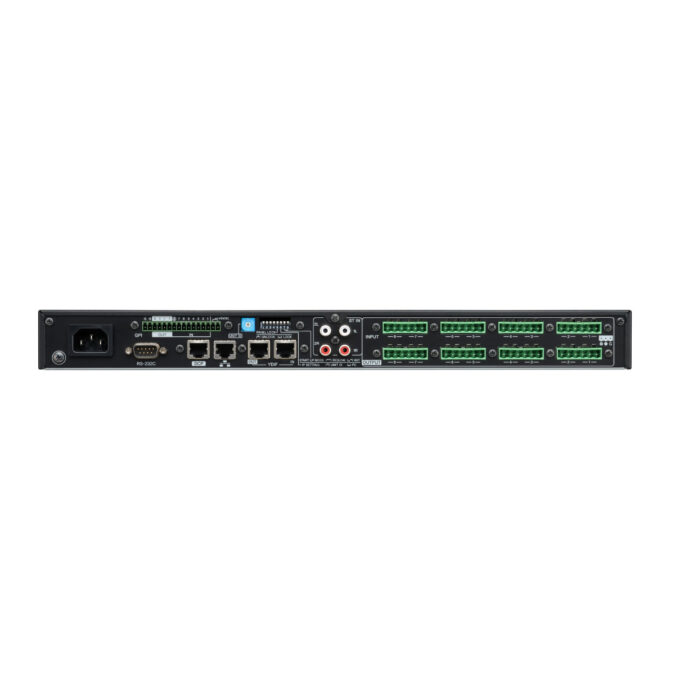

Yamaha MTX3 26 x 8 Matrix Signal Processor
Yamaha MTX3 26 x 8 Matrix Signal Processor
Yamaha MTX3 26 x 8 Matrix Signal Processor
Yamaha MTX3 26 x 8 Matrix Signal Processor
Yamaha MTX3 26 x 8 Matrix Signal Processor
Yamaha MTX3 26 x 8 Matrix Signal Processor

Yamaha MTX3 26 x 8 Matrix Signal Processor

$1,599.99

The MTX-MRX Editor design process is a logical step-by-step analog of the physical installation workflow.

Please check with us about availability

Yamaha MTX3 26 x 8 Matrix Signal Processor
Yamaha MTX3 26 x 8 Matrix Signal Processor

$1,599.99

Product Enquiry

Questions? Ask us!

Add to Wishlist
Request a Shipping Quote
Description

Yamaha MTX3 26 x 8 Matrix Signal Processor

The Heart of Your Sound Solution

Designed primarily for multi-zone commercial installations, MTX Series matrix processors are equipped with flexible processing functions that are essential to a wide variety of applications such as retail stores, restaurant/bars or banquet rooms. Responsible for the primary processing functions at the heart of your system’s design, MTX processors allow you to configure, program, and manage your entire sound solution via the intuitive interface of the accompanying MTX Editor software application. The series is comprised of two models with varying DSP capacities and expansion capabilities, allowing MTX processors to meet the demands of a truly impressive range of commercial environments.

An Intuitive Graphical Interface for Sound System Design

The MTX-MRX Editor design process is a logical step-by-step analog of the physical installation workflow.

  • Device layout wizard
  • Functional setup
  • External controller setup

Features:

  • 8ch mic/line input and 8ch analog output
  • 16ch YDIF digital I/O
  • SD Card Slot for playback
<h2>Yamaha MTX3 26 x 8 Matrix Signal Processor</h2>
<h3>The Heart of Your Sound Solution</h3>
<p>Designed primarily for multi-zone commercial installations, MTX Series matrix processors are equipped with flexible processing functions that are essential to a wide variety of applications such as retail stores, restaurant/bars or banquet rooms. Responsible for the primary processing functions at the heart of your system’s design, MTX processors allow you to configure, program, and manage your entire sound solution via the intuitive interface of the accompanying MTX Editor software application. The series is comprised of two models with varying DSP capacities and expansion capabilities, allowing MTX processors to meet the demands of a truly impressive range of commercial environments.</p>
<h3>An Intuitive Graphical Interface for Sound System Design</h3>
<p>The MTX-MRX Editor design process is a logical step-by-step analog of the physical installation workflow.</p>
<ul>
<li>Device layout wizard</li>
<li>Functional setup</li>
<li>External controller setup</li>
</ul>
<h3>Features:</h3>
<ul>
<li>8ch mic/line input and 8ch analog output</li>
<li>16ch YDIF digital I/O</li>
<li>SD Card Slot for playback</li>
</ul>
Additional information
Brand

Yamaha
Condition

New
Technical Specifications:

General Specifications:

  • Internal Processing: Priority Ducking, Ambient Noise Compensator
  • Sampling Frequency Rate:
    • Internal: 48kHz/44.1kHz
  • Signal Delay: Less than 2.5ms (AD-DA @48kHz)
  • Total Harmonic Distortion: Less than 0.05% (+4dBu, Gain:-6dB), Less than 0.1% (+4dBu, Gain:+66dB)
  • Frequency Response: 20Hz to 20kHz, +0.5dB, -1.5dB
  • Dynamic Range: 107dB (Gain:-6dB)
  • Hum & Noise Level:
    • Equivalent input: noise -60dBu (Gain: +66dB), -83dBu (Gain: -6dB)
  • Crosstalk: -100dB
  • Heat Dissipation: 43kcal/h max
  • Power Requirements: AC100V-240V 50Hz/60Hz
  • Power Consumption: 50W
  • Dimensions:
    • W: 480mm (18.9")
    • H: 44mm (1.7")
    • D: 362mm (14.3")
  • Net Weight: 4.8kg (10.6lbs)

Outline:

  • Mixing capability:
    • Mixing Channels: 8 Mono + 3 Stereo + 2 Effect Return + 8 Direct-in to Matrix
    • Output Busses: 8 Mono
    • Input Channel Functions:
      • Mono CH: 3-band PEQ, Comp, Gate, Auto Gain Control, Feedback suppressor (only available in ch 1-4)
      • Stereo CH: 3-band PEQ, Comp, Auto Gain Control
    • Output Channel Functions: Room Delay, Room EQ, Speaker Processor, X-Over (1way, 2way), Delay, 6-band PEQ, Limiter
  • I/O Phantom Power: +48V
