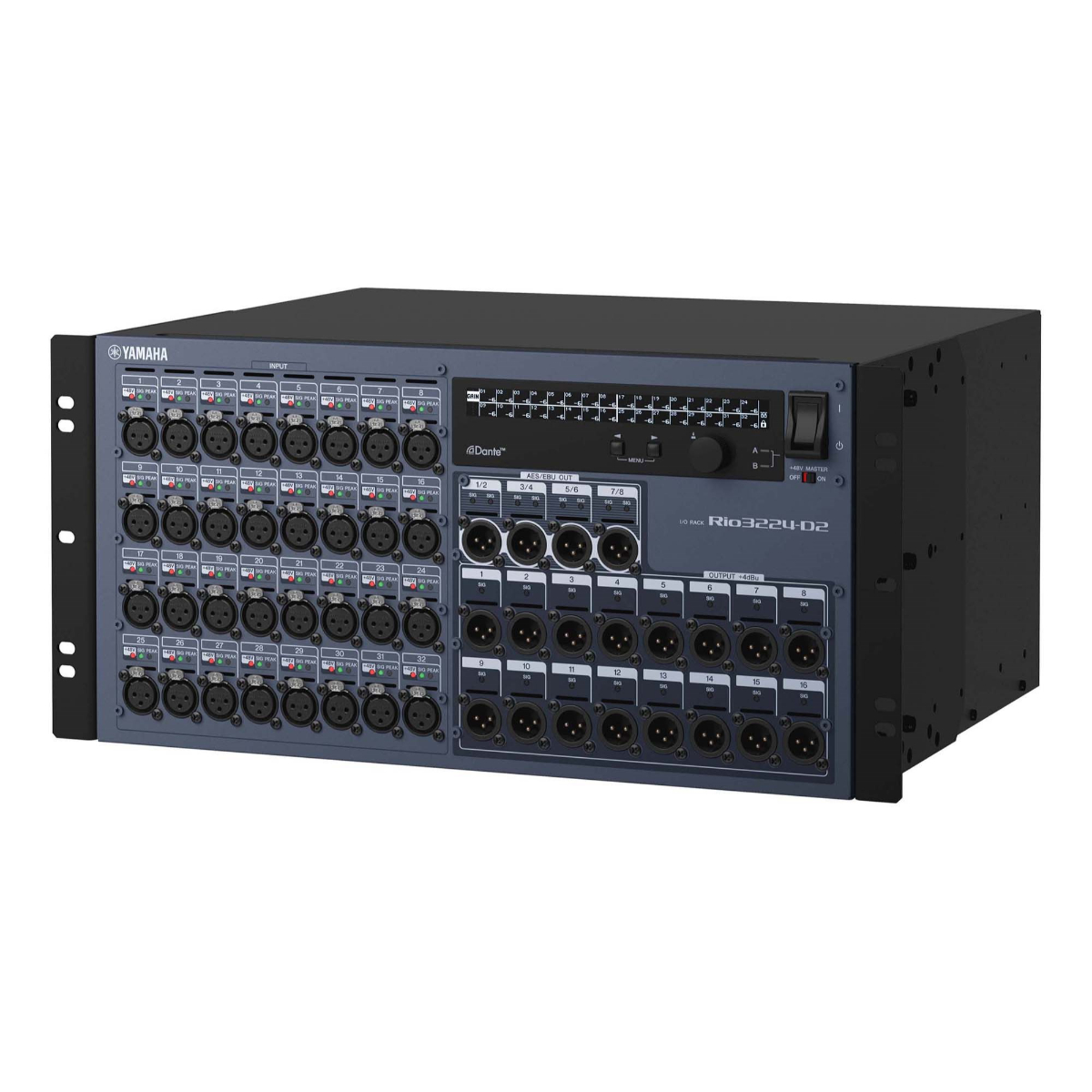

The Yamaha Rio3224-D2 are high-performance I/O Rack units with built-in Dante audio networking. Designed and manufactured to achieve outstanding sonic transparency in keeping with Yamaha’s “natural sound” philosophy, they play a vital role in supporting the performance capabilities of the associated console, offer extensive freedom for placement and multi-unit combinations, and allow redundancy for high reliability. The Rio3224-D2 are not only standard components of the RIVAGE PM7 Digital Mixing System, but are also fully compatible with CL and QL series digital mixing consoles, offering excellent audio and operational performance that makes the most of Dante networking potential.

This high-capacity, high-performance I/O rack is compatible with Yamaha CL and QL series consoles as well as the RIVAGE PM series. It features 32 analog inputs, 16 analog outputs, and eight digital AES/EBU outputs. The Rio3224-D2 connects directly to Dante digital audio networks, allowing flexible system configuration. Dual power supply units are built in for high reliability, and a character/graphic display offers easy visual confirmation.

Features:

• 32 analog inputs and 16 outputs, and 8 digital outputs
• Redundant connections are supported with primary and secondary connectors. Daisy chain connections are also supported
• Comprehensive display and local control of gain and other parameters
• Dual power supply units are built in for high reliability
• Power consumption: 120W

To learn more about yamaha, Click Here
View more products from yamaha

General Specifications

• Sampling Frequency Rate:
• External: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, +4.1667%, +0.1%, -0.1%, -4.0% (±200 ppm)
• Signal Delay: Less than 1.7 ms, Rio INPUT to Rio OUTPUT connect with PM10 using Dante, Fs= 96 kHz, Dante Receive Latency set to 0.25 msec
• Total Harmonic Distortion:
• Less than 0.05% 20 Hz-20 kHz @ +4 dBu into 600Ω, Fs= 48 kHz
• Less than 0.05% 20 Hz-40 kHz @ +4 dBu into 600Ω, Fs= 96 kHz, INPUT to OUTPUT, Input Gain= Min.
• Frequency Response:
• +0.5, -1.5 dB 20 Hz-20 kHz, refer to +4 dBu output @ 1 kHz, INPUT to OUTPUT, Fs= 48 kHz
• +0.5, -1.5 dB 20 Hz-40 kHz, refer to +4 dBu output @ 1 kHz, INPUT to OUTPUT, Fs= 96 kHz
• Dynamic Range: 112 dB typ., DA Converter, 108 dB typ., INPUT to OUTPUT, Input Gain= Min.
• Hum & Noise Level:
• Equivalent Input Noise: -128 dBu typ., Input Gain= Max.
• Residual Output Noise: -88 dBu, ST master off
• Crosstalk: -100 dB, adjacent INPUT/OUTPUT channels, Input Gain = -6 dB, @1 kHz *Measured with a 30 dB/octave filter @22 kHz
• Power Requirements: 100-240V, 50/60Hz
• Power Consumption: 120W
• Dimensions:
• W: 480 mm (18.9")
• H: 220 mm (8.7")
• D: 368 mm (14.5")
• Net Weight: 13.5 kg (29.8 lbs)
• Accessories: Owner's Manual, AC power cord (250 cm)
