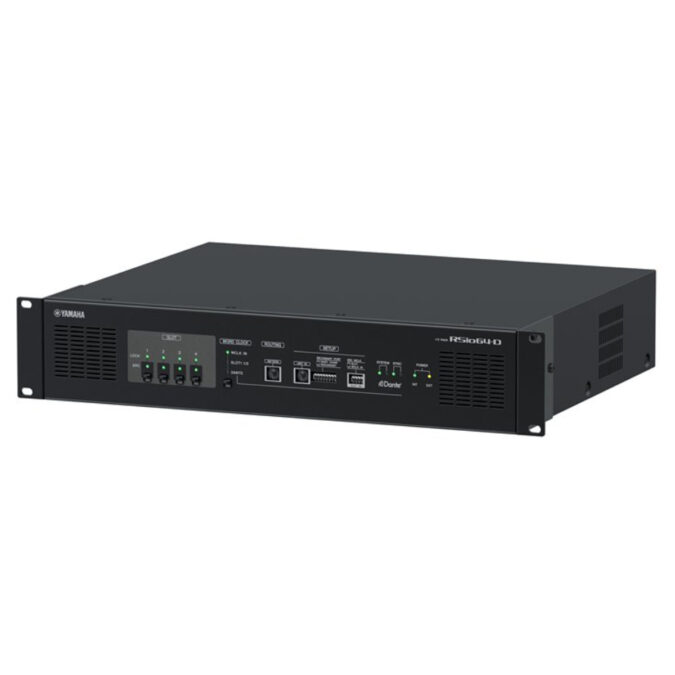

Yamaha RSIO64-D Card Dante Audio Interface

Yamaha RSIO64-D Card Dante Audio Interface

The RSio64-D is an audio interface that can convert between Dante and Mini-YGDAI formats for up to 64 inputs and 64 outputs

The Extensive Mini-YGDAI Card Lineup on a Dante Network

The RSio64-D, the latest addition to the R series, is an audio interface that can convert between Dante and Mini-YGDAI formats for up to 64 inputs and 64 outputs; and also provides versatile routing capability. Four Mini-YGDAI card slots allow cards for a wide variety of input/output formats as well as processing functions to be connected to a Dante network for live sound, broadcast, recording, post production, and other applications. The RSio64-D also supports remote setup from CL and QL series consoles.

To learn more about yamaha, Click Here
View more products from yamaha

General Specifications:

• Model: RSio64-D
• Sampling Frequency Rate (External):
  • 44.1kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
  • 48kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
  • 88.2kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
  • 96kHz: +4.1667%, +0.1%, -0.1%, -4.0% (±200ppm)
• SRC: SRC Lock Range: 39.7 kHz – 101.7 kHz, Sample Rate Ratio Limit: 1:2.6 to 2.6:1
• Power Requirements: 100-240 V 50/60 Hz
• Power Consumption: 60 W
• Dimensions:
  • W: 480mm
  • H: 88mm
  • D: 365mm
• Net Weight: 6.1kg
• Accessories: Owner’s Manual, AC power cord
• Options: PA-700 (AC adaptor)
• Others:
  • Operating Temperature Range: 0 - 40°C
  • Storage Temperature Range: -20 - 60°C
